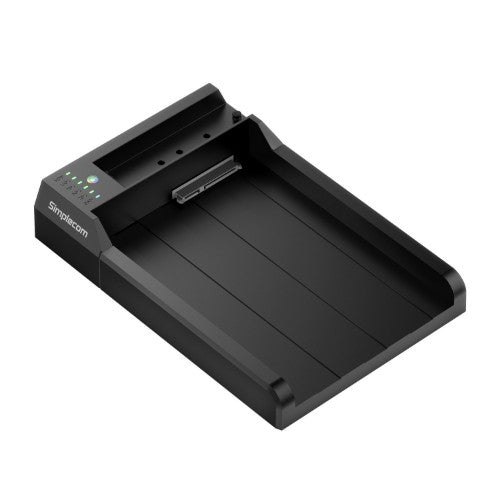

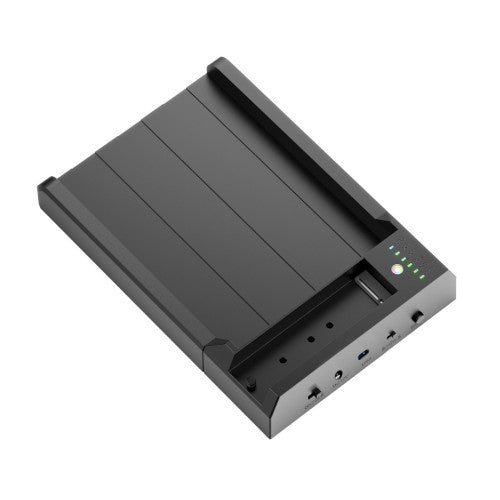

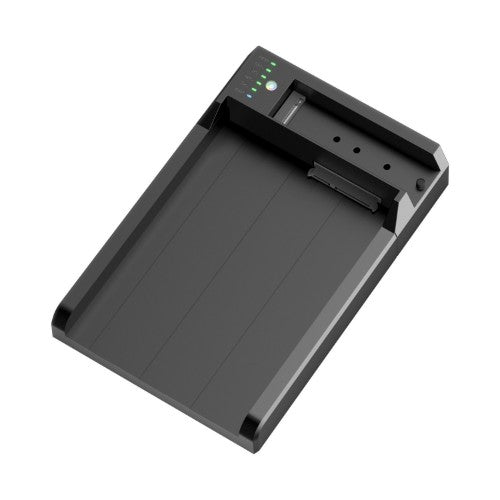

Simplecom SD570 storage drive docking station USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

NVMe M.2 + SATA HDD and SSD Dual Bay Docking Station USB 3.2 Gen 2 10Gbps Offline Clone

Key Features

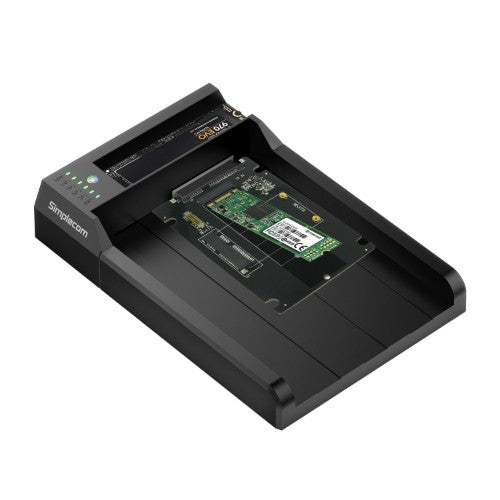

• One M.2 slot for NVMe M.2 SSD

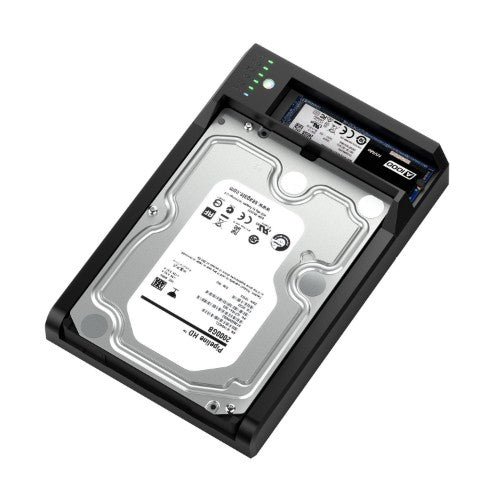

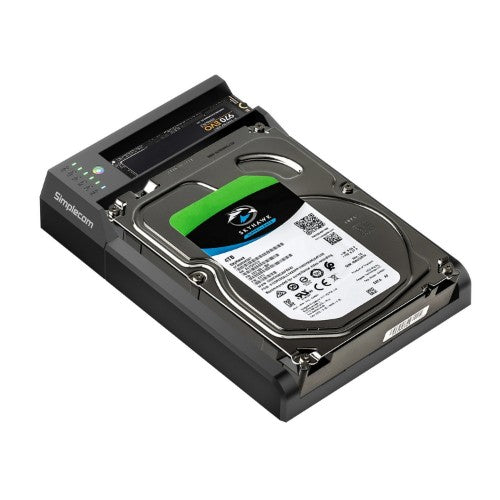

• One SATA slot for 3.5" or 2.5" SATA HDD/SSD
• USB 3.2 Gen2 interface support up to 10Gbps data transfer rate
• Support multi-LUN (logical unit number), each slot has a separate drive letter
• Access data from NVMe M.2 and SATA slots simultaneously
• Support offline clone, standalone duplicating without host computer
• Clone direction switch allows two-way clone between NVMe M.2 and SATA drives
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no additional driver software required

Description

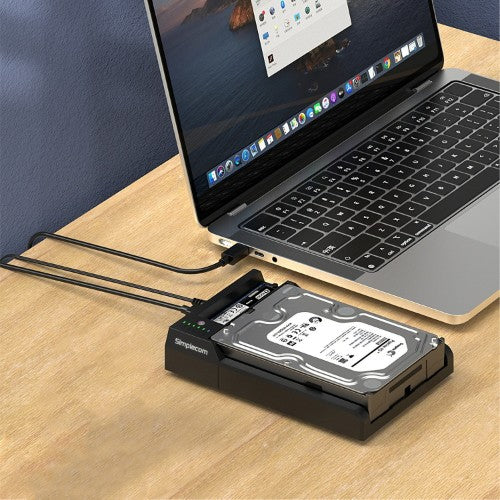

SD570 is an all-in-one USB docking station that supports both NVMe M.2 and SATA drives. The M.2 slot supports NVMe SSD, and SATA slot support 3.5" or 2.5" SATA HDD/SSD. USB 3.2 Gen 2 interface support up to 10Gbps data transfer rate and can be easily attached to computer USB-C port. SD570 is designed for easy and fast access to NVMe M.2 and SATA HDD/SSD. With multi-LUN (logical unit number) support, it will show two separate drive letters for NVMe M.2 and SATA slots, so you can access data from NVMe M.2 and SATA drive simultaneously, and copy files from one drive to another easily. Save and tidy your desktop space, SD570 is a perfect all-in-one device for NVMe M.2 and SATA drives, so you don’t need separate devices to read different types of SSD or HDD. In addition, SATA M.2 and mSATA SSDs also can be supported with an optional SATA to M.2 and mSATA adapter. It also can be used as a standalone duplicator dock when not connecting USB to a computer. It has a clone direction switch that allows two-way clone between NVMe M.2 and SATA drives. Ideal for data backup and migration, this docking station provides a simple and fast solution for backup data, batch processing data, formatting, file transfers, data recovery, and more.

Specifications

Hard drive
Storage media type	HDD, SSD
Storage drive interface	Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of storage drives supported	2
Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Technical details
Maximum data transfer rate	10 Gbit/s
Product colour	Black
Plug and Play	Yes
TRIM support	Yes
Features
Maximum data transfer rate	10 Gbit/s
LED indicators	Activity, Power
Product colour	Black
Plug and Play	Yes
TRIM support	Yes
Power
Output voltage	12 V
Output current	3 A
Weight & dimensions
Width	122 mm
Depth	181 mm
Height	34 mm
Indication
LED indicators	Activity, Power
Software
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Ethernet LAN features
LED indicators	Activity, Power
Packaging content
AC adapter included	Yes
Cables included	USB Type-C to USB Type-C
Manual	Yes
