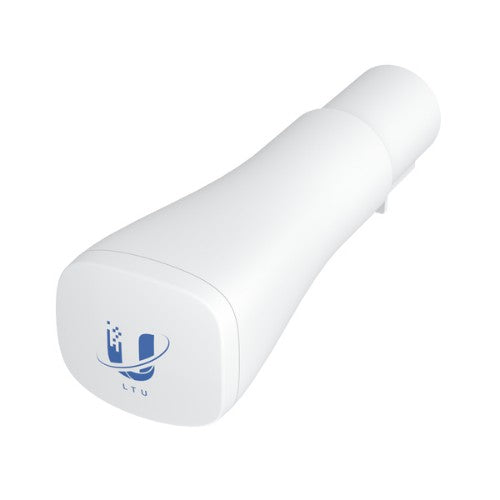

Ubiquiti LTU Instant 5 White Power over Ethernet (PoE)

LTU, 5.15 - 5.95 GHz, 22 dBm, 550 Mbps, 8.5 W, airOS

Key Features

• Proprietary Ubiquiti LTU core processor
• 22 dBi high-gain antenna with InnerFeed technology
• Easily integrates with LBE 5AC Gen 2 deployments
• Channel width flexibility (10/20/30/40/50/60/80/100 MHz* bandwidth)
• Configuration management from the AP side
• Router mode support
• Frequency splitting
• Quick, Bluetooth-powered setup via the UISP Mobile app
• Includes (5) feeds and (5) PoE adapters

Description

5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.
The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 900+ Mbps* of real TCP/IP throughput with its 22 dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.

Specifications

Performance
2.4 GHz	No
5 GHz	Yes
Frequency band	5.15 - 5.95 GHz
Web-based management	Yes
Channel bandwidth	100 MHz
Certification	IC
Operating system installed	AirOS
Built-in processor	Yes
Features
6 GHz	No
2.4 GHz	No
5 GHz	Yes
Frequency band	5.15 - 5.95 GHz
Channel bandwidth	100 MHz
Bluetooth	Yes
Throughput data rate	550 Mbit/s
Uplink/downlink ratio	25/75, 33/67, 50/50
Isolation	20 dB
Operating system installed	AirOS
Built-in processor	Yes
Security
Security algorithms	WPA2-PSK
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	8.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
DC voltage range	22 - 26 V
Design
International Protection (IP) code	IPX6
Housing material	Polycarbonate (PC)
LED indicators	Network, Power
Product colour	White
Certification	IC
Antenna
Antenna gain level (max)	22 dBi
Antenna connector type	RF
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Certificates
Certification	IC
Compliance certificates	CE, Federal Communications Commission (FCC)
Weight & dimensions
Width	64.2 mm
Depth	201.5 mm
Height	56.1 mm
Weight	215 g
Antenna width	35.8 cm
Antenna weight	890 g
Antenna height	28.9 cm
Antenna depth	27.2 cm
Packaging data
Quick start guide	Yes
PoE adapter included	Yes
Packaging content
Quick start guide	Yes
PoE adapter included	Yes
Quantity per pack	5 pc(s)
Antenna included	Yes
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Sustainability
Sustainability compliance	Yes
Logistics data
Quantity per pack	5 pc(s)
