Ubiquiti
Ubiquiti Unifi 6 In-Wall 4800 Mbit/s White Power over Ethernet (PoE)
Regular price
$465.33 AUD
Regular price
Sale price
$465.33 AUD
Unit price
per
Use the contact form below to check availability.
WiFi, RJ4, Ethernet, Bluetooth, PoE in/out, 139.66 x 96 x 31.19 mm, 460 g
SKU: U6-IW
Description: Wall-mounted WiFi 6 access point with a built-in PoE switch.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•115 m² (1,250 ft²) coverage
•300+ connected devices
•WiFi 6 (4x4 MIMO)
•Powered using PoE*
Key Features
- WiFi 6 support (2.4/5 GHz bands)
- 5.3 Gbps aggregate throughput rate
- (1) GbE RJ45 port (PoE In)

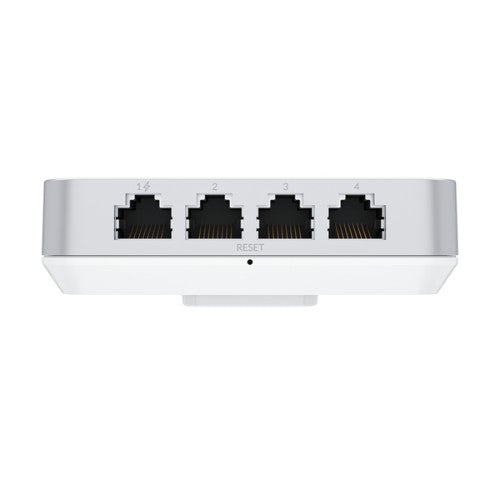

- (4) GbE RJ45 ports, including one that supports PoE output
Description
Ubiquiti U6 In-WallSKU: U6-IW
Description: Wall-mounted WiFi 6 access point with a built-in PoE switch.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•115 m² (1,250 ft²) coverage
•300+ connected devices
•WiFi 6 (4x4 MIMO)
•Powered using PoE*
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| VLAN support | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Certification | CE, FCC, IC |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Bluetooth | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Security | |
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Protocols | |
| Supported network protocols | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.1Q |
| Ports & interfaces | |
| Internal RJ-45 ports quantity | 4 |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
| Power consumption (max) | 15.4 W |
| Power consumption (typical) | 13.5 W |
| Input current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Design | |
| Placement | Wall |
| Housing material | Aluminium, Plastic |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC, IC |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5.9 dBi |
| Certificates | |
| Certification | CE, FCC, IC |
| Software | |
| Dynamic Frequency Selection (DFS) | Yes |
| Weight & dimensions | |
| Width | 96 mm |
| Depth | 31.2 mm |
| Height | 139.7 mm |
| Weight | 460 g |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
