DeepCool AG400 ARGB Processor Air cooler 12 cm Black, Metallic 1 pc(s)

Intel LGA1700/1200/1151/1150/1155, AMD AM5/AM4, 500-2000 RPM, 31.6 dB(A), 75.89 CFM

Description

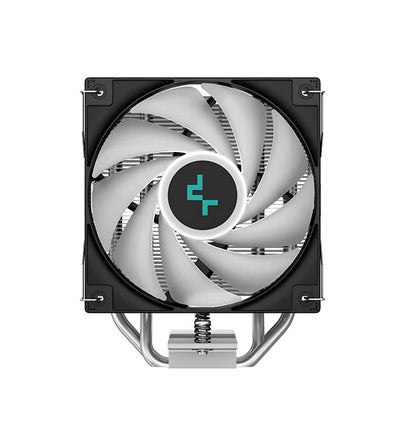

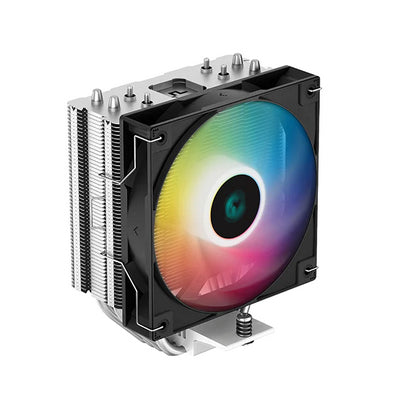

The DeepCool AG400 ARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.

Stellar Thermal Performance

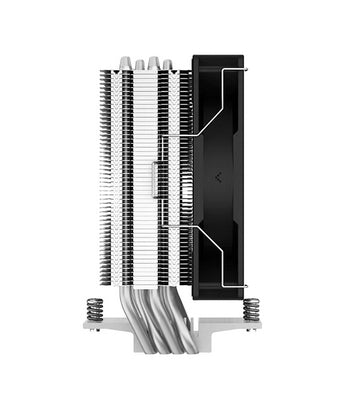

Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.


FAN LOCK MOUNTING SYSTEM
When installing the AG400 ARGB, the fan does not need to be disassembled during the process, simplifying and saving time.


Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

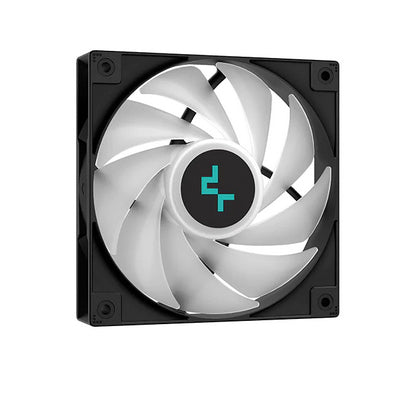

High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.


Simple and Secure

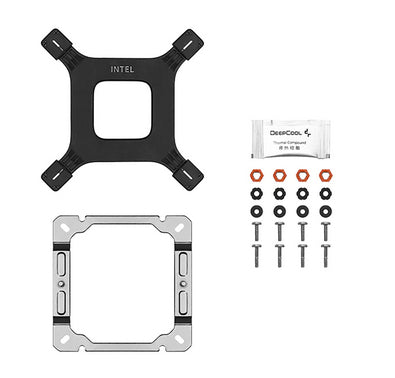

The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	Air cooler
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Bearing type	Hydraulic
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Noise level (high speed)	31.6 dB
Maximum air pressure	2.53 mmH2O
Thermal Design Power (TDP)	220 W
Number of heat pipes	7
Number of fans	1 fan(s)
Heat pipes diameter	6 mm
Quantity per pack	1 pc(s)
Number of fan blades	9
Design
Fan connector	4-pin
Number of heat pipes	7
Number of fans	1 fan(s)
Illumination colour	Blue, Green, Red
Product colour	Black, Metallic
Illumination LED	Yes
Number of fan blades	9
LED connector type	3-pin
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Thermal Design Power (TDP)	220 W
Rated current	0.28 A
LED voltage	5 V
Fan power consumption	3.36 W
Weight & dimensions
Width	125 mm
Depth	92 mm
Height	150 mm
Weight	614 g
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Heat pipes diameter	6 mm
Radiator width	12 cm
Radiator depth	9.5 cm
Radiator height	15 cm
Technical details
Fan connector	4-pin
Illumination LED	Yes
Packaging data
Package type	Box
Packaging content
Package type	Box
Mounting kit	Yes
Other features
LED voltage	5 V
