TP-LINK

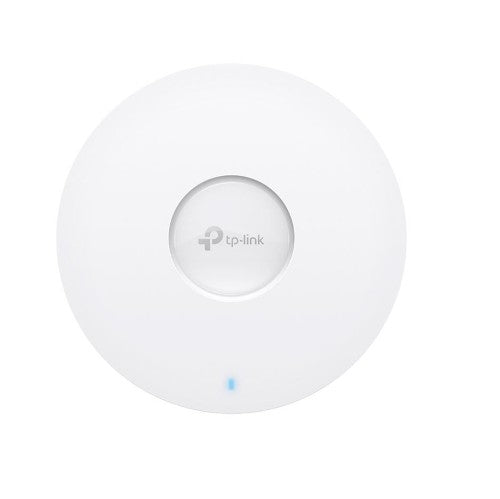

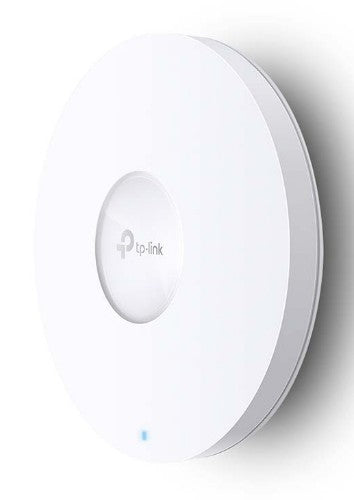

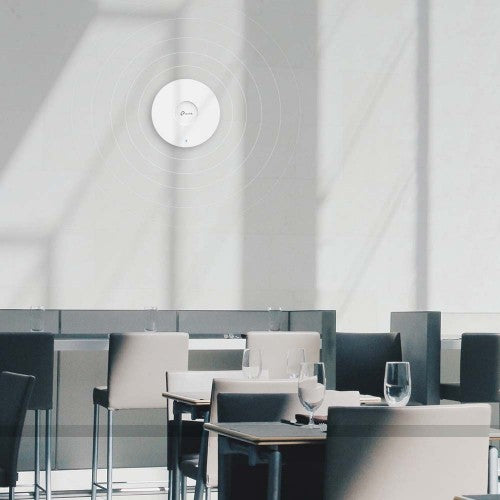

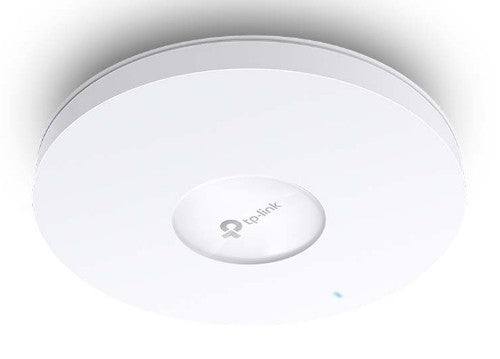

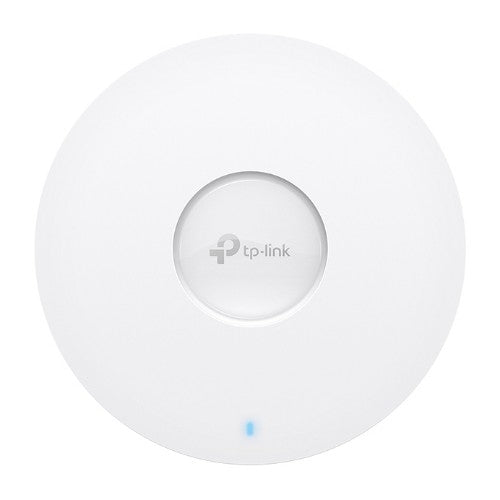

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
Regular price
$150.24 AUD
Regular price
Sale price
$150.24 AUD
Unit price
per
Use the contact form below to check availability.
2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 802.11ax/ac/n/g/b/a, 1x Gigabit Ethernet (RJ-45), 160 x 160 x 33.6 mm
AX1800 Ceiling Mount WiFi 6 Access Point
AX1800 WiFi 6 Speed
574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz†
Seamless Roaming
Uninterrupted streaming when moving between APs§
Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Omada Mesh Technology
More flexible and convenient wireless deployment
Gigabit Wired Performance
Boosts overall throughput with a Gigabit Ethernet port
Centralized Cloud Management
Manage the whole network locally or from the cloud
PoE+ Powered
Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations
Optimized WiFi Performance
With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speeds
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

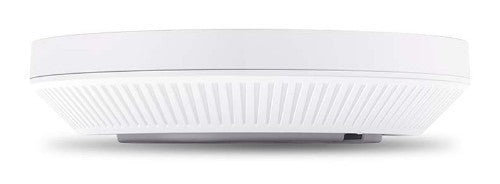

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.

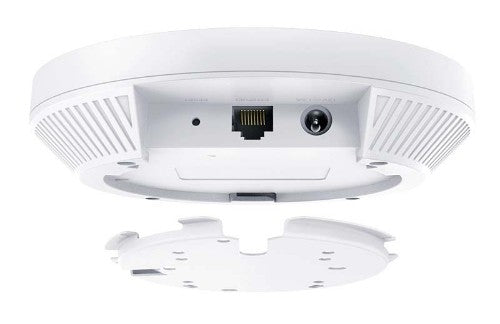

Easy to Mount with Refined Industrial Design
Boosted Network Security and Efficiency
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Guest Network with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
Key Features
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.§
Description
Easily Upgrade to Business WiFi 6 NetworkAX1800 Ceiling Mount WiFi 6 Access Point
AX1800 WiFi 6 Speed
574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz†
Seamless Roaming
Uninterrupted streaming when moving between APs§
Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Omada Mesh Technology
More flexible and convenient wireless deployment
Gigabit Wired Performance
Boosts overall throughput with a Gigabit Ethernet port
Centralized Cloud Management
Manage the whole network locally or from the cloud
PoE+ Powered
Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations
Optimized WiFi Performance
With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speeds
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.
Easy to Mount with Refined Industrial Design
Boosted Network Security and Efficiency
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Guest Network with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Reset button | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management platform | Omada |
| Certification | CE, FCC, RoHS |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| BeamForming | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 |
| Management features | |
| Web-based management | Yes |
| Management platform | Omada |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 10.6 W |
| Power consumption (typical) | 9.6 W |
| Input current | 1 A |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Software | |
| Automatic channel scanning | Yes |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | 10 - 90 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
