CyberPower UT850EG uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 425 W 4 AC outlet(s)

850 VA, 425 W, Type F x 3, Sine Wave, 50/60 Hz

Key Features

• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Generator Compatible
• LED Status Indicator
• Overload Protection
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• High-Speed Ethernet Data Transmission
• USB Connectivity Port
• PowerPanel® Management Software
• EMI and RFI Filtration
• Configurable Alarm

Description

CyberPower UT850EG guarantees power protection for IT equipment such as computers, NAS, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design achieves ultra-low power consumption to reduce energy costs, and allows a lower operation temperature which extends battery lifespan.

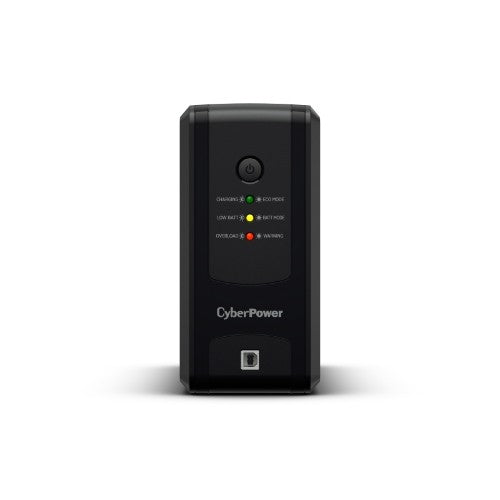

The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	0.85 kVA
Output power	425 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (max)	230 V
Surge energy rating	150 J
Maximum current	5.21 A
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.2 m
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	Type F
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	4 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage, Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Output power capacity	0.85 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	425 W
Input operation voltage (min)	165 V
Input operation voltage (max)	290 V
Output operation voltage (max)	230 V
Surge energy rating	150 J
Maximum current	5.21 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power protection features	Over voltage, Overload
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Heat dissipation	27 BTU/h
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	6 h
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	CE
Cable length	1.2 m
LED indicators	Yes
Housing material	Plastic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Certificates
Certification	CE
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Cables included	USB cable
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	84 mm
Depth	280 mm
Height	174 mm
Weight	4.2 kg
Package width	109 mm
Package depth	315 mm
Package height	229 mm
Package weight	4.47 kg
Packaging data
Quick installation guide	Yes
Cables included	USB cable
Package width	109 mm
Package depth	315 mm
Package height	229 mm
Package weight	4.47 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590
