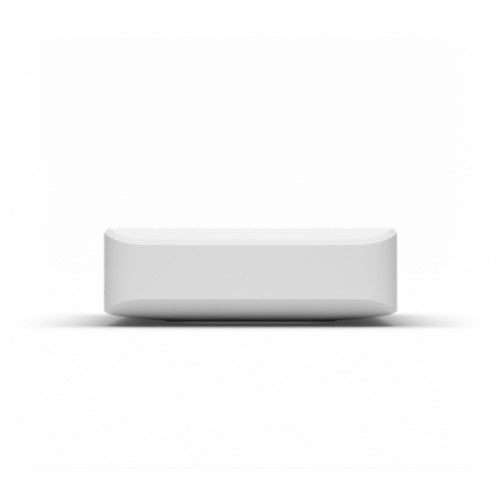

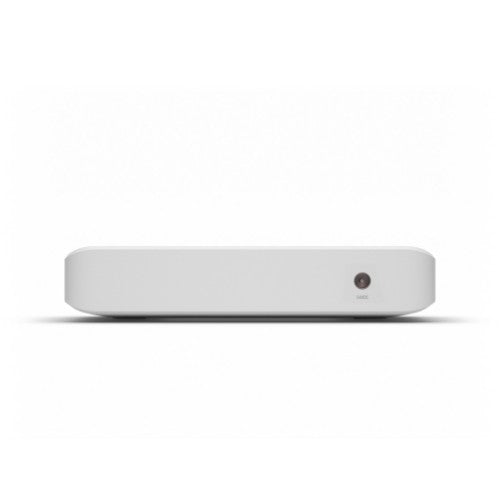

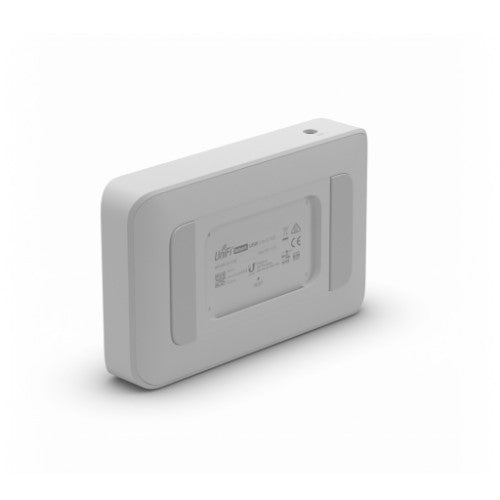

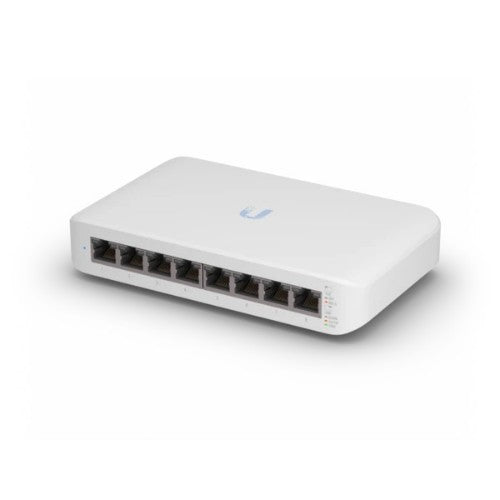

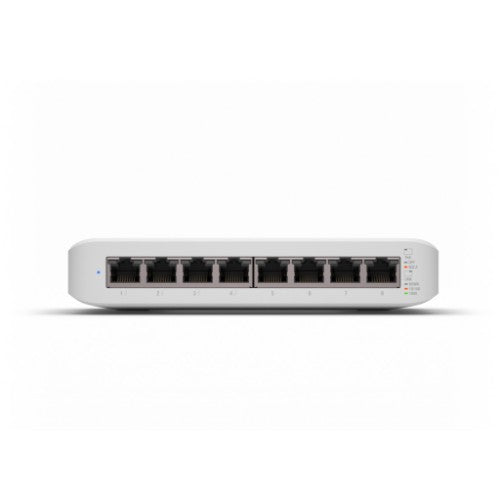

Ubiquiti UniFi Switch Lite 8 PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Layer 2, 8 x RJ45, 4 x 802.3at PoE+, Gigabit Ethernet, 99.6 x 163.7 x 31.7 mm

Key Features

• (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports
• Managed by UniFi Controller (5.13.10 or later)
• External 60W power adapter

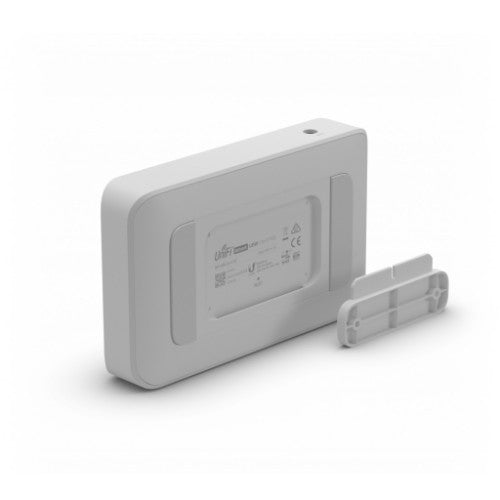

• Wall-mountable (Kit included)

Description

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3at
10G support	No
Data transmission
Switching capacity	8 Gbit/s
Design
Wall mountable	Yes
Rack mounting	No
Stackable	No
Product colour	White
LED indicators	Yes
Power
Power supply included	Yes
Power consumption (typical)	60 W
Number of power supply units	1
DC input voltage	54 V
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) type supported	PoE+
Operational conditions
Operating temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	163.7 mm
Depth	99.6 mm
Height	31.7 mm
Weight	450 g
Performance
Stackable	No
Harmonized System (HS) code	85176990
