TP-LINK

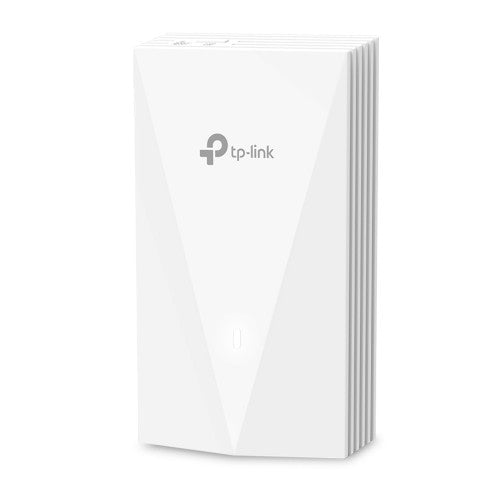

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
Regular price
$161.09 AUD
Regular price
Sale price
$161.09 AUD
Unit price
per
Use the contact form below to check availability.
2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 4 x Gigabit Ethernet Port, 802.11ax/ac/n/g/b/a, 143 x 86 x 42.6 mm
with AX3000 WiFi 6
AX3000 Wall Plate WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a
single stream with HE160
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming
Uninterrupted streaming when moving between APs

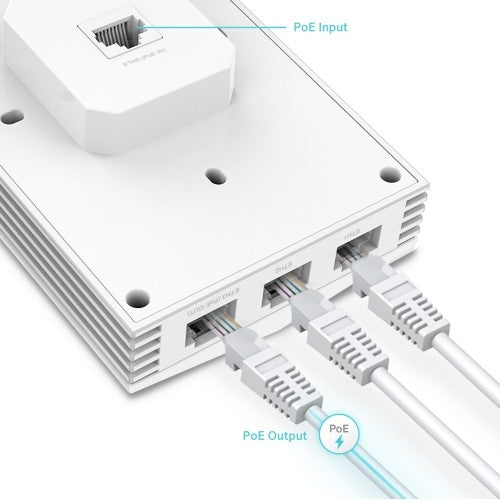

Four Gigabit Ports
Three downlink gigabit ports, one with PoE pass-through
802.3af/at PoE Support
Flexible and convenient deployment

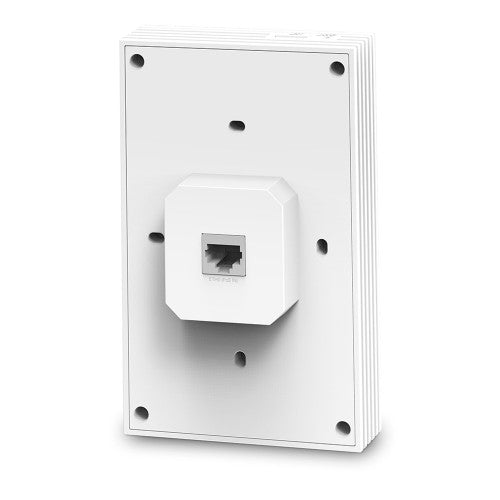

Quick, Simplified Installation
Compatible with 86 mm & EU & US standard junction box
Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps
Better User Experience with High-Performance
WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page
WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.
Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

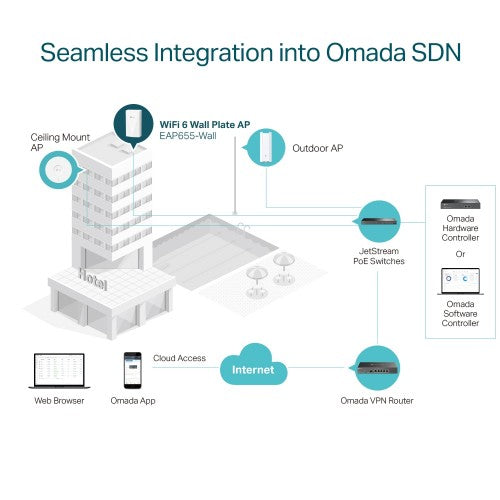

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Key Features
- Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage
- Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
- Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support
Description
Match Your Roomwith AX3000 WiFi 6
AX3000 Wall Plate WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a
single stream with HE160
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming
Uninterrupted streaming when moving between APs
Four Gigabit Ports
Three downlink gigabit ports, one with PoE pass-through
802.3af/at PoE Support
Flexible and convenient deployment
Quick, Simplified Installation
Compatible with 86 mm & EU & US standard junction box
Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps
Better User Experience with High-Performance
WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page
WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.
Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Specifications
| Performance | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Maximum data transfer rate | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Number of users | 100 user(s) |
| Web-based management | Yes |
| VLAN support | Yes |
| Reset button | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Firmware upgradeable | Yes |
| Certification | FCC, RoHS |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Maximum data transfer rate | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Number of users | 100 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Transmitting power (FCC) | 21 - 21 dBm |
| Transmitting power (CE) | 20 - 23 - 26 dBm |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| BeamForming | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Management features | |
| Syslog | Yes |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (typical) | 12 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Cable lock slot | No |
| Certification | FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | FCC, RoHS |
| Compliance certificates | RoHS |
| Software | |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 42.6 mm |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 56 mm |
| Package weight | 400 g |
| Packaging data | |
| Mounting kit | Yes |
| Package type | Box |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 56 mm |
| Package weight | 400 g |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
