DeepCool AG300 Chipset Air cooler 9.2 cm Black, Metallic

Single-tower CPU, LGA1700/1200/1151/1150/1155, AM5/AM4, 119×77×129 mm

Description

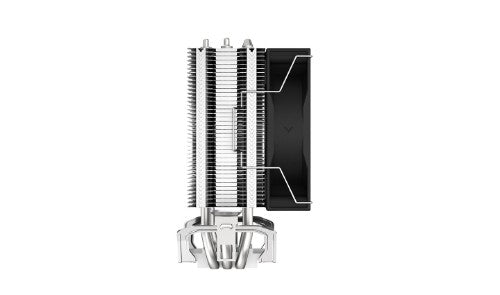

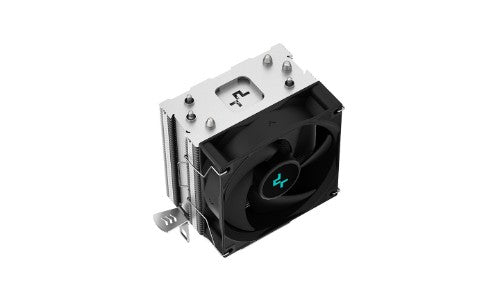

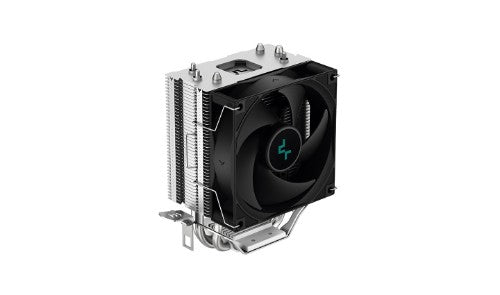

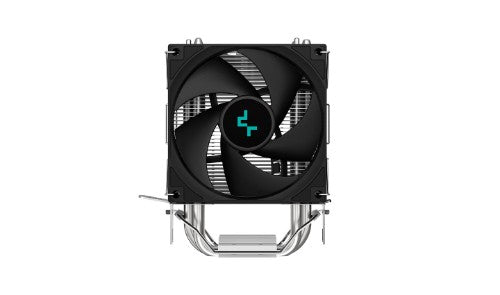

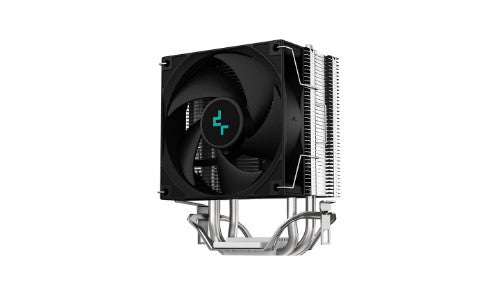

The AG300 is a compact single-tower CPU cooler representing a new generation update from the classic GAMMAXX basic coolers with upgraded appearance and efficiency at 150W heat dissipation power.

EFFICIENT COOLING POWER

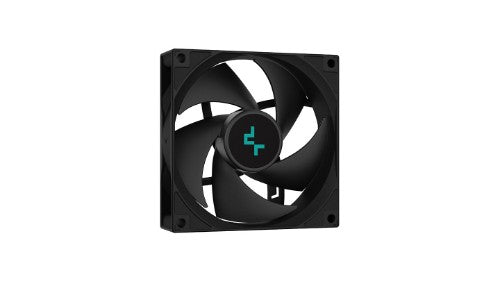

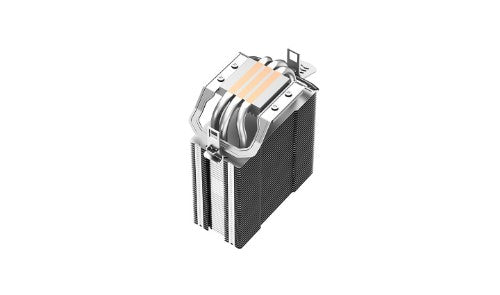

Three direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.

NEW FAMILY APPEARANCE

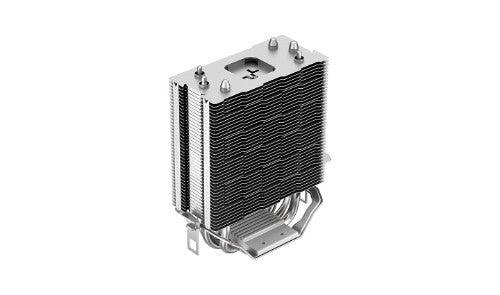

The AG300 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction. The nickel plated heat pipes provide extra protection against copper corrosion.

EASY INSTALLATION
Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.

Specifications

Performance
Suitable location	Chipset
Type	Air cooler
Bearing type	Hydraulic
Fan diameter	9.2 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	36.75 cfm
Maximum air pressure	2.89 mmH2O
Number of heat pipes	3
Number of fans	1 fan(s)
Pump connector	4-pin
Fan noise level (max)	30.5 dB
Design
Number of heat pipes	3
Number of fans	1 fan(s)
Product colour	Black, Metallic
Ports & interfaces
Pump connector	4-pin
Power
Voltage	12 V
Power consumption (typical)	1.56 W
Maximum current	0.13 A
Weight & dimensions
Width	119 mm
Depth	77 mm
Height	129 mm
Weight	350 g
Fan dimensions (W x D x H)	92 x 92 x 25 mm
Packaging data
Package type	Box
Packaging content
Package type	Box
Number of clips	4
Other features
Pump connector	4-pin
