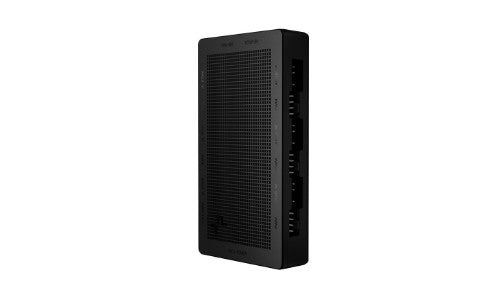

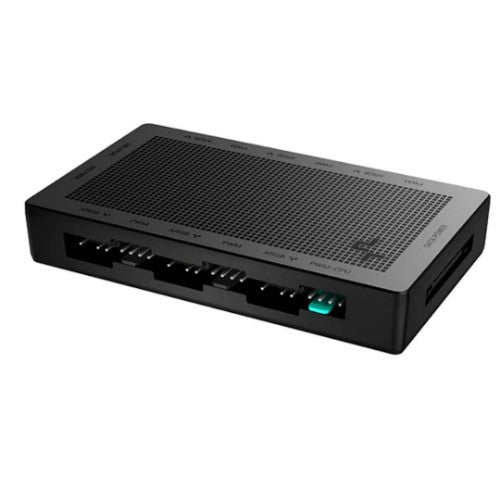

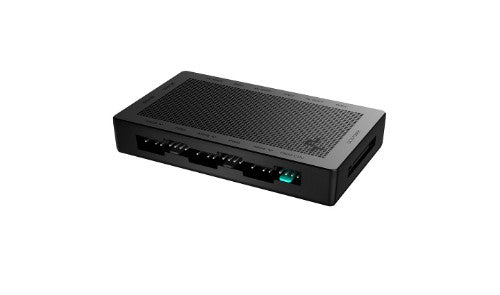

DeepCool SC790 Fan controller

6 Ports x 4Pin PWM, 6 Ports x 3Pin Addressable RGB, SATA, 102×60×17 mm, 69 g, Black

Key Features

• Magnetic Mounting Method
• 6 fans with ARGB
• Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome

Description

The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.

PWM & ARGB SPLITTER HUB
The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices.

The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else.

Specifications

Features
Product colour	Black
Type	Fan controller
Fan connector	3-pin + 4-pin
Power connector	SATA
Number of fan connectors	6
ARGB ports quantity	6
Pulse-width modulation (PWM) support	Yes
Attachment type	Magnetic
Technical details
Product colour	Black
Type	Fan controller
Weight & dimensions
Width	60 mm
Depth	17 mm
Height	120 mm
Weight	69 g
Packaging data
Quantity per pack	1 pc(s)
Power
Fan voltage	12 V
Fan current	2 A
RGB voltage	5 V
Logistics data
Quantity per pack	1 pc(s)
