TP-Link AXE5400 Tri-Band Mesh Wi-Fi 6E System

AXE5400, Wi-Fi 6E, Tri-Band 6/5/2.4 GHz, 1.7 GHz Quad-Core CPU, 105 x 105 x 169 mm, 3-pack

Key Features

• Whole Home WiFi 6E – Cover up to 2,900 ft2 with next-gen seamless WiFi and make dead zones and buffering a thing of the past
• Brand-New 6 GHz Band – Experience the latest frequency of WiFi, eliminating interference from all legacy devices. The 6 GHz band also delivers a powerful dedicated backhaul to further streamline the WiFi performance of non-6E devices△

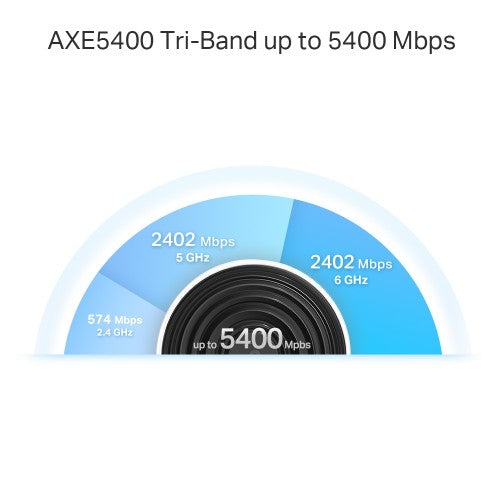

• True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices
• AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move room to room
• TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection
• Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
• Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem

Description

Faster, Stronger, Better

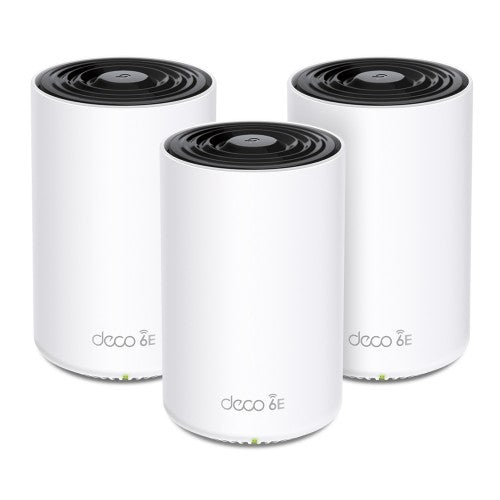

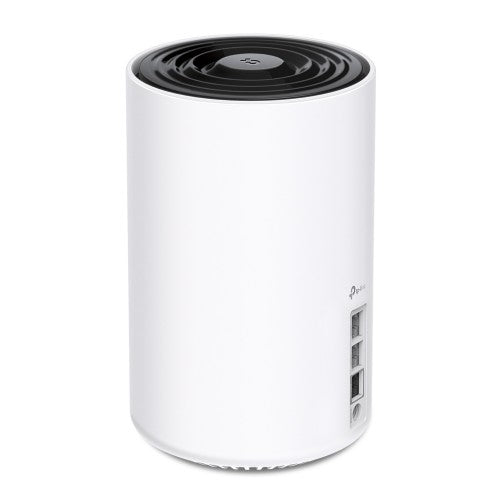

AXE5400 Tri-Band Mesh WiFi 6E System

Deco XE75 Pro

Upgrade Your WiFi to 6E
WiFi 6E utilizes the capabilities of 6 GHz to enable high-bandwidth applications that require faster data throughput such as high-definition video streaming and virtual reality, as well as lower latency connectivity for online gaming applications.

- More spectrum, lower latency
- Wider channels, more throughput
- Congestion-free, less interference
- Supports all WiFi generations and devices

Engineered for Blazing Fast Speed
Experience ultra-fast Wi-Fi with more connected devices thanks to the brand-new 6 GHz band. The added 160 MHz channels prevent competition over bandwidth and drops in speed.

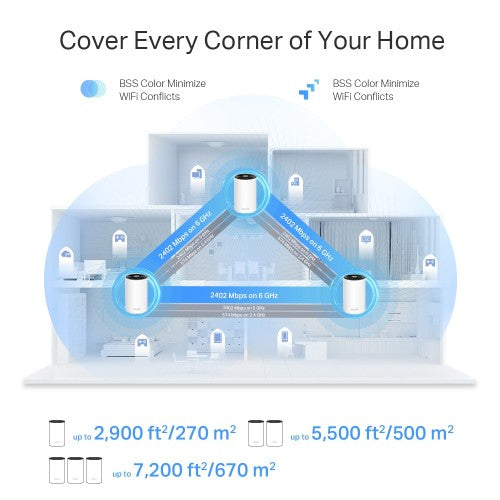

Cover Every Corner of Your Home
Deco XE75 Pro eliminates weak signal areas with clearer, stronger whole-home WiFi generated by BSS (Base Service Station) Coloring and Beamforming technologies as the WiFi dead zone killer. Thus, there will be no more searching around for a stable connection.

Fits Any Type of Your House
Expand Anywhere You Want
Brick and cement. Floors and ceilings. Walls and hallways. All of them make it tough for WiFi to travel across your home. Deco units work together to move WiFi around the obstacles in your home and deliver complete coverage.

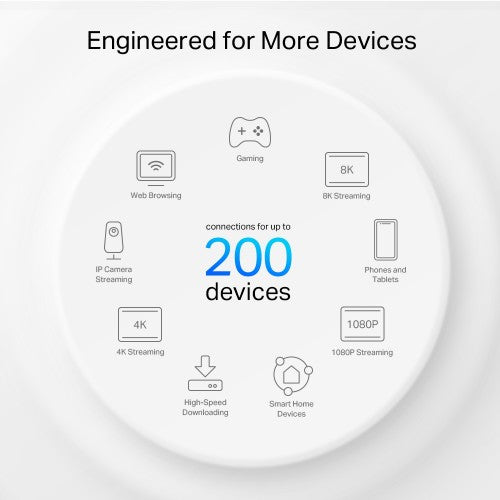

Engineered for
More Devices
Deco products are aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.

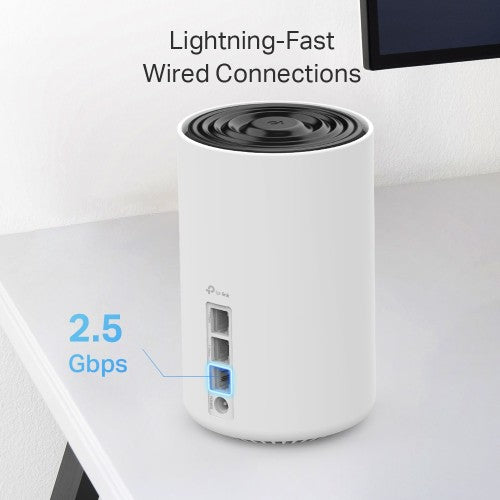

Lightning-Fast Wired Connections
A 2.5 Gbps port and 2 Gigabit ports allow you to take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.

Intelligent Networking for a Smarter Home
Deco uses its custom algorithms to automate the connections on your network, ensuring the strongest possible signals at all times.

Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.

Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Specifications

Design
Product colour	White
LED indicators	Yes
Antenna type	Internal
Antennas quantity	4
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Reset button	Yes
Certification	CE, FCC, RoHS
Maximum coverage	670 m²
Product type	Mesh system
Transmit power	FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz), CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz)
Wireless LAN features
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Security algorithms	WPA2-PSK, WPA3, WPA
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Networking standards	IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Point-to-point protocol over Ethernet (PPPoE)	Yes
Static IP	Yes
Dynamic IP	Yes
Wireless Distribution System (WDS) bridge	Yes
Guest access	Yes
Dynamic DNS (DDNS)	Yes
WLAN data transfer rate (third band)	2402 Mbit/s
Tagged VLAN	Yes
IGMP snooping	Yes
IGMP proxy	Yes
Apps supported	TP-Link Deco
Features
DHCP client	Yes
DHCP server	Yes
Processor cores	4
Quality of Service (QoS) support	Yes
Port forwarding	Yes
Firewall security	SPI Firewall
BeamForming	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Parental control	Yes
Universal Plug and Play (UPnP)	Yes
Built-in processor	Yes
MIMO	Yes
Processor frequency	1.7 GHz
Parental control features	Bedtime, Custom profiles, Pause the Internet, Time rewards, Content filter, Family time, Time controls, Weekly/monthly reports
MU-MIMO technology	Yes
Protocols
DHCP client	Yes
DHCP server	Yes
Supported network protocols (IPv6)	Yes
Universal Plug and Play (UPnP)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
DC-in jack	Yes
Ethernet WAN	Yes
Power
AC adapter output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Certificates
Certification	CE, FCC, RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	105 mm
Depth	105 mm
Height	169 mm
Packaging content
AC adapter included	Yes
Ethernet cable	Yes
Number of products included	3 pc(s)
Number of units included	3 pc(s)
