TP-Link VIGI 16 Channel Network Video Recorder

80 Mbps In / 60 Mbps Out, H.265+/H.265/ H.264+/H.264, 1920 × 1080p/60Hz, 246.2 × 148.2 × 45 mm

Key Features

• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
• 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle
• Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage
• Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
• ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
• 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management

Description

Security Never Shuts Down

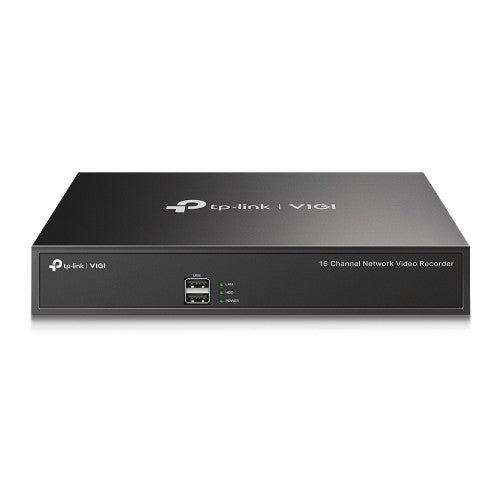

VIGI NVR1016H 16 Channel Network Video Recorder

VIGI NVR Introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.

Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

Every angle all on one screen.
16-Channel Real-Time Live View
Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.

Reviewing footage is faster than ever.
Quick Lookup&Playback
Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

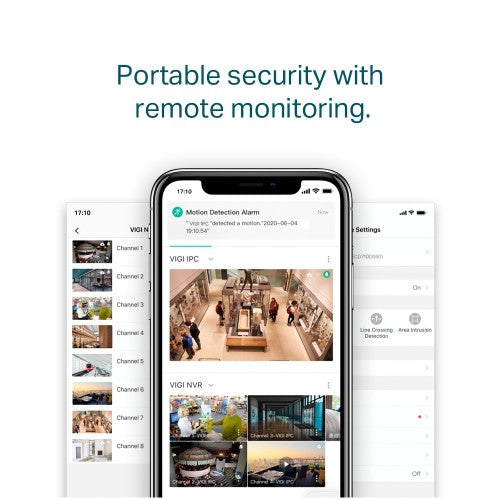

Keep an eye on things even when you are on the move.
Remote Monitoring
Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

More compression. More savings. Same quality.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Up to 720 days of footage stored locally.
1 HDD (up to 10 TB)
Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.

Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

More bandwidth for more cameras.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages more cameras with high resolution.
Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16× 4MP cameras.

Manage everything with one.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Performance
Ethernet LAN data rates	10,100 Mbit/s
Supported resolutions	1920 × 1080, 1280 × 1024, 1280 × 720, 1680 × 1050, 1440 × 900
Video input channels	16 channels
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.264+, H.265, H.265+
Video recording modes	720p, 1080p
Wireless LAN features
Wi-Fi	No
Hard drive
Number of HDDs installed	0
Number of HDDs supported	1
Maximum storage capacity	10 TB
HDD interface	SATA
Storage
Number of HDDs installed	0
Number of HDDs supported	1
Maximum storage capacity	10 TB
HDD interface	SATA

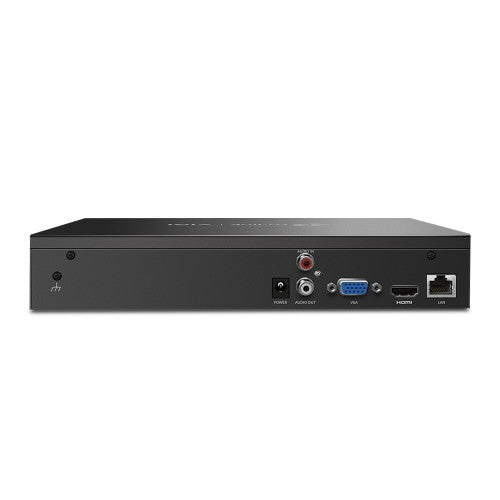

Ports & interfaces
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Features
Product colour	Black
Power
Output voltage	12 V
Output current	1.5 A
Operational conditions
Operating temperature (T-T)	10 - 55 °C
Technical details
Harmonized System (HS) code	85219000
Weight & dimensions
Width	148.2 mm
Depth	45 mm
Height	246.2 mm
Weight	578.5 g
Package width	277.5 mm
Package depth	296.5 mm
Package height	64.5 mm
Package weight	600 g
Logistics data
Harmonized System (HS) code	85219000
