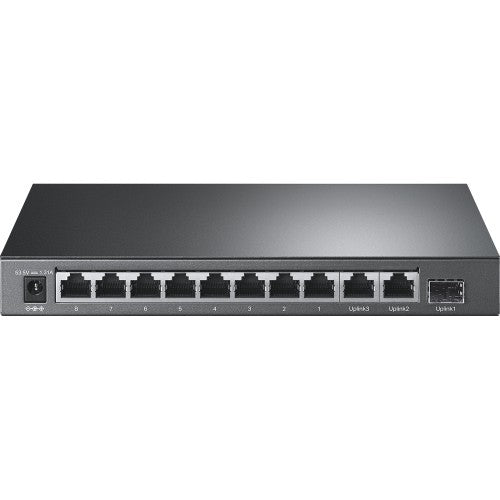

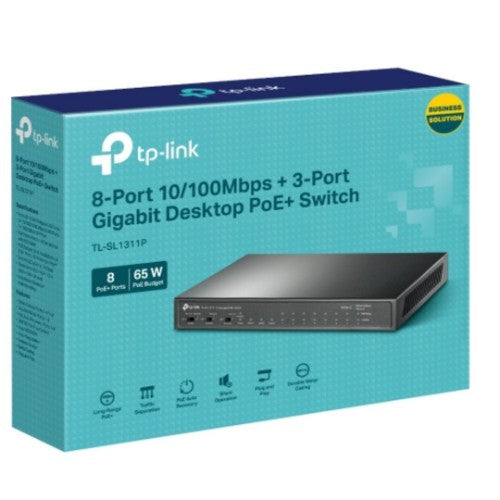

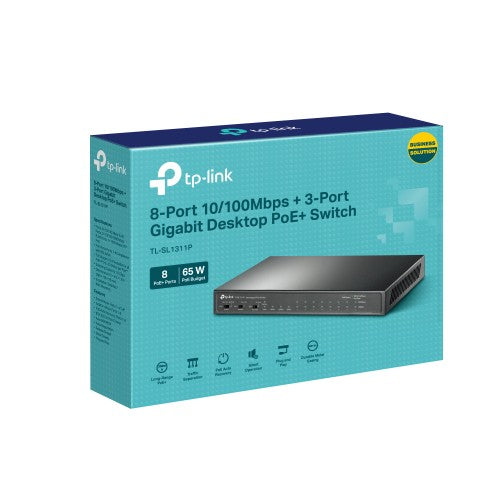

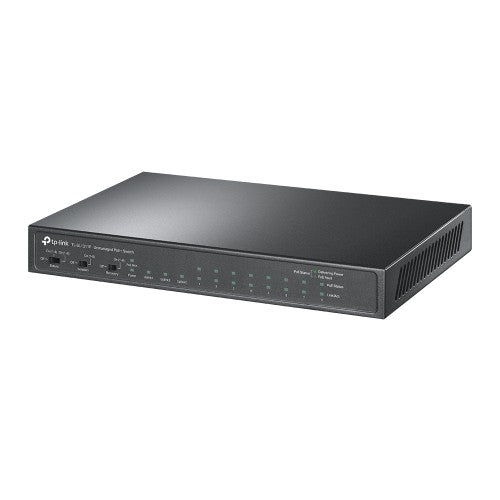

TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

8x 10/100 Mbps 802.3af/at PoE+, 2x Gigabit RJ45, 1x Gigabit SFP, PoE 65 W, 2K MAC, 16 KB Jumbo, 209 x 126 x 26 mm

Key Features

• 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

Description

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required

Specifications

Management features
Reset button	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Data transmission
Jumbo frames	16
MAC address table	2000 entries
Switching capacity	7.6 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	5.6544 Mpps
Design
Reset button	Yes
Rack mounting	No
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Power
Power consumption (max)	77.32 W
Power supply included	Yes
DC input voltage	53.5 V
Power source	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	65 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
Cables included	LAN (RJ-45)
Packaging data
Package type	Box
Cables included	LAN (RJ-45)
Certificates
Certification	FCC, CE, RoHS
