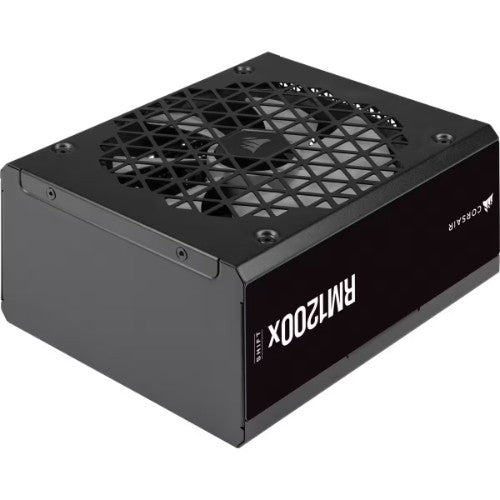

Corsair RM1200w Shift power supply unit 1200 W 24-pin ATX ATX Black

Corsair RM1200w Shift 80+ Gold Fully Modular ATX 3.0, PCIe 5.0, Type 5 Micro-Fit Connectors, 140mm Zero RPM PSU NDA Feb 4 power supply unit

Description

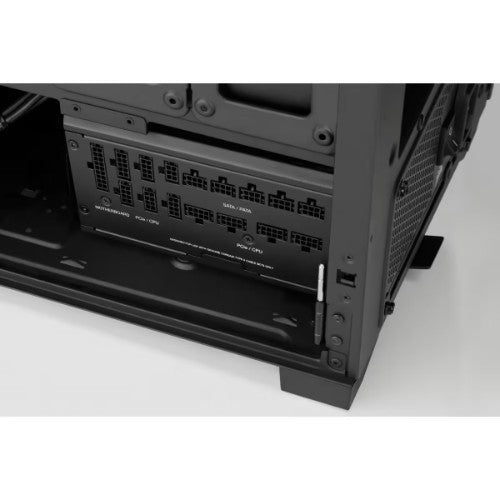

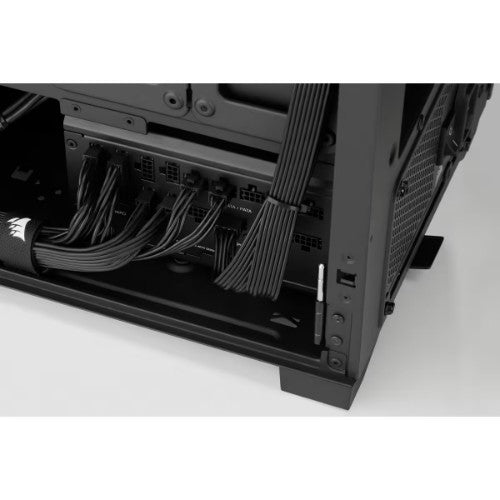

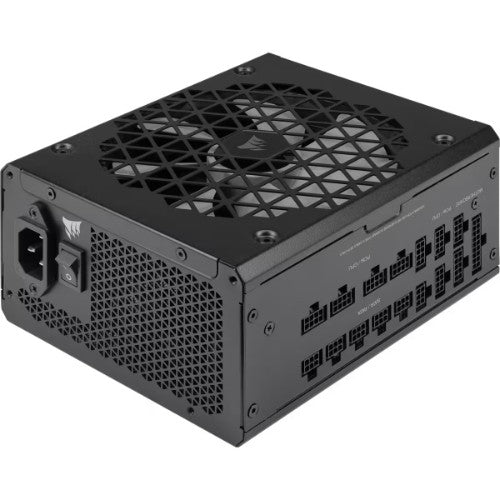

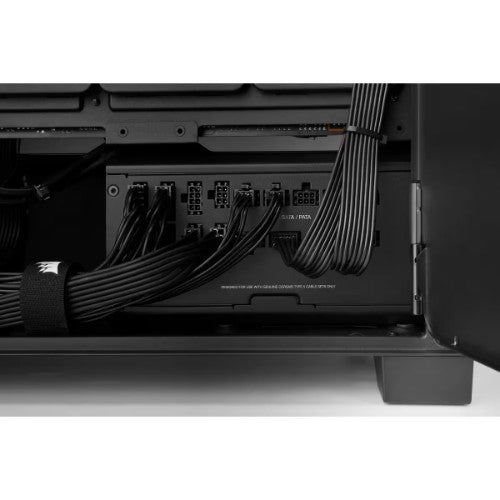

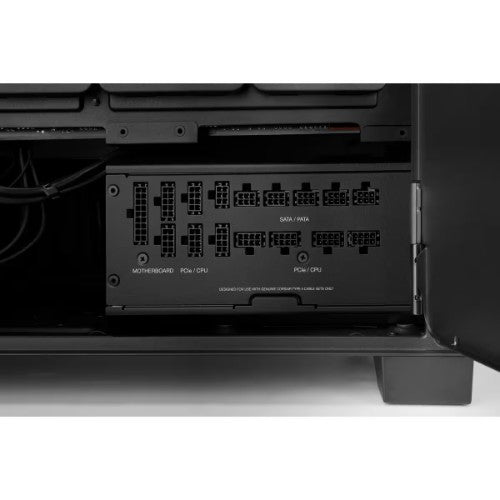

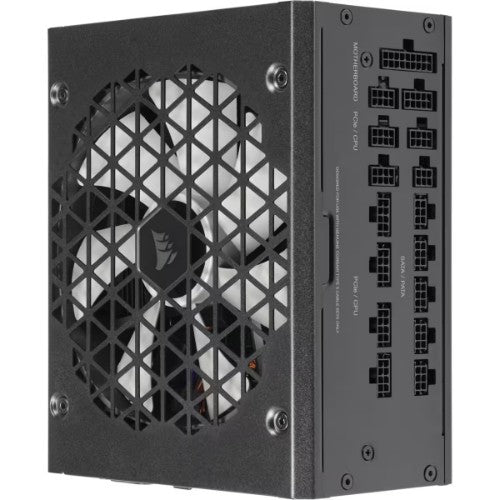

SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before

ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series

CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space

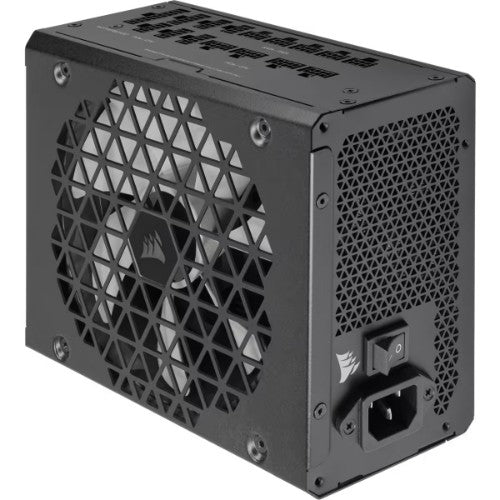

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load

80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability

CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case

Specifications

Cooling
Fan diameter	14 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
Silent mode	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC/Server
ATX version	3.0
EPS version	2.92
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	14 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	1200 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	15 - 7.5 A
Combined power (+3.3V)	150 W
Combined power (+12V)	1200 W
Combined power (+5V)	150 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	100 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Efficiency	90%
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	455,570,685,800 mm
PCI Express power cable length	65 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	16
Number of PATA power connectors	8
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	8
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
Packaging content
Cables included	PATA, PCIe, SATA
Weight & dimensions
Weight	2 kg
Packaging data
Cables included	PATA, PCIe, SATA
Technical details
Compliance certificates	Low Voltage Directive (LVD), RoHS, UKCA
Certificates
80 PLUS certification	80 PLUS Gold
