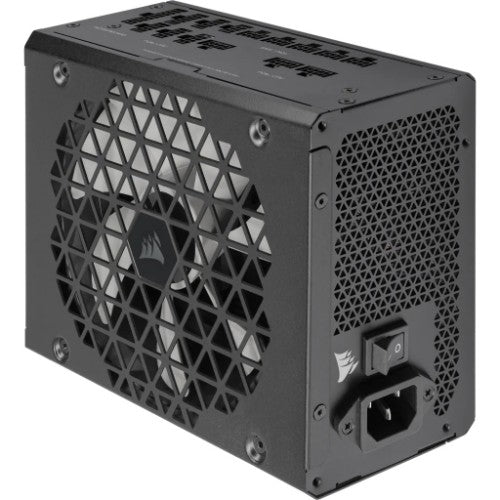

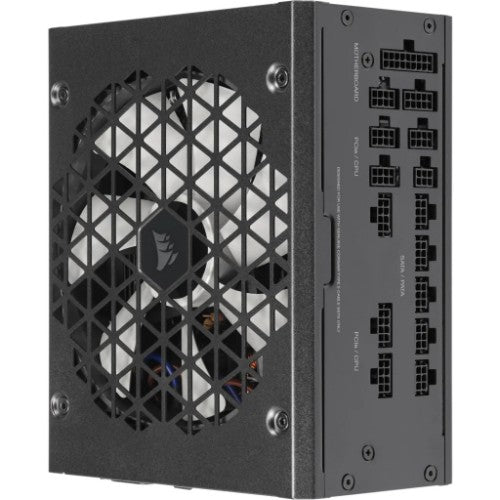

Corsair RM1000x SHIFT power supply unit 1000 W 24-pin ATX ATX Black

1000 Watts, 100–240V, 12A-6A, FDB, 80 Plus Gold, ATX 3.0

Key Features

• RMx SHIFT Series PSUs are certified for ATX 3.0 compliance
• Type 5 micro-fit connectors
• Zero RPM fan mode
• Low noise
• Easier access for your cables and simpler, cleaner cable management

Description

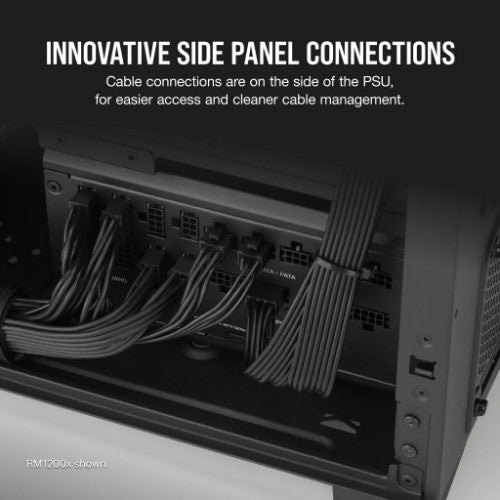

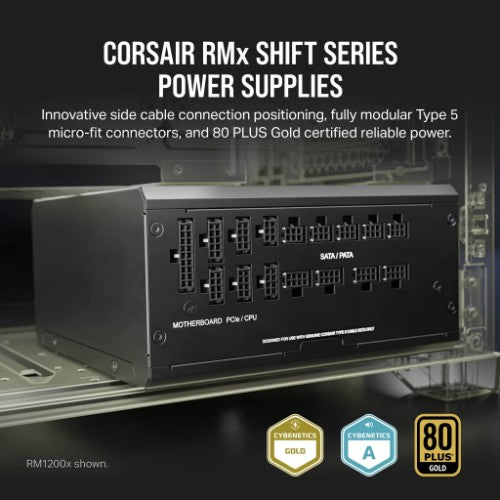

SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.

ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

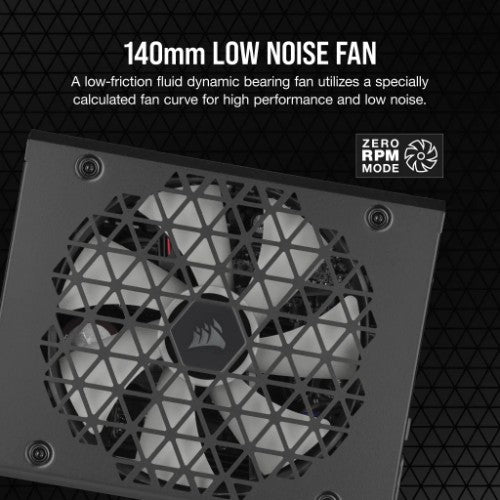

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

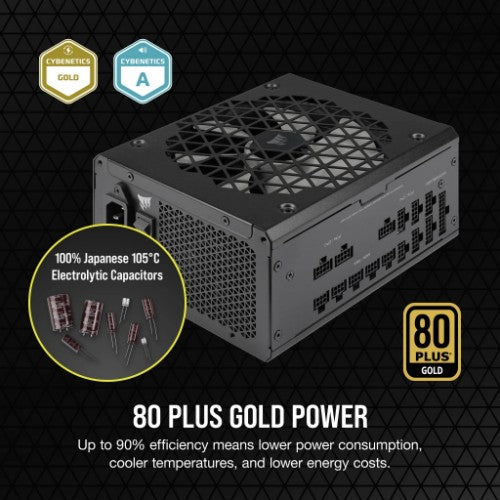

80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.

Specifications

Cooling
Fan diameter	14 cm
Cooling type	Passive
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	14 cm
Cooling type	Passive
Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	12 - 6 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	150 W
Combined power (+12V)	1000 W
Combined power (+5V)	150 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	83.3 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Efficiency	90%
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	800 mm
PCI Express power cable length	65 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	16
Number of PATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	8
PCI Express power connectors (6+2 pin)	7
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.0
Noise level	32 dB
Bearing technology	FDB
Mean time between failures (MTBF)	100 h
Supported motherboard form factors	ATX
Packaging content
Cables included	AC, DC
Cable tie(s) included	Yes
Weight & dimensions
Width	150 mm
Depth	180 mm
Height	86 mm
Weight	3.9 kg
Packaging data
Cables included	AC, DC
Certificates
80 PLUS certification	80 PLUS Gold
