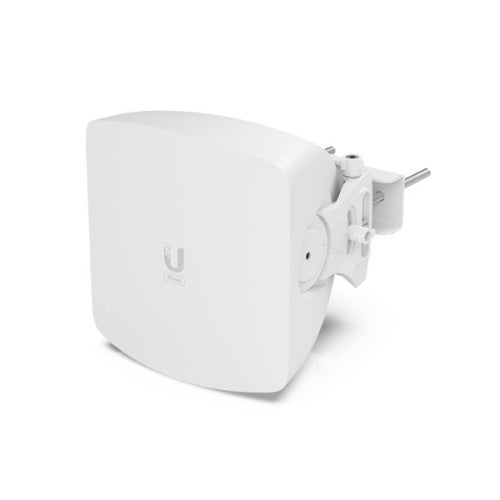

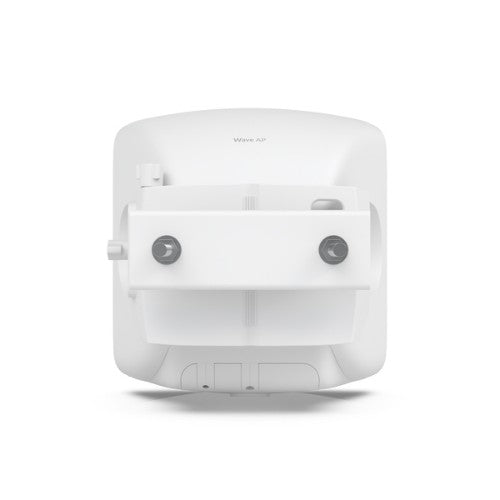

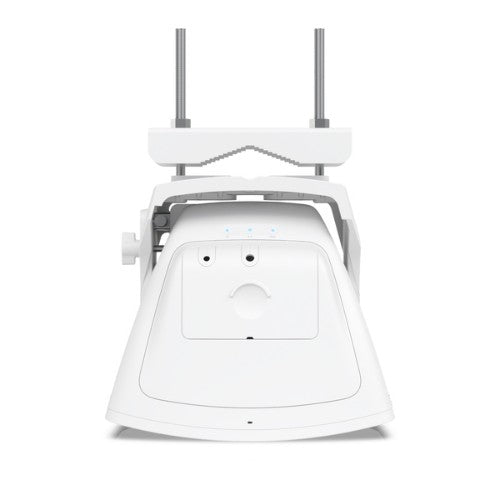

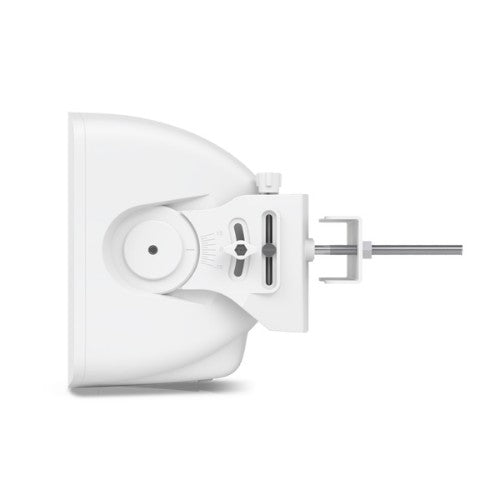

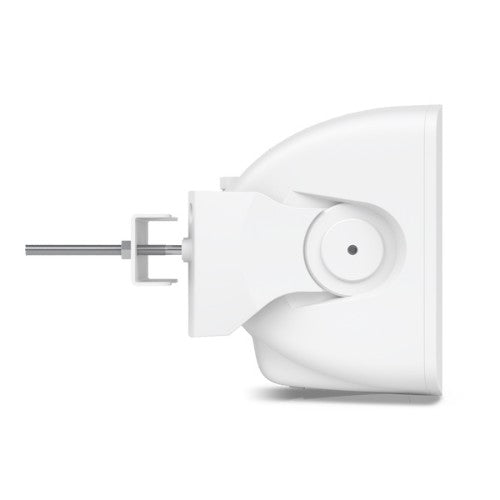

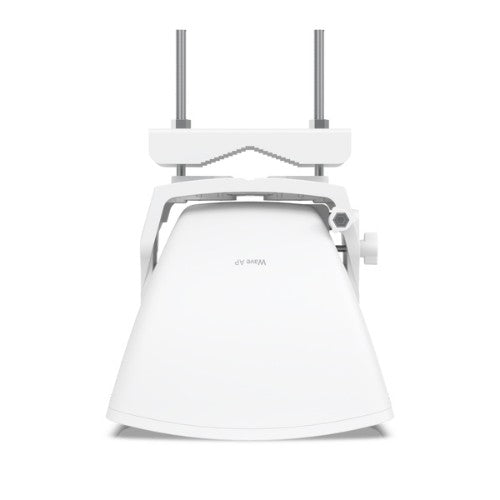

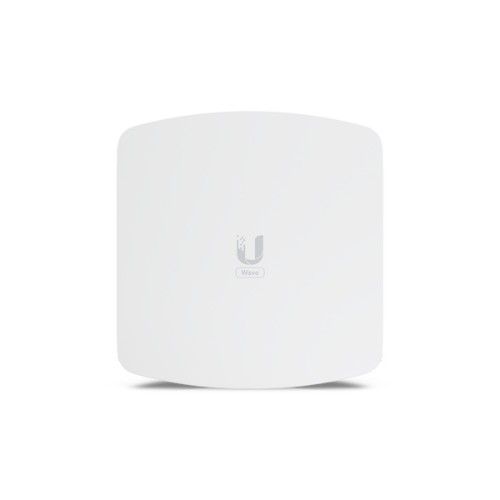

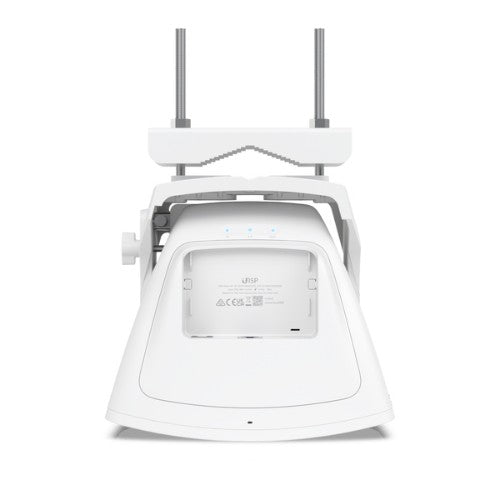

Ubiquiti UISP Wave Access Point 5400 Mbit/s White

60 GHz PtMP access point

Key Features

• 5 GHz backup radio
• Supported stations and distances:
• – Wave Long-Range: up to 8 km
• – Wave Nano: up to 5 km
• WAN Ports: (1) 10G SFP+, (1) 2.5GbE
• Integrated GPS antenna

Description

60 GHz PtMP access point powered by Wave Technology.

The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.

Specifications

Data transmission
Maximum data transfer rate	5400 Mbit/s
Antenna
Antenna gain level (max)	24 dBi
Antenna type	Internal
Wireless LAN features
Frequency band	57 - 71 GHz
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Antenna gain level (max)	24 dBi
Antenna type	Internal
Network
Ethernet LAN data rates	100,1000,2500,10000 Mbit/s
Full duplex	Yes
Frequency band	57 - 71 GHz
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	AES, WPA2-PSK
Management features
Management protocols	SNMP
Web-based management	Yes
LED indicators	Yes
Features
Reset button	Yes
International Protection (IP) code	IPX6
LED indicators	Yes
Internal memory	512 MB
Product colour	White
Power
Power consumption (max)	24 W
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, IC
Technical details
Internal memory	512 MB
Product colour	White
Sustainability compliance	Yes
Compliance certificates	CE
Weight & dimensions
Weight	2.3 kg
Width	212 mm
Depth	187 mm
Height	205 mm
Processor
Processor frequency	1400 MHz
