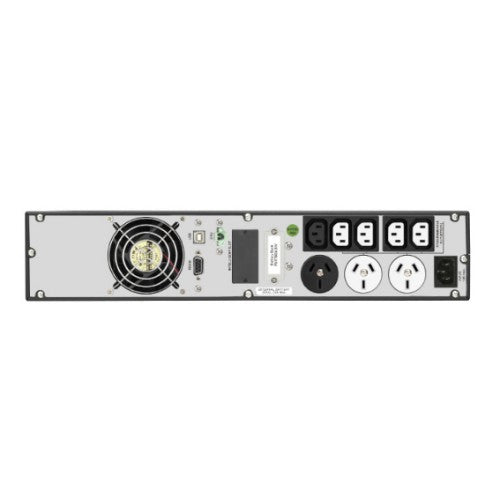

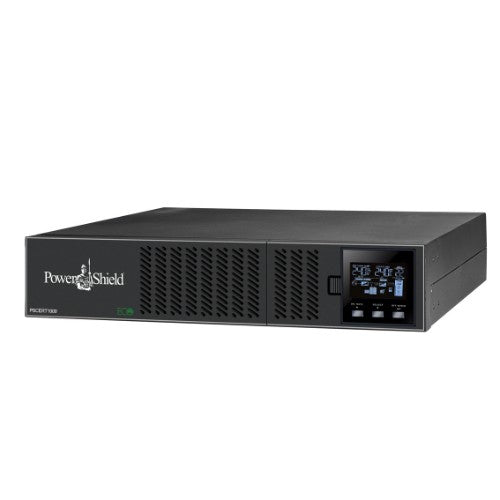

PowerShield Centurion RT 1000VA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 8 AC outlet(s)

1000 VA, 900 W, 8 Outlets, 3 Batteries, 12 V, 9 Ah, 380 × 438 × 88 mm, 15200 g

Key Features

• True double-conversion
• Output power factor 0.9
• User-friendly and electronic easy-shift LCD display

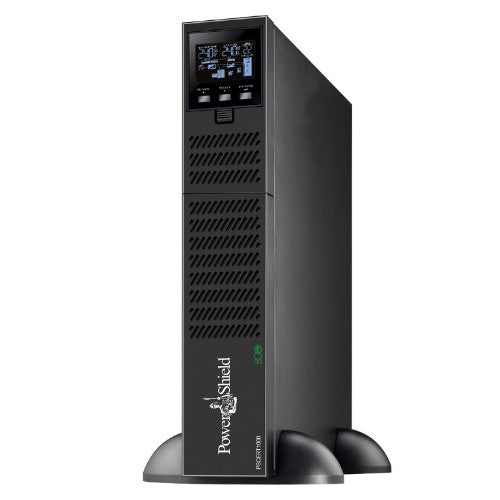

• Rack or Tower design
• Advanced ECO mode for energy saving
• Generator compatible
• Programmable power management outlets
• Emergency Power Off function (EPO)
• Hot swappable battery design
• Ideal for medium density power protection
• Extra large charger

Description

As a true online double conversion UPS the Centurion RT is our highest single phase power density UPS. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.
The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.

Specifications

Power
Output power capacity	1 kVA
Output power	900 W
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	984 J
Efficiency	86%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage regulation	1%
Input power factor	0.99
Crest factor	3:1
ECO mode	Yes
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
Response time	4 ms
Surge protection	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Over voltage, Overcharge, Short circuit
Noise level	50 dB
Features
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Number of output phases	1
Number of input phases	1
Response time	4 ms
Output power	900 W
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	984 J
Efficiency	86%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power protection features	Battery discharge, Over voltage, Overcharge, Short circuit
Power factor	0.9
Output voltage regulation	1%
Input power factor	0.99
Crest factor	3:1
Noise level	50 dB
ECO mode	Yes
Input frequency	40 - 70 Hz
Power source type	AC
Detachable power cord	Yes
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	3
Battery recharge time	4 h
Battery voltage	12 V
Battery capacity	9 Ah
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU
Cooling type	Active
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	438 mm
Depth	380 mm
Height	88 mm
Weight	15.2 kg
Certificates
Certification	EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU
