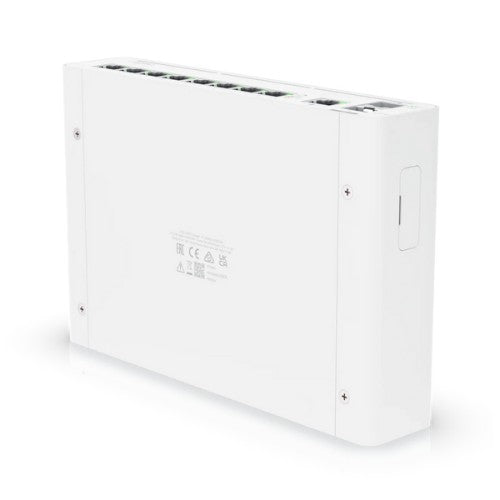

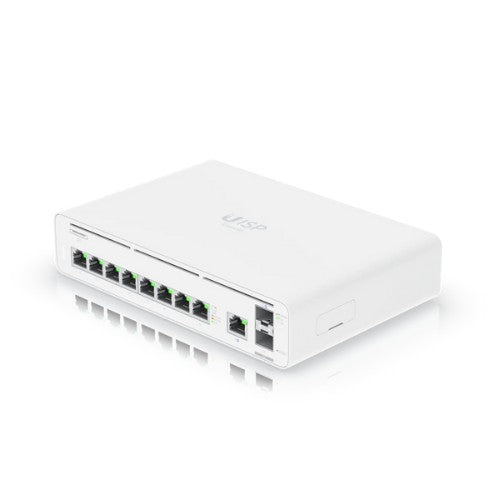

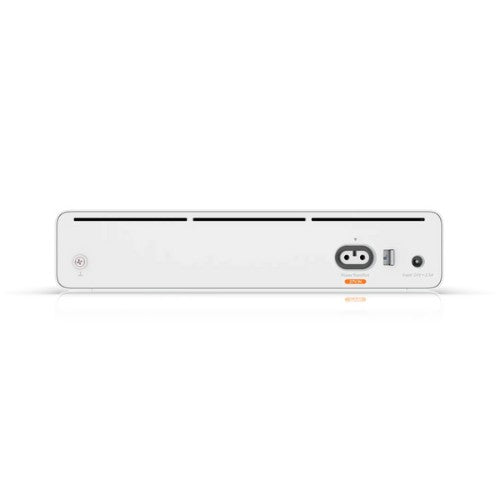

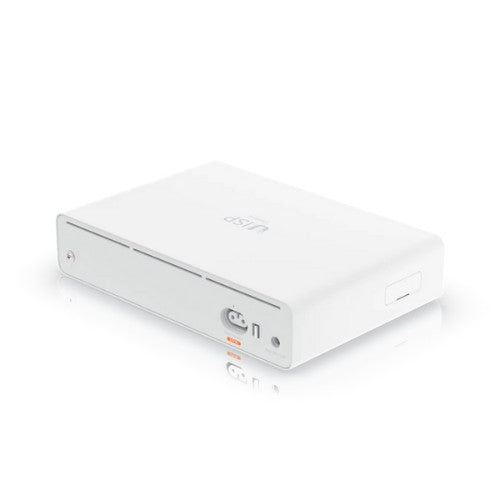

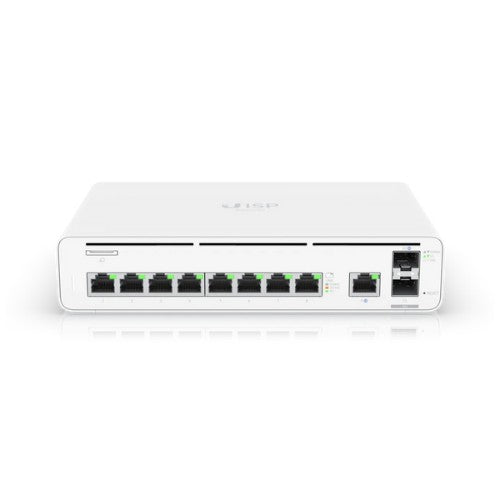

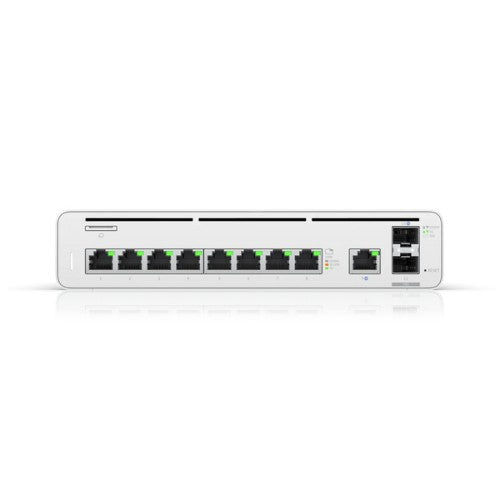

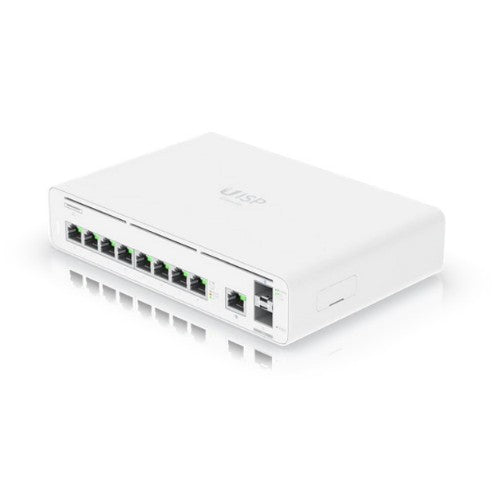

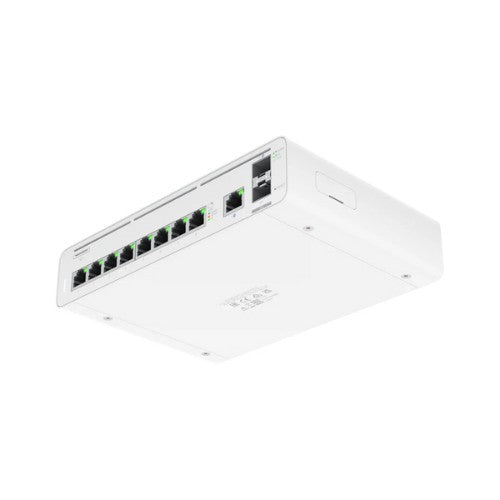

Ubiquiti UISP Console gateway/controller 10, 100, 1000 Mbit/s

(2) 10G SFP+ ports, (9) GbE RJ45 ports, 1U, 210.4 x 140.2 x 43.7 mm

Key Features

• (2) 10G SFP+ ports
• (9) GbE RJ45 ports
• Powered by an external AC/DC adapter (included)
• Compact, durable metal casing
• 1U rack or wall-mountable (kits included)
• Easy, Bluetooth-powered setup via the UISP Mobile app
• Pre-installed UISP application

Description

The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.

Specifications

Design
LED indicators	Yes
Certification	CE, FCC, IC
Rack capacity	1U
Product colour	White
Enclosure material	Metal
Performance
Built-in processor	Yes
Processor frequency	1700 MHz
Number of processors installed	1
Internal memory type	DDR4
Internal memory	4 MB
Flash memory	16000 MB
Control display unit	No
Processor model	Cortex-A57
Processor family	ARM Cortex
SSD capacity	128 GB
Certification	CE, FCC, IC
Rack capacity	1U
Product colour	White
Enclosure material	Metal
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	8
Power
Input voltage	24 - 28 V
Power consumption (max)	30 W
Weight & dimensions
Weight	1.45 kg
Width	210.4 mm
Height	43.7 mm
Depth	140.2 mm
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Built-in processor	Yes
Processor frequency	1700 MHz
Number of processors installed	1
Indication
LED indicators	Yes
Memory
Internal memory type	DDR4
Internal memory	4 MB
Flash memory	16000 MB
Display
Control display unit	No
Certificates
Certification	CE, FCC, IC
Features
Built-in processor	Yes
Processor frequency	1700 MHz
Number of processors installed	1
