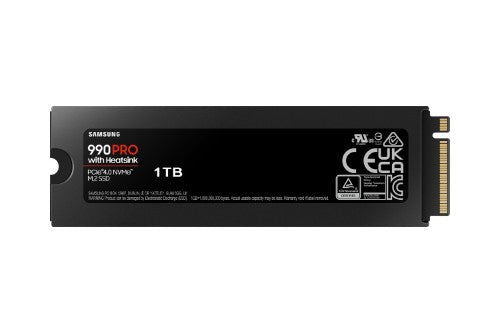

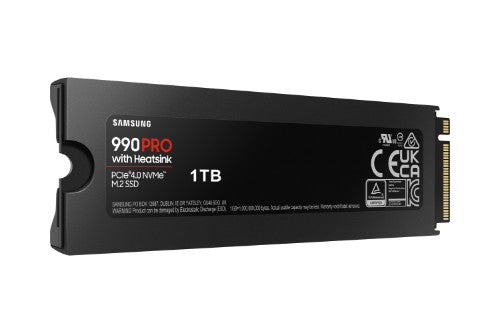

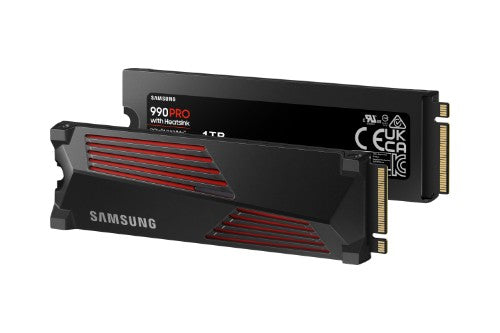

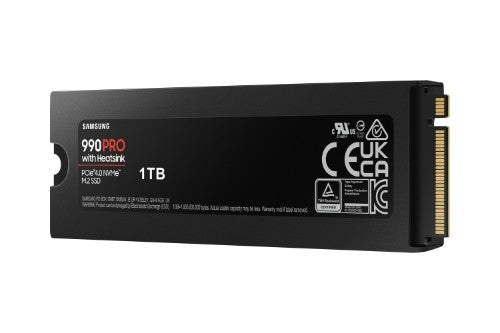

Samsung 990 PRO 1 TB M.2 PCI Express 4.0 NVMe V-NAND MLC

1 TB, M.2 (2280), PCIe Gen 4.0 x4, NVMe, Samsung V-NAND 3-bit MLC 2.0, 80 x 24.3 x 8.2 mm

Key Features

• Samsung NVMe SSD powered by newly designed in-house controller
• Up to 7,450 / 6,900 MB/s sequential read/write speed
• Power efficient SSD, reliable thermal control, with heatsink

Description

The Ultimate SSD
Reach max performance of PCIe® 4.0. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

PCIe 4.0 speed maximised
Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1,400K/1,550K IOPS, while sequential read/write speeds up to 7,450/6,900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.

Breakthrough power efficiency
More power-efficient performance. Higher performance usually consumes more power. 990 PRO uses less power with up to 50% improved performance per Watt over 980 PRO. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution

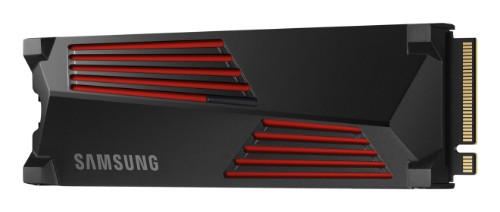

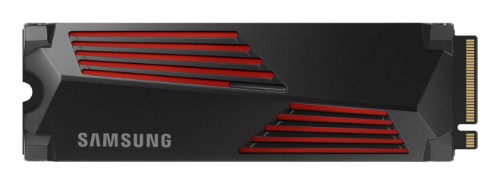

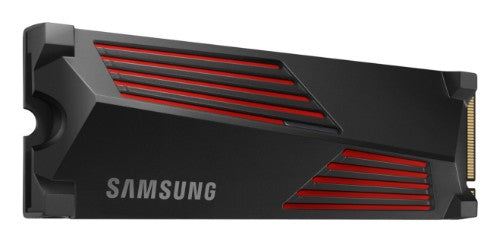

Sink that heat. The slim heatsink dissipates heat to prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming. The thin body is compatible with PlayStation® 5, desktops, and laptops meeting the PCI-SIG® D8 standard.

The champion maker
The best gameplay experience. A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games. The heatsink’s futuristic design adds style to heat control, now with RGB lights.

Samsung Magician software
Unlock the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get updates, monitor drive health, and set up LED colour combinations. Your personal SSD toolkit.

World's No. 1 Flash Memory
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications

Features
Interface	PCI Express 4.0
Component for	PC
SSD capacity	1 TB
Read speed	7450 MB/s
Write speed	6900 MB/s
NVMe	Yes
NVMe version	2.0
Memory type	V-NAND MLC
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
Backlight	Yes
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (average)	5.4 W
Power consumption (max)	7.8 W
Power consumption (idle)	0.05 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 4.0
Component for	PC
SSD capacity	1 TB
Read speed	7450 MB/s
Write speed	6900 MB/s
NVMe	Yes
NVMe version	2.0
Memory type	V-NAND MLC
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	1500000 h
Design
SSD form factor	M.2
Weight & dimensions
Width	80 mm
Depth	8.2 mm
Height	24.3 mm
Weight	28 g
Package type	Hanging box
Packaging data
Bundled software	Samsung Magician
Package type	Hanging box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
SSD form factor	M.2
Software
Bundled software	Samsung Magician
Packaging content
Bundled software	Samsung Magician
