TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

23.8Mpps, 32Gbps, 8K, 16× 10/100/1000 Mbps RJ45

Key Features

• With 16 PoE+ ports, transfers data and power on one single cable
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 120 W for all PoE ports*
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required

Description

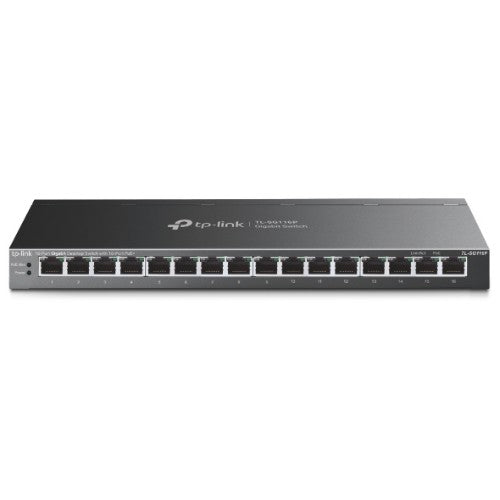

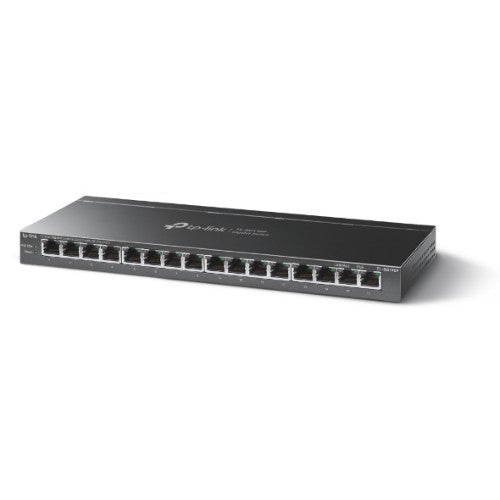

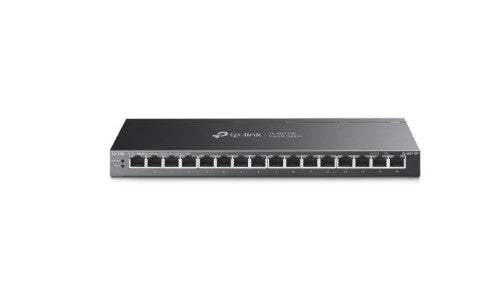

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+
• 16× 10/100/1000 Mbps RJ45 ports
• With 16 PoE+ ports, transfers data and power on one single cable
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 120 W for all PoE ports*
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required

Warranty Period: 5-Year

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Cable length detection	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
Number of VLANs	32
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	23.81 Mpps
Number of VLANs	32
Security
Loop protection	Yes
IGMP snooping	Yes
Design
Wall mountable	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Housing material	Metal
Power
Power consumption (max)	144.28 W
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (typical)	11.72 W
Input current	0.6 A
DC input voltage	9 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	490.55 BTU/h
Virtual LAN features
Number of VLANs	32
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Packaging content
Quick start guide	Yes
Packaging data
Package width	227 mm
Package depth	434 mm
Package height	70 mm
Package weight	2 kg
Quick start guide	Yes
Performance
Stackable	Yes
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
