ATEN 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through

2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through

Key Features

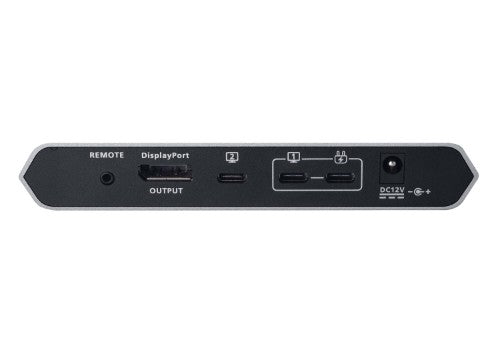

• 2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
• Superior video quality – up to True 4K (3840 X 2160 @ 60 Hz)
• ATEN Video DynaSync™ Technology - eliminates boot-up display problems and optimizes resolutions when switching among video sources
• USB 3.2 Gen 1 compliant
• Up to 5 Gbps data transfer rates
• Supports DP 1.4 Alt Mode
• Supports PD 3.0 up to 100 W USB PD charging – allows your laptop to obtain the maximum power via your USB-C power adapter
• Host device selection via the included port switch button
• Plug-and-Play – no drivers needed

Description

Switch Between 2 USB-C Laptops

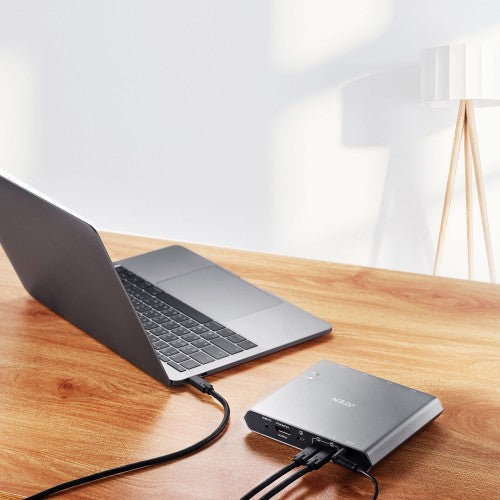

US3311 takes our agile and powerful KVM switch solutions to another dimension. It enables plug-n-play single USB-C cable connection so that 2 laptops can share 1 monitor and 1 keyboard and mouse set, plus 4K@60 and 4-port USB 3.2 SuperSpeed connectivity significantly save desk space and boost your efficiency.

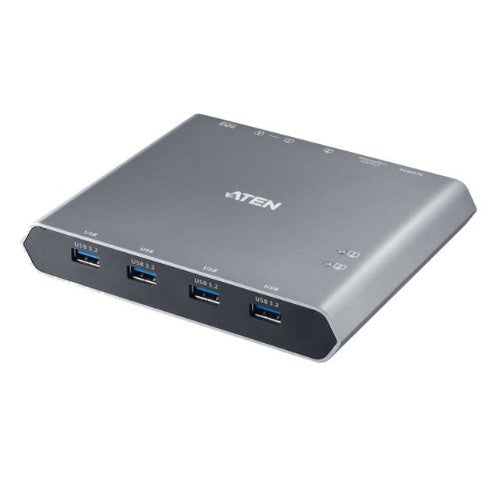

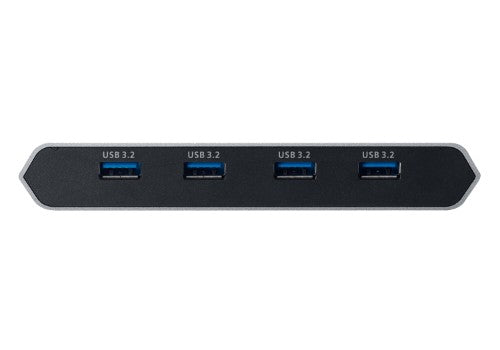

Superb 4-Port SuperSpeed Expansion
With 4 USB 3.2 gen1 ports, transfer data at up to 5Gb/s. Charge and power external devices, no need for an extra USB hub.

Unreal Switching Speed
Exclusive ATEN technology brings astoundingly fast switching speed. Switching between two systems takes three seconds,* making your workflow more efficient than ever before.

Always Correct Resolutions and Display Configurations
ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations when switching ports under all operating systems, ensuring smooth desktop operation.

Exceptional AV Performance in Vivid 4K@60Hz
US3311 empowers your desktop operations with visual enhancement thanks to 4K DCI compliance. It supports up to 3840x2160@60Hz and also works with 21:9 Ultrawide and 32:9 super Ultrawide monitors for graphics-intensive work.

Work While Charging with 100W Power Delivery
The USB-C KVM dock switch also works as a charging station to keep your USB-C devices and USB peripherals powered on.

Specifications

Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Ports & interfaces
DisplayPorts quantity	1
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	4
USB Type-C ports quantity	3
Performance
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Video bandwidth	60 Hz
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
Design
Wired remote switch	Yes
Product colour	Silver
LED indicators	Yes
Housing material	Aluminium
Display
Built-in display	No
Power
Input current	3 A
Power source	DC
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
USB Power Delivery	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	Android
Technical details
USB hub	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	119 mm
Depth	143 mm
Height	23.8 mm
Weight	350 g
Packaging content
Cables included	USB Type-C
Manual	Yes
AC adapter included	Yes
Remote control included	Yes
