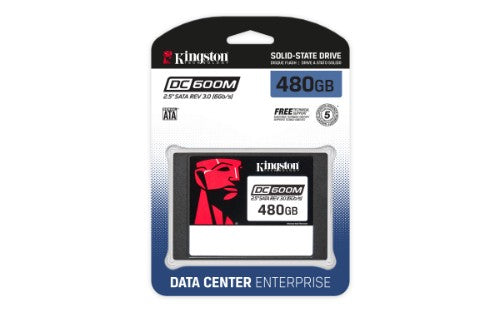

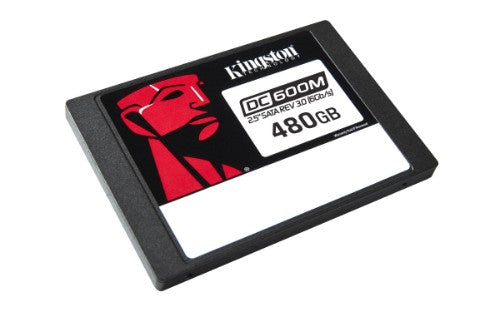

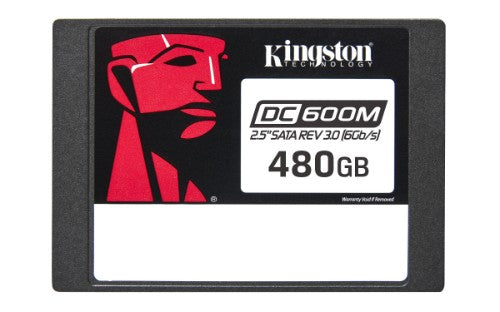

Kingston Technology 480G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD

480G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD

Key Features

• Designed for data center environments
• Hardware-based power loss protection
• Latency and IOPS consistency
• AES 256-bit encryption with DC600ME
• Capacities of up to 7.68TB*

Description

Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.

DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.

Capacities available from 480GB–7.68TB* to meet your data storage requirements.

Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).

AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.

Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*

Specifications

Features
Interface	Serial ATA III
Component for	Server/workstation
SSD capacity	480 GB
Read speed	560 MB/s
Write speed	470 MB/s
Memory type	3D TLC NAND
Data transfer rate	6 Gbit/s
Random read (4KB)	94000 IOPS
Random write (4KB)	41000 IOPS
Read latency	200 µs
Write latency	30 µs
Hardware encryption	No
Mean time between failures (MTBF)	2000000 h
TBW rating	876
SSD form factor	2.5"
H/W PLP function	Yes
Hot-Plug support	Yes
Target workload	Mixed Use (MU)
Use conditions	Server/Enterprise
Power
Power consumption (average)	1.45 W
Power consumption (write)	3.6 W
Power consumption (read)	1.6 W
Power consumption (idle)	1.3 W
Performance
Interface	Serial ATA III
Component for	Server/workstation
SSD capacity	480 GB
Read speed	560 MB/s
Write speed	470 MB/s
Memory type	3D TLC NAND
Data transfer rate	6 Gbit/s
Random read (4KB)	94000 IOPS
Random write (4KB)	41000 IOPS
Read latency	200 µs
Write latency	30 µs
Hardware encryption	No
Mean time between failures (MTBF)	2000000 h
TBW rating	876
Design
SSD form factor	2.5"
Weight & dimensions
Width	69.8 mm
Depth	100.1 mm
Height	7 mm
Weight	66 g
Package width	129.5 mm
Package depth	9.14 mm
Package height	184.2 mm
Package weight	88.19 g
Packaging data
Package width	129.5 mm
Package depth	9.14 mm
Package height	184.2 mm
Package weight	88.19 g
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	959.95 g
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
SSD form factor	2.5"
Logistics data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	959.95 g
Products per master (outer) case	10 pc(s)
Country of origin	China, Taiwan
Other features
Country of origin	China, Taiwan
