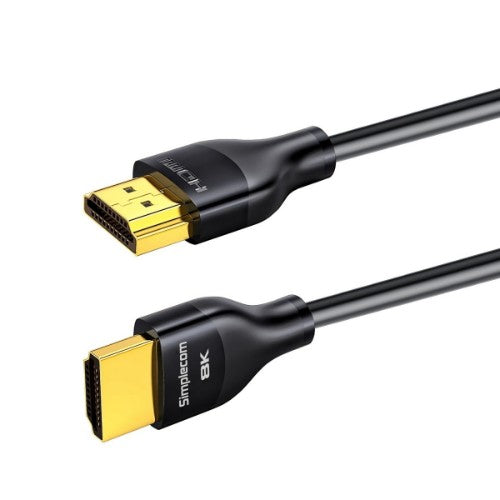

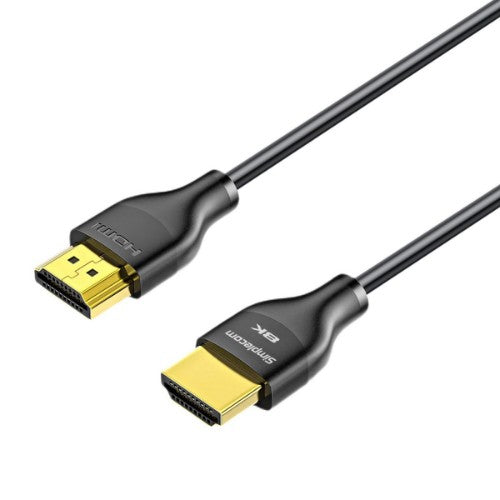

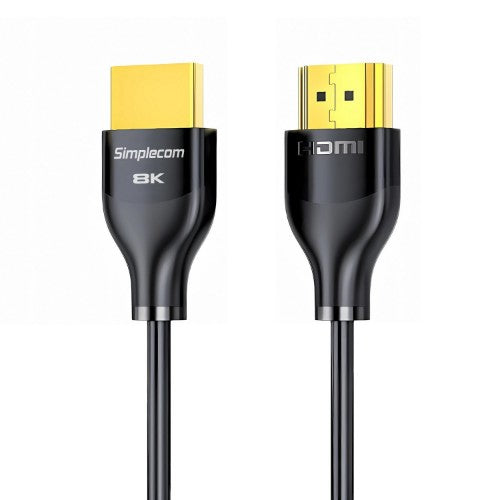

Simplecom CAH510 HDMI cable 1 m HDMI Type A (Standard) Black

HDMI 2.1, 48Gbps, 4K@120Hz (2160 x 3840), 8K@60Hz (4320 x 7680), 32AWG, 1m

Key Features

• Ultra High Speed HDMI cable supports video resolution up to 8K@60hz
• Fully compatible with HDMI 2.1 and capable of 48Gbps bandwidth
• Backwards compatible with all previous HDMI version devices
• Slim and flexible design for easy cable management
• Supports extended CEC functions, HDMI Ethernet Channel and eARC
• Supports Dynamic HDR for brighter, deeper, and more lifelike colours
• Supports high-bitrate audio formats such as Dolby TrueHD, Dolby Atmos, DTS:X, and more
• Gold-plated connector to resist corrosion and enhance signal transfer
• Graphene shielding with low interference and stable signal quality

Description

Simplecom CAH510 Ultra High Speed HDMI 2.1 Cable 48Gbps 8K@60Hz Slim Flexible 1M

Features

Ultra High Speed HDMI cable supports video resolution up to 8K@60hz
Fully compatible with HDMI 2.1 and capable of 48Gbps bandwidth
Backwards compatible with all previous HDMI version devices
Slim and flexible design for easy cable management
Supports extended CEC functions, HDMI Ethernet Channel and eARC
Supports Dynamic HDR for brighter, deeper, and more lifelike colours
Supports high-bitrate audio formats such as Dolby TrueHD, Dolby Atmos, DTS:X, and more
Gold-plated connector to resist corrosion and enhance signal transfer
Graphene shielding with low interference and stable signal quality
Specifications

HDMI Version: HDMI 2.1 (Backwards compatible)
Bandwidth: 48Gbps
Max Resolution Support: 4K@120Hz (2160 x 3840), 8K@60Hz (4320 x 7680)
Cable Diameter: 5mm
Conductor Gauge: 32AWG
Conductor Material: Copper
Connector Plating: Gold Plated
Shielding: Graphene + Aluminum foil
Operating Temperature: -20°C to 60°C
Cable Jacket: PVC
Cable Length: 1m

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	1 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Product colour	Black
AWG wire size	32
HDMI version	2.1
Data transfer rate	48 Gbit/s
3D	Yes
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Quantity per pack	1 pc(s)
Cable jacket material	Polyvinyl chloride (PVC)
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Weight & dimensions
Cable diameter	5 mm
Packaging content
Quantity per pack	1 pc(s)
