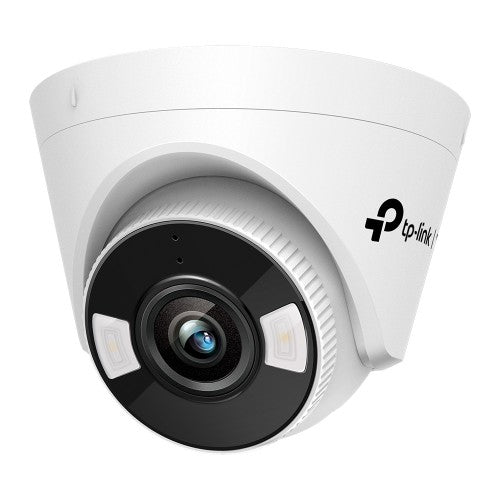

TP-Link VIGI 5MP Full-Color Turret Network Camera

VIGI 5MP Full-Color Turret Network Camera, 4 mm

Key Features

• 5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
• People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency§
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
• Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
• Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB)

Description

All The Colors, All The Time
5MP Full-Color Turret Network Camera

24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

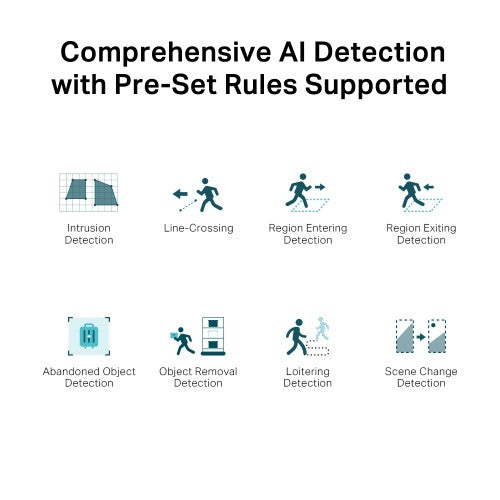

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time

Active Defense
Warn potential intruders instantly with sound and light when abnormal events

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Plug & Play with
One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Built-in light	Yes
Dynamic range	120 dB
Design
Form factor	Turret
Product colour	Black, White
Mounting type	Ceiling
Housing material	Plastic
Camera
Minimum illumination	0.005 lx
Tilt angle range	0 - 85°
Pan range	0 - 360°
Camera shutter speed	1/3 - 1/10000 s
Lens viewing angle, horizontal	90°
Lens viewing angle, vertical	48°
Lens viewing angle, diagonal	107°
Number of Privacy masking areas	4
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Number of sensors	1
Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera)	Yes
Lens system
Number of lenses	1
Maximum aperture number	1.6
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Identify distance	8 m
Fixed focal length	4 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Variable Bit Rate (VBR)
Bit rate	64 Kbps - 6 Mbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Maximum resolution	2880 x 1620 pixels
Video formats supported	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Supported video modes	720p, 1080p, 2560p, 2880p
Frame rate	30 fps
Video streaming	Yes
Total megapixels	5 MP
Video recording	Yes
Audio
Voice codecs	G.711
Signal-to-Noise Ratio (SNR)	52 dB
Sample rate	8 kHz
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Bit rate range	0 - 64 Kbit/s
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Client interoperability	VIGI App, VIGI Security Manager, Web UI
Number of simultaneous live view channels	6 channels
Live view	Yes
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Maximum memory card size	512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Security
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Digest authentication	Yes
Management features
Web browser	Yes
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	DC
Power consumption (Power over Ethernet (PoE))	10.5 W
Power consumption (max)	9 W
DC-in jack	Yes
DC output voltage	12
Certificates
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Package type	Box
Height	84 mm
Diameter	12.3 cm
Weight	240 g
Package width	163 mm
Package depth	163 mm
Package height	116 mm
Package weight	400 g
Packaging data
Package type	Box
Package width	163 mm
Package depth	163 mm
Package height	116 mm
Package weight	400 g
Packaging content
Number of cameras	1
Package type	Box
