TP-Link VIGI C340I 4MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

VIGI 4MP Outdoor IR Bullet Network Camera, 2560 × 1440, 1/3” Progressive Scan CMOS, 4 mm, F 2.0, IR Cut Filter, IP67

Key Features

• 4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
• Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
• Waterproof: Reliable IP67 for stable outdoor performance
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
• 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs
• Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager

Description

Security Never Shuts Down
4MP Outdoor IR Bullet Network Camera

Looking for a higher resolution? It's right here.

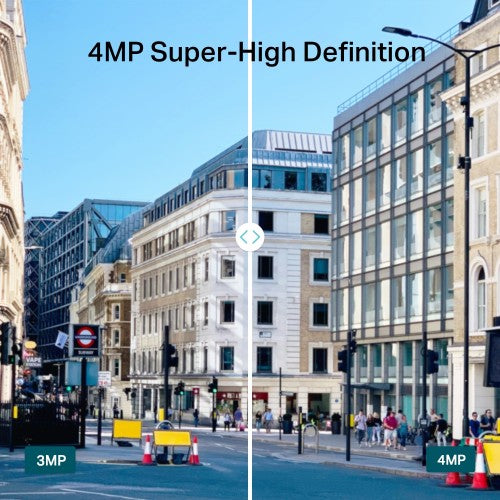

4MP Super-High Definition
The VIGI C340I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Never miss a detail.

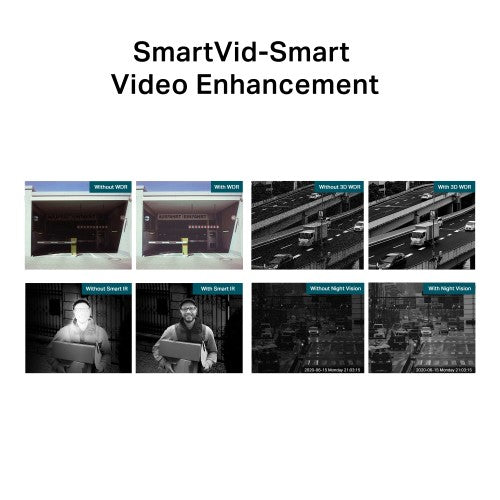

SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

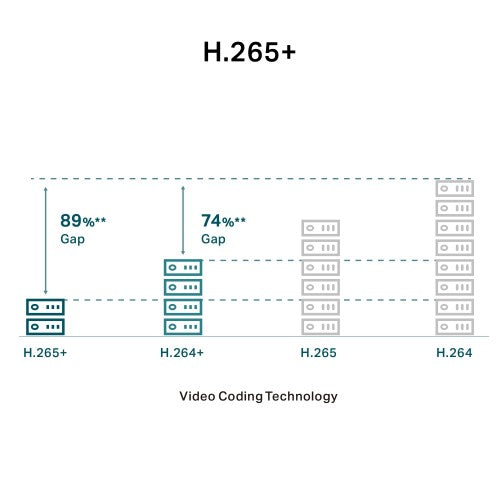

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

IP67 for Better Protection
Capable of withstanding temperatures from -30–60 °C (-22–140 °F), VIGI performs well even in harsh
environments with rain and dust.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Choose the right lens for your security.
2.8/4/6 mm lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C340I comes with three different lens versions to better suit your security needs.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Design
Form factor	Bullet
Product colour	Black, White
Mounting type	Ceiling/Wall/Pole
International Protection (IP) code	IP67
Housing material	Plastic
Camera
Minimum illumination	0.01 lx
Tilt angle range	-90 - 90°
Pan range	-90 - 90°
Camera shutter speed	1/3 - 1/10000 s
Lens viewing angle, horizontal	75.1°
Lens viewing angle, vertical	41.5°
Lens viewing angle, diagonal	88.7°
Number of Privacy masking areas	4
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 3 mm (1 / 3")
Lens system
Number of lenses	1
Maximum aperture number	2
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Identify distance	8 m
Fixed focal length	4 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm
Video
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	256 Kbps - 4 Mbps
Back Light Compensation (BLC)	Yes
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes	240p, 480p, 720p, 1080p, 1280p, 1440p
Video compression formats	H.264, H.264+, H.265, H.265+
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
3D positioning	Yes
Audio
Signal-to-Noise Ratio (SNR)	52 dB
Network
Bluetooth	No
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels	3 channels
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Region entrance detection, Vehicle detection, Region exiting detection, Crossing line
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Mirror	Yes
Password reset via email	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Network access storage (NAS)	Yes
Management features
Web browser	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection
Power
Power source type	DC, PoE
Power consumption (typical)	1.32 W
Power consumption (max)	5 W
DC-in jack	Yes
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Package type	Box
Width	73 mm
Height	71 mm
Length	174 mm
Weight	200 g
Package width	128 mm
Package depth	218 mm
Package height	103 mm
Package weight	360 g
Packaging data
Package type	Box
Package width	128 mm
Package depth	218 mm
Package height	103 mm
Package weight	360 g
Sustainability
Sustainability compliance	Yes
Compliance certificates	BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA
Packaging content
Number of cameras	1
Package type	Box
Mounting kit	Yes
Manual	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
