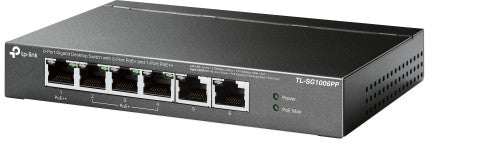

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Key Features

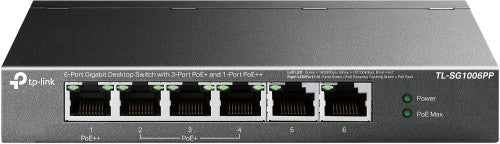

• 6× 10/100/1000 Mbps RJ45 ports

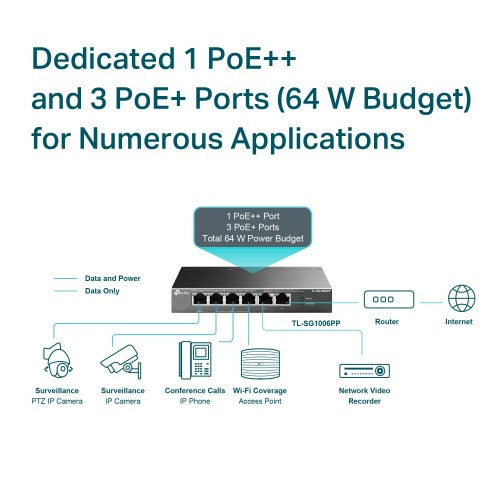

• With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
• Supports PoE Power up to 64 W for all PoE ports*

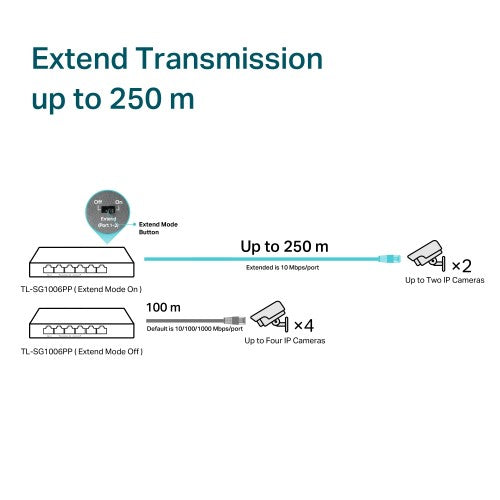

• Up to 250m data and power transmitting range under Extend Mode**

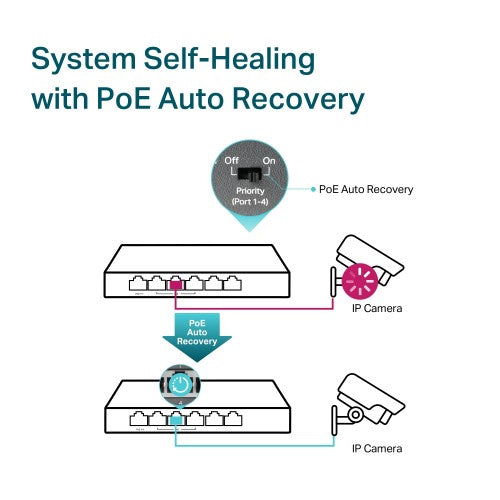

• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

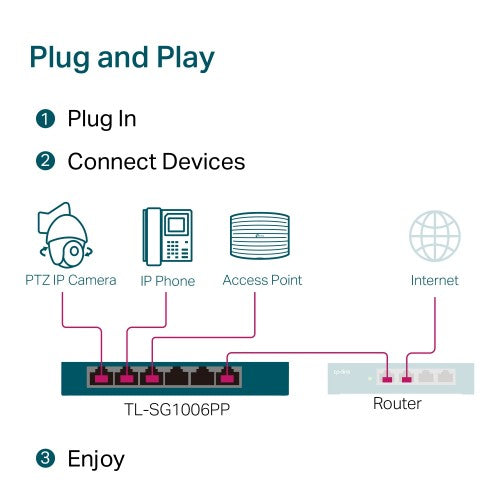

• Plug and Play, no configuration and installation required

Description

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	12 Gbit/s
Store-and-forward	Yes
Forwarding rate	8.928 Mpps
Security
IGMP snooping	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Certification	FCC, CE, RoHS
Performance
Fanless	Yes
Stackable	Yes
Auto-negotiation	Yes
Power
Power consumption (max)	71.46 W
Power supply included	Yes
Power consumption (typical)	4.75 W

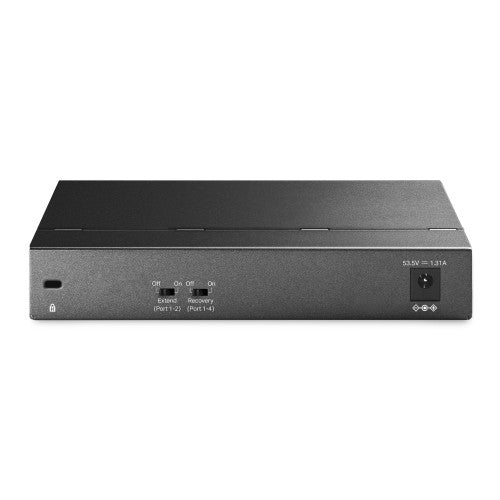

Input current	1.31 A
DC input voltage	53.5 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	64 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	16.2 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Quick start guide	Yes
Certificates
Certification	FCC, CE, RoHS
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
