TP-Link Archer AX1800 High Gain Wireless USB Adapter

IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz, USB 3.0, MU-MIMO, WPA3

Key Features

• Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity
• Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming
• Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC
• Improved Security - WPA3 provides the latest security enhancements for personal password protection
• SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0

Description

Stay Fast with WiFi 6 Even in a Crowded Network
AX1800 High Gain Wireless USB Adapter

Upgrades Your PC with Wi-Fi 6
Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

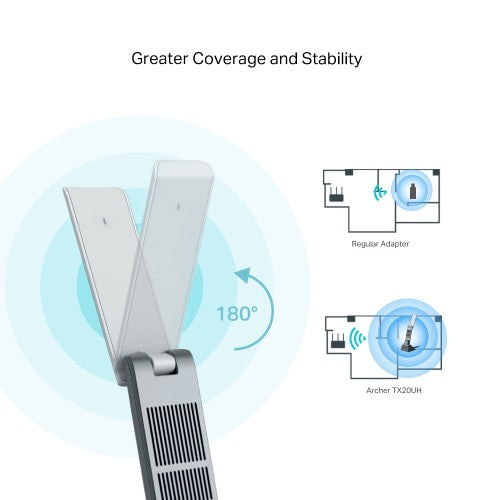

Greater Coverage and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Lower Latency, Higher Efficiency, and Less Congestion

MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.

Easy Use with a Flexible Design

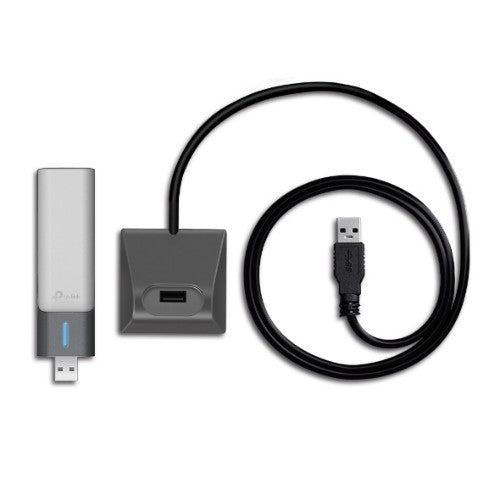

A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.

Specifications

Ports & interfaces
Internal	No
Connectivity technology	Wired
Host interface	USB
Interface	WLAN
Bandwidth
Maximum data transfer rate	1201 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi	Yes
Antenna
Antenna	Yes
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Maximum data transfer rate	1201 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Design
Internal	No
Antenna	Yes
LED indicators	Status
Component for	PC
System requirements
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	30.5 mm
Depth	14.8 mm
Height	111.7 mm
Performance
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10, Windows 11
