Deepcool

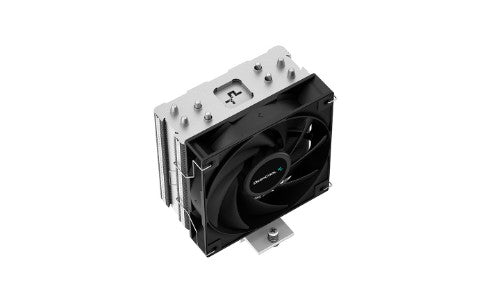

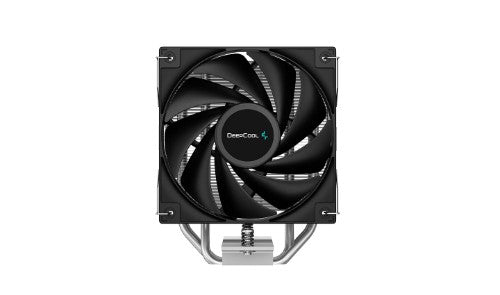

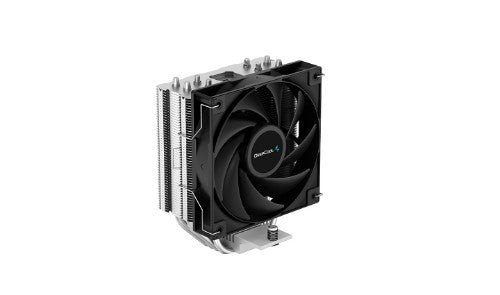

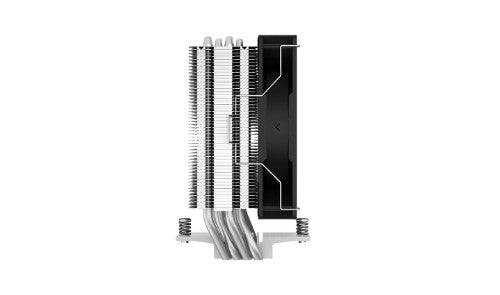

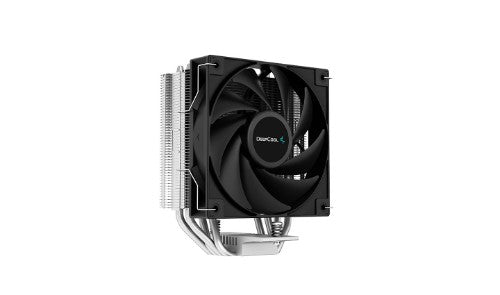

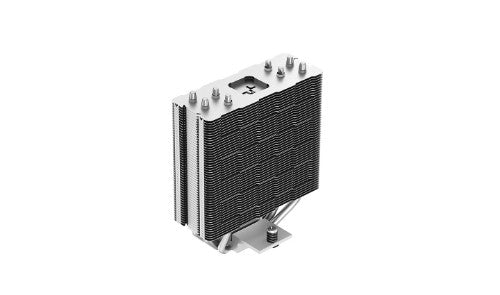

DeepCool AG400 Processor Air cooler 12 cm Aluminium, Black 1 pc(s)
Regular price
$38.67 AUD
Regular price
Sale price
$38.67 AUD
Unit price
per
Use the contact form below to check availability.
Intel/AMD, 500-2000 RPM, Ø6 mm×4 pcs, 75.89 CFM, 2.53 mmAq, 31.6 dB, 4-pin PWM, 12 VDC, 0.17 A, 2.04 W, 125×92×150 mm, 614 g
GAMMAXX SERIES AG400
Efficient 4 Heat Pipes CPU Cooler
The DeepCool AG400 is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
Stellar Thermal Performance

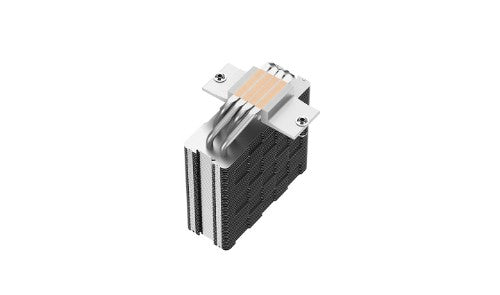

Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.
FAN LOCK MOUNTING SYSTEM
When installing the AG400, the fan does not need to be disassembled during the process, simplifying and saving time.
Prime Compatibility
The AG400 maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation. Its superb thermal performance also allows it to be compatible with demanding processing workloads.
Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

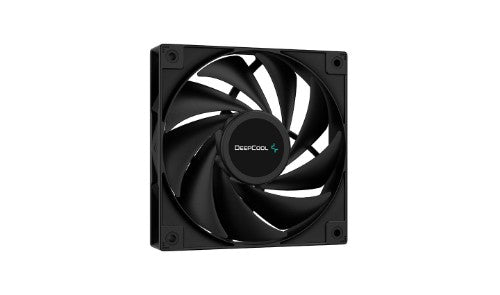

High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
Simple and Secure
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Description
The DeepCool AG400 is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.GAMMAXX SERIES AG400
Efficient 4 Heat Pipes CPU Cooler
The DeepCool AG400 is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
Stellar Thermal Performance
Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.
FAN LOCK MOUNTING SYSTEM
When installing the AG400, the fan does not need to be disassembled during the process, simplifying and saving time.
Prime Compatibility
The AG400 maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation. Its superb thermal performance also allows it to be compatible with demanding processing workloads.
Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.
High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
Simple and Secure
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Noise level (high speed) | 31.6 dB |
| Maximum airflow | 75.89 cfm |
| Maximum air pressure | 2.53 mmH2O |
| Number of heat pipes | 4 |
| Number of fans | 1 fan(s) |
| Heat pipes diameter | 6 mm |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Hydro bearing |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2000 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Number of fans | 1 fan(s) |
| Product colour | Aluminium, Black |
| Illumination LED | No |
| Radiator material | Aluminum |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 2.04 W |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 92 mm |
| Height | 150 mm |
| Weight | 614 g |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Heat pipes diameter | 6 mm |
| Radiator width | 12 cm |
| Radiator depth | 9.2 cm |
| Radiator height | 15 cm |
| Technical details | |
| Fan connector | 4-pin |
| Illumination LED | No |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
