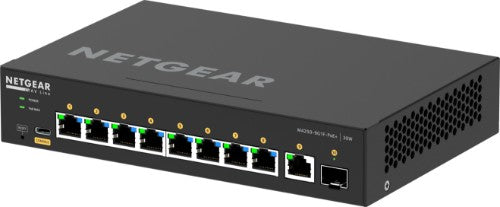

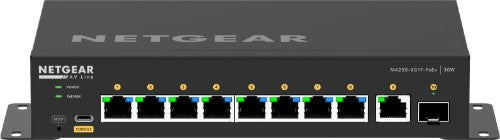

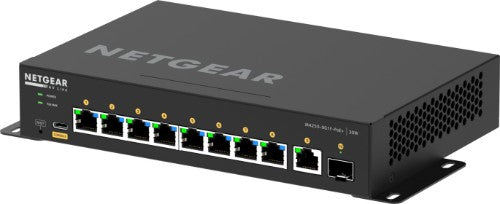

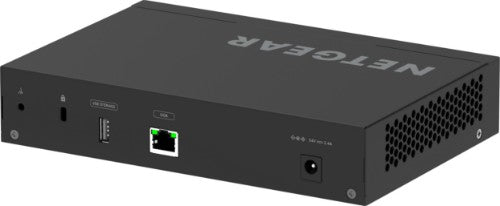

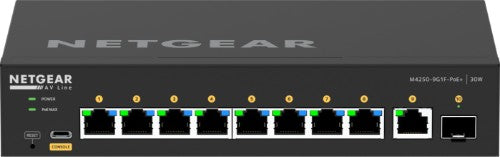

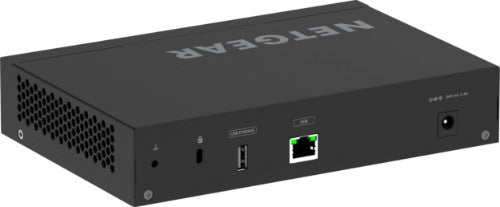

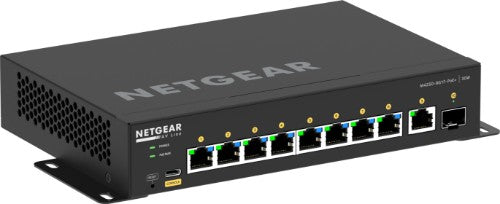

NETGEAR GSM4210PD-100AUS network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch

Description

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Specifications

Management features
Multicast support	Yes
Switch layer	L2/L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
IPv4 multicast entries	2000
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Full duplex	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Data transmission
MAC address table	16000 entries
Switching capacity	24 Gbit/s
Store-and-forward	Yes
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Multicast features
Multicast support	Yes
IPv4 multicast entries	2000
Design
Rack mounting	Yes
Product colour	Black
LED indicators	PoE, Power, Status
Performance
Processor frequency	1250 MHz
Noise level	30.06 dB
Internal memory	2048 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Power
Power supply included	Yes
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	110 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	559.555 BTU/h
Weight & dimensions
Width	210 mm
Depth	140 mm
Height	40 mm
Weight	967 g
Packaging data
User guide	Yes
Manual	Yes
Packaging content
User guide	Yes
Manual	Yes
