TP-LINK

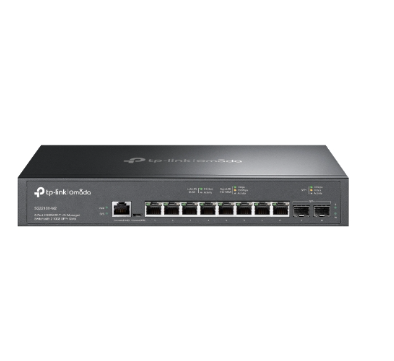

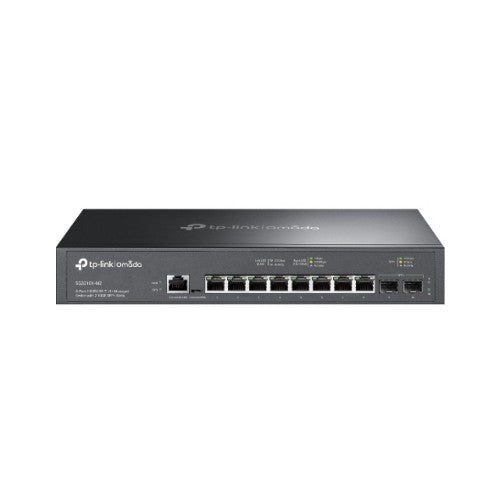

TP-Link Omada 8-Port 2.5G L2+ Managed Switch
Regular price
$385.33 AUD
Regular price
Sale price
$385.33 AUD
Unit price
per
Use the contact form below to check availability.
8x 2.5 Gbps RJ45, 2x 10G SFP+ Slots, 80 Gbps, 59.52 Mpps, 16 K MAC, 9 KB Jumbo, 294 × 180 × 44 mm
SG3210X-M2
10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs
Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Key Features
- 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices
- 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Description
Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic NetworkSG3210X-M2
10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs
Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/micro-USB |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Number of VLANs | 4000 |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 16000 entries |
| Switching capacity | 80 Gbit/s |
| Number of static routes | 48 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Packet buffer memory | 12 MB |
| Static route | Yes |
| Forwarding rate | 59.52 Mpps |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 12 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 15 W |
| Power source | AC |
| Power connector | AC-in jack |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 51.18 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Package width | 528 mm |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package weight | 2.84 kg |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Other features | |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
