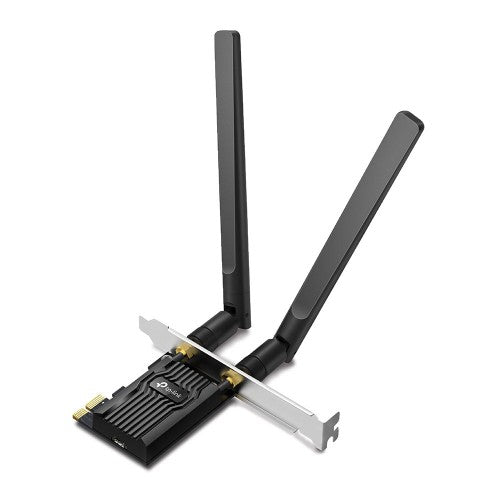

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

AX1800 Wi-Fi 6, 802.11ax, 2.4/5 GHz, Bluetooth 5.2, 55 x 36 x 11.5 mm

Key Features

• Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
• Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
• Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
• Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Description

Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security

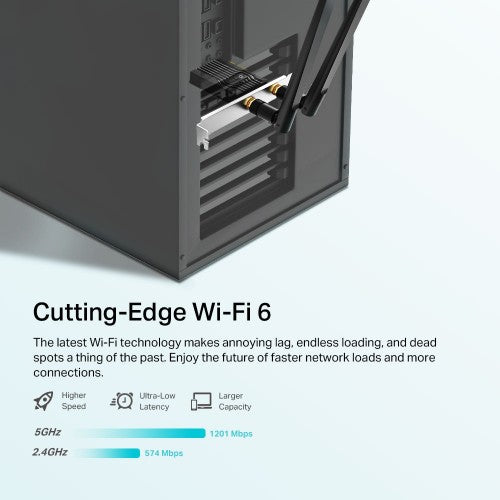

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.

More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

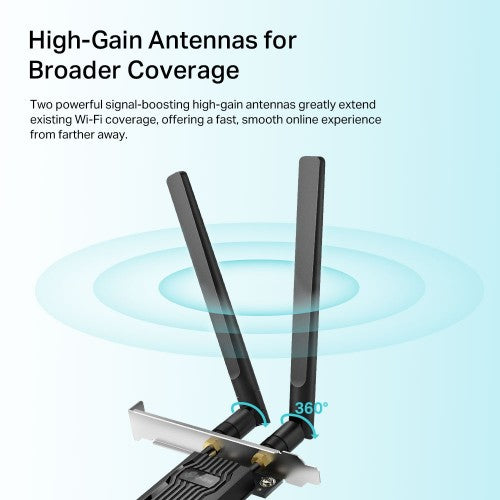

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

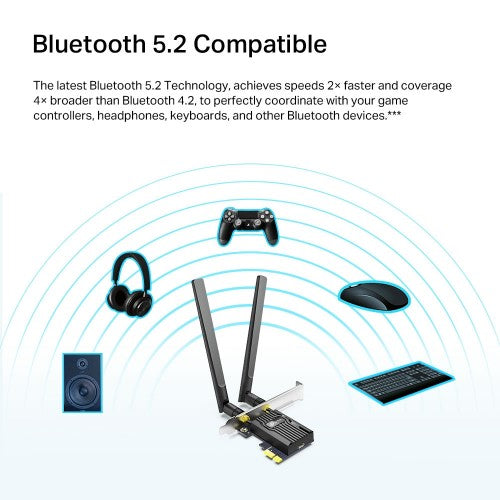

Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.

Specifications

Ports & interfaces
Internal	Yes
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
Bandwidth
Maximum data transfer rate	1800 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,574,867,1200 Mbit/s
Antenna
Antenna	Yes
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Maximum data transfer rate	1800 Mbit/s
Wi-Fi	Yes
Bluetooth version	5.2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
WLAN data transfer rates supported	11,54,300,574,867,1200 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth	Yes
Design
Internal	Yes
Product colour	Black
Antenna	Yes
Plug and Play	Yes
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	27 dBm
Operating modes	Infrastructure mode
Component for	PC/Server
Antenna design	External
System requirements
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	120.8 mm
Depth	78.5 mm
Height	20.9 mm
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	220 g
Packaging data
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	220 g
Quick installation guide	Yes
Mounting brackets included	Yes
Packaging content
Quick installation guide	Yes
Mounting brackets included	Yes
Resource CD	Yes
Bluetooth header cable	Yes
Performance
Plug and Play	Yes
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Other features
Bluetooth version	5.2
Bluetooth	Yes
