Ubiquiti

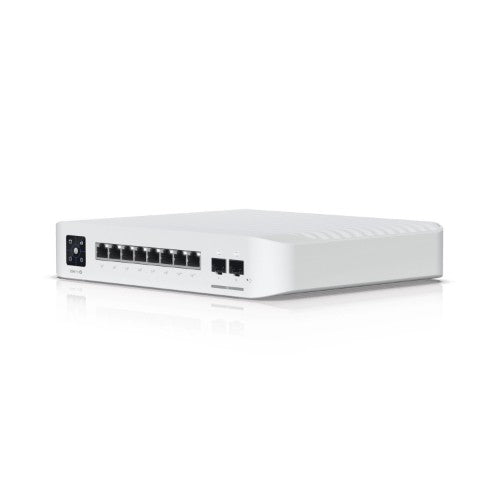

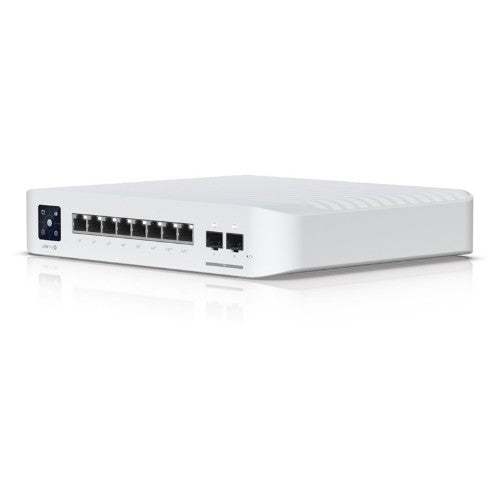

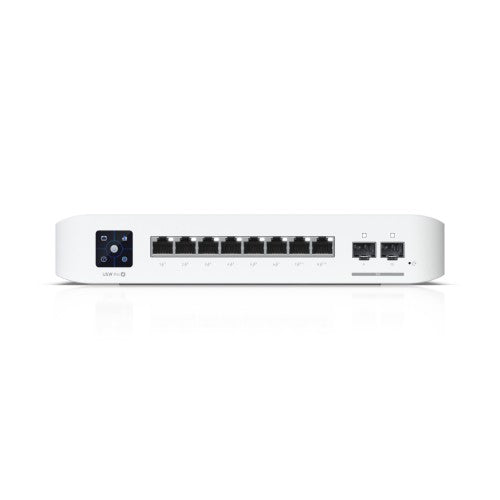

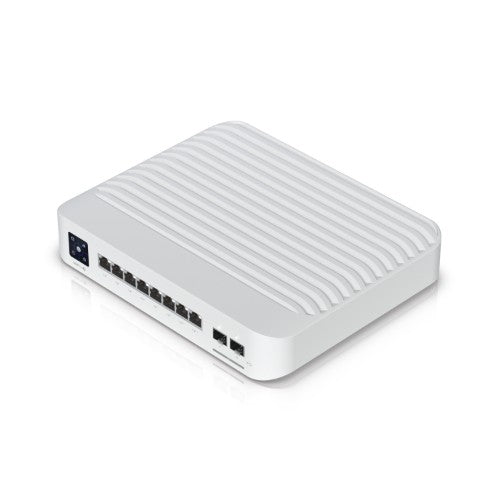

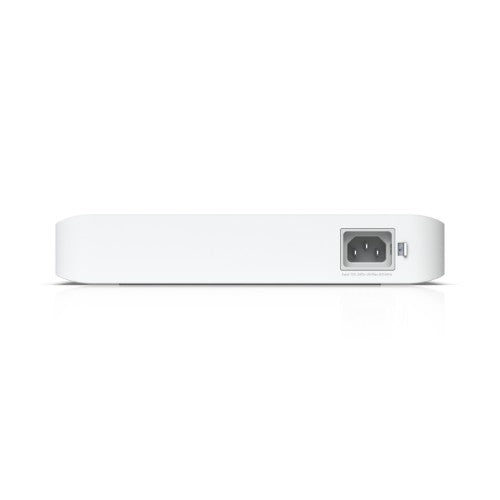

Ubiquiti UniFi USW-PRO-8-POE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Regular price
$698.67 AUD
Regular price
Sale price
$698.67 AUD
Unit price
per
Use the contact form below to check availability.
GbE RJ-45 ports, 56 Gbps, 100-240 V, 30 W, 120 W PoE
Key Features
- (6) GbE PoE+ ports
- (2) GbE PoE++ ports
- (2) 10G SFP+ ports
- 120W total PoE availability
Description
An 8-port, Layer 3 switch with PoE+ and PoE++ output.Specifications
| Management features | |
|---|---|
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 100BASE-FX, 100BASE-TX |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 100BASE-FX, 100BASE-TX |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Half duplex | Yes |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Throughput | 28 Gbit/s |
| Security | |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server |
| Design | |
| Product colour | White |
| Form factor | 1U |
| LED indicators | Activity, Link, PoE, Speed, System |
| Housing material | Metal, Plastic |
| Certification | CE, FCC, IC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Input current | 2 A |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 248 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
| Packaging content | |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certificates | |
| Certification | CE, FCC, IC |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging data | |
| Manual | Yes |
