Ubiquiti

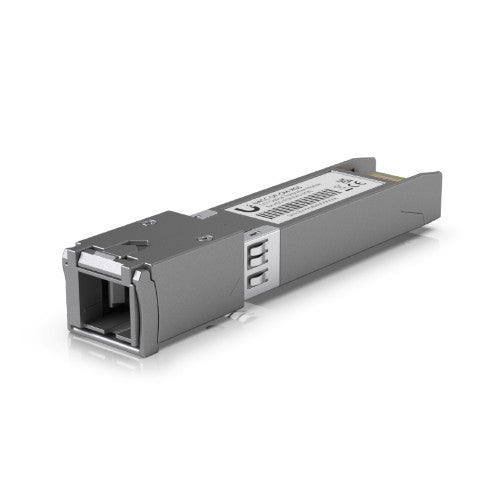

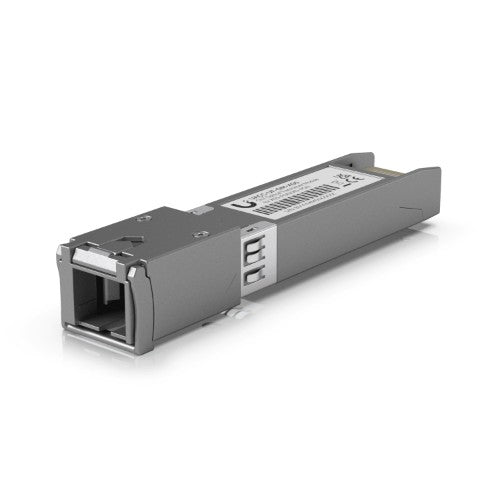

Ubiquiti UISP UACC-UF-OM-XGS network transceiver module Fiber optic 10000 Mbit/s

$324.00 AUD
$324.00 AUD
Sale Sold out

Use the contact form below to check availability.

XG/XGS-PON, Optical, Single-mode, 10 Gbps, up to 20 km, 2.6W

Key Features

  • 10 Gbps throughput
  • Compatible with UISP Fiber OLT XGS, UISP Fiber XG/XGS
  • Supports connections up to 20 km

Description

10 Gbps optical transceiver module designed for the UISP Fiber OLT XGS.

Specifications

Network
SFP transceiver type Fiber optic
Maximum data transfer rate 10000 Mbit/s
Fiber optic connector SC/UPC
Performance
Product colour Silver
SFP transceiver type Fiber optic
Tx wavelength (min) 1.577 nm
Tx wavelength (max) 1.577 nm
Rx wavelength (max) 1.27 nm
Maximum data transfer rate 10000 Mbit/s
Fiber optic connector SC/UPC
Maximum transfer distance 20000 m
Tx power (min) 4 dBmW
Tx power (max) 7 dBmW
Rx power (min) -9 dBmW
Rx power (max) -26 dBmW
Single-mode fiber (SMF) supported Yes
Features
Product colour Silver
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Technical details
Sustainability compliance Yes
Compliance certificates CE, UKCA
Logistics data
Quantity per pack 1 pc(s)
