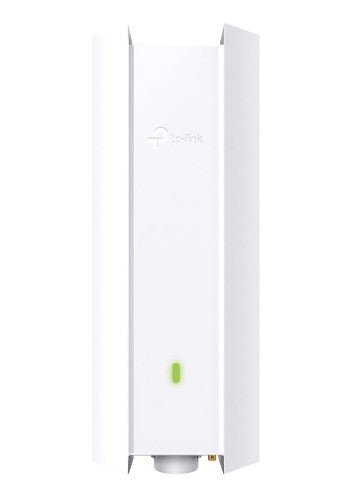

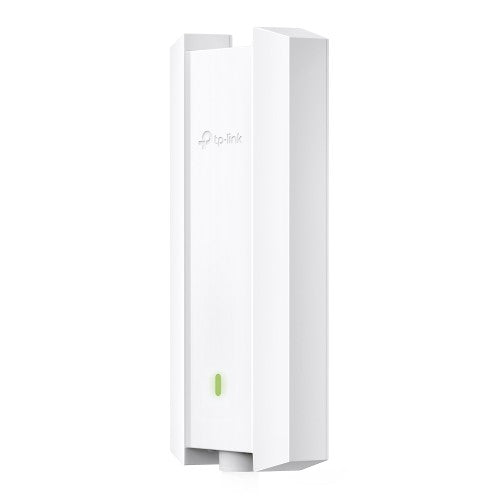

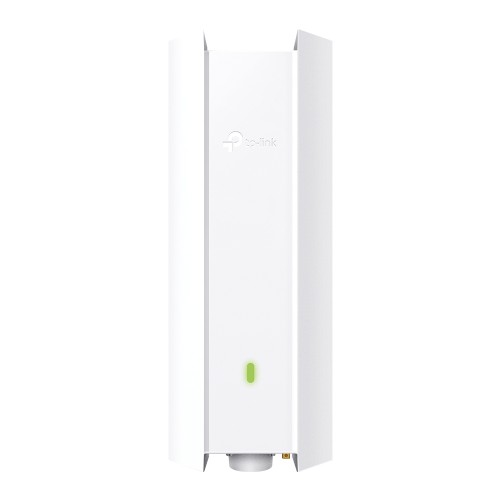

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 1x Gigabit LAN, 48V Passive PoE, 280.4 x 106.5 x 56.8 mm

Key Features

• Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
• High-density connectivity up to 1,000+ clients
• Long-range coverage with the high-power amplifier and smart antennas
• Advanced Functions: Centralized management, Omada mesh, and seamless roaming
• PoE+ Powered: Supports both 802.3at PoE (adapter not included)

Description

Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.

Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.

Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.

Flexible Deployment with Omada Mesh and PoE Support

Seamless Integration into Omada SDN

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Automatic channel selection	Yes
Syslog	Yes
Maximum data transfer rate	1800 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	1020 user(s)
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Certification	CE, FCC, RoHS
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Automatic channel selection	Yes
Maximum data transfer rate	1800 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	1020 user(s)
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Transmitting power (FCC)	< 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Transmitting power (CE)	< 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
Automatic channel scanning	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
BeamForming	Yes
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering	Yes
Access Control List (ACL)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Syslog	Yes
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0

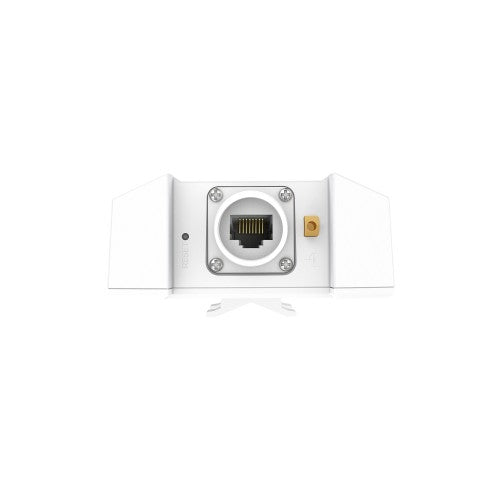

Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100/1000Base-T(X)
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Design

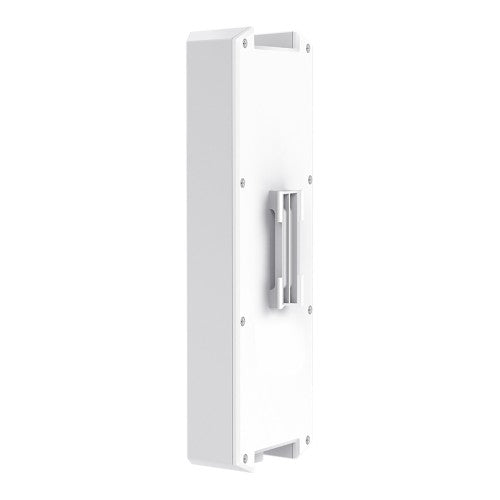

Placement	Pole
Reset button	Yes
LED indicators	Yes
Product colour	White
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Certificates
Certification	CE, FCC, RoHS
Software
Automatic channel scanning	Yes
Access Control List (ACL)	Yes
Weight & dimensions
Width	280.4 mm
Depth	106.5 mm
Height	56.8 mm
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
