Ubiquiti USW-Pro-Max-24-PoE L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

400W, 8 x 2.5 GbE PoE++, 16 x GbE RJ45 (8x PoE+ and 8x PoE++), 2 x 10G SFP+, SGCC steel, 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")

Key Features

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (8) 2.5 GbE PoE++ ports
• (16) GbE ports including (8) PoE+ and (8) PoE++
• (2) 10G SFP+ ports
• DC power backup ready
• 400W total PoE availability
• Managed with UniFi Network 8.0.24 and later

Description

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

Specifications

Management features
Reset button	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP+ modules quantity	2
Gigabit Ethernet (copper) ports quantity	16
Power connector	AC/DC
2.5G Ethernet (copper) ports quantity	8
10G Ethernet (copper) ports quantity	2
Network
VLAN support	Yes
10G support	Yes
Data transmission
Switching capacity	112 Gbit/s
Throughput	56 Gbit/s
Design
Reset button	Yes
Rack mounting	Yes
Stackable	Yes
Display type	LCM
Backlight display	Yes
Product colour	Grey
LED indicators	Link, Network, Speed, Status
Housing material	SGCC
Power
Power consumption (max)	50 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power source	AC/DC
Power connector	AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	15.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet (PoE) voltage	57 V
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	442.4 mm
Depth	325 mm
Height	43.7 mm
Weight	5.1 kg

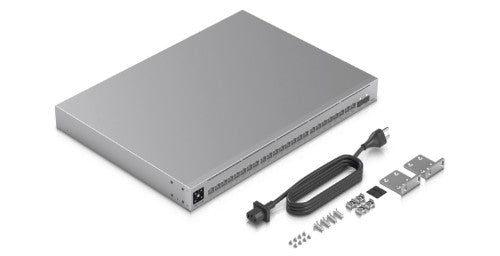

Packaging content
Rack mount kit	Yes
Cables included	Power
Sustainability
Sustainability compliance	Yes
Performance
Stackable	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC)
Packaging data
Rack mount kit	Yes
Cables included	Power
