Ubiquiti
Ubiquiti UniFi Pro Max 48 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Regular price
$2,829.33 AUD
Regular price
Sale price
$2,829.33 AUD
Unit price
per
Use the contact form below to check availability.
720W, 32 x GbE RJ45, 16 x 1/2.5 GbE RJ45, 4 x 10G SFP+, 224 Gbps, 1.3" touchscreen, SGCC steel, 1U
Key Features

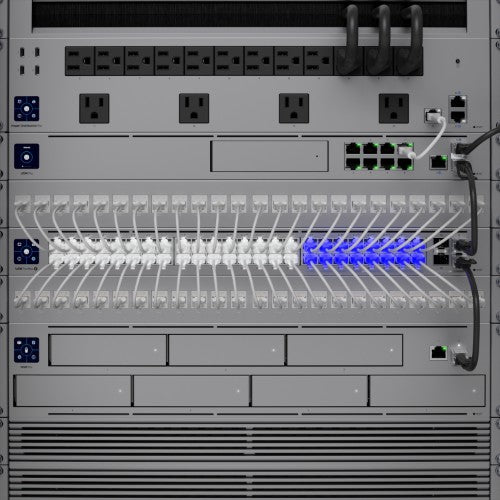

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
- (32) GbE ports including (24) PoE+ and (8) PoE++
- (4) 10G SFP+ ports
- DC power backup ready
- 720W total PoE availability
- Managed with UniFi Network 8.0.24 and later
Description
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Network | |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Static route | Yes |
| Forwarding rate | 167 Mpps |
| Throughput | 112 Gbit/s |
| Number of VLANs | 1000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Design | |
| Reset button | Yes |
| Rack mounting | Yes |
| Display type | LCM |
| Backlight display | Yes |
| Product colour | Grey |
| Form factor | 1U |
| LED indicators | System |
| Housing material | SGCC |
| Power | |
| Power consumption (max) | 820 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 341.2 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
| Sustainability | |
| Sustainability compliance | Yes |
| Performance | |
| Packet buffer memory | 2 MB |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging data | |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Power |
