Mercusys 8-Port Gigabit Desktop Switch

8× 10/100/1000 Mbps Ports, 16 Gbps, 8K MAC, Jumbo 15 KB, 158 x 99.1 x 25.2mm

Key Features

• Full Gigabit Ports: 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Multiple Installation Operation: Steel housing, desktop or wall-mounting design
• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort
• Power Saving: Green Ethernet technology saves power

Description

More Efficient Transmission
Longer Usage Life

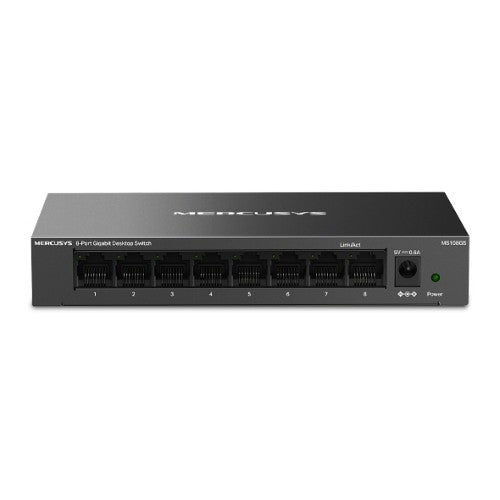

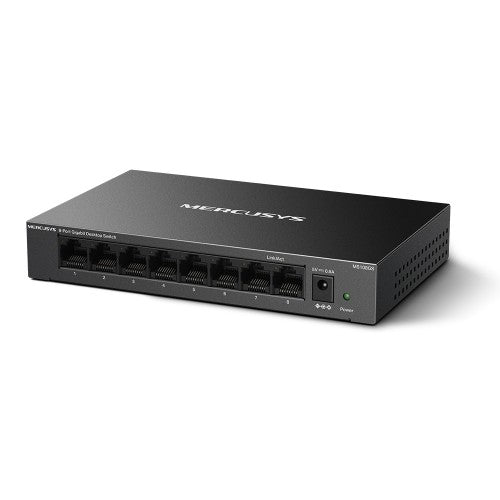

8-Port Gigabit Desktop Switch

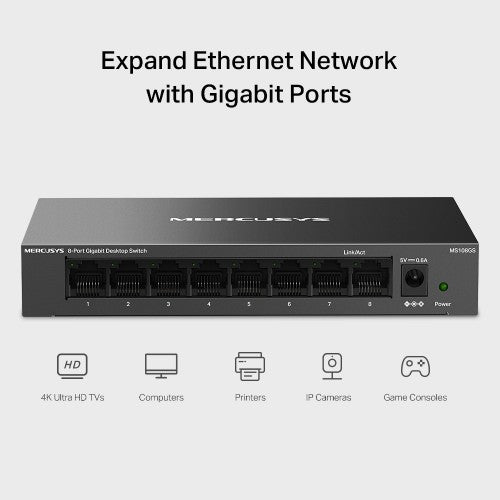

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

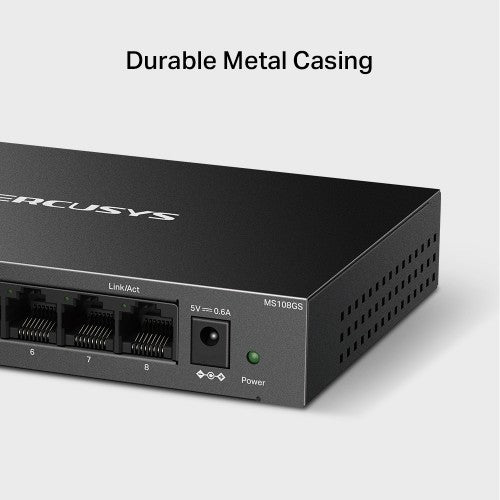

Durable, Silent, and Flexible
MS108GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Optical fiber
Transmission distance (max)	0.1 km
Data transmission
Jumbo frames	15000
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	0.5 MB
Design
Wall mountable	Yes
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Housing material	Metal
Certification	CE, RoHS
Performance
Fanless	Yes
Stackable	No
Packet buffer memory	0.5 MB
Auto-negotiation	Yes
Power
Power consumption (max)	4.22 W
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50/60 Hz
Input current	0.6 A
DC input voltage	5 V
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	14.348 BTU/h
Weight & dimensions
Width	158 mm
Depth	99.1 mm
Height	25.2 mm
Packaging content
Quick start guide	Yes
Manual	Yes
Cables included	AC
Certificates
Certification	CE, RoHS
Packaging data
Quick start guide	Yes
Manual	Yes
Cables included	AC
