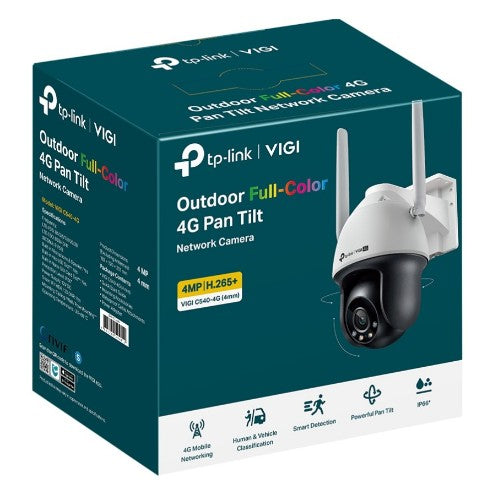

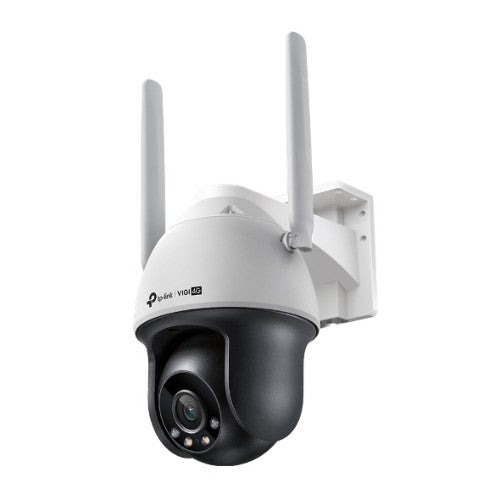

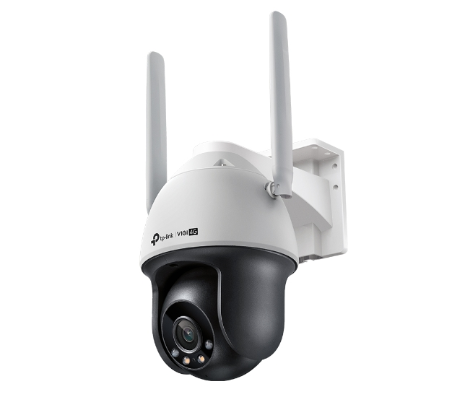

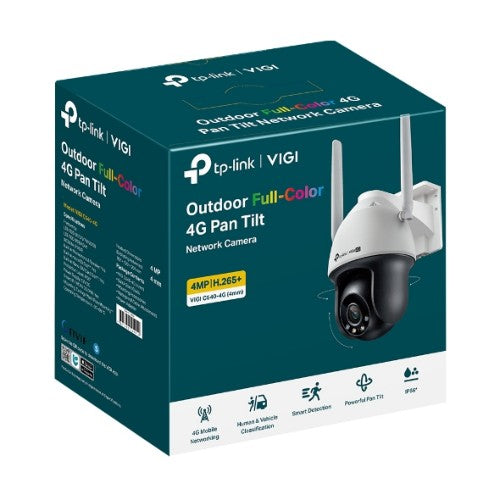

TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

1/3.06", CMOS, 4G, F1.6, 4mm

Key Features

• 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
• 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness
• 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available
• 360° Monitoring: Cover every corner and eliminate blind spots
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
• Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
• IP66 Waterproof: Reliable IP66 for stable outdoor performance
• Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client
• Onboard Storage: Support on-board storage up to 256 GB (SD card slot)

Description

Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Performance
Auto patrol mode	Yes
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	RCM, BSMI, VCCI, NTRA, KC
Luminous flux	0.005 lm
Design
Form factor	Turret
Product colour	Black, White
Mounting type	Ceiling/wall
International Protection (IP) code	IP66
Housing material	Plastic
Camera
Tilt angle range	0 - 120°
Tilt speed	44 °/sec
Pan range	0 - 348°
Pan speed	44 °/sec
Camera shutter speed	1/3 - 1/10000 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	80°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	94°
Number of Privacy masking areas	4
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 3.06 mm (1 / 3.06")
Lens system
Number of lenses	1
Maximum aperture number	1.6
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Identify distance	8 m
Minimum aperture number	1.6
Zoom capability	Yes
Lens diameter	4 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR/White
Number of illumination LEDs	4
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate control	Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	256 Kbps - 4 Mbps
Noise reduction technology	3D noise reduction
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video compression formats	H.264, H.264+, H.265, H.265+
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
3D positioning	Yes
Audio
Signal-to-Noise Ratio (SNR)	52 dB
Sample rate	8 kHz
Built-in speaker(s)	Yes
Built-in microphone	Yes
Bit rate range	64 - 64 Kbit/s
Network
4G standard	LTE-TDD & LTE-FDD
Ethernet interface type	Fast Ethernet
Ethernet LAN	Yes
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
SIM card slot	Yes
Number of simultaneous live view channels	3 channels
Live view	Yes
SIM card type	NanoSIM
3G standards	WCDMA
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in HDD	No
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Human detection
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Mirror	Yes
Digest authentication	Yes
Management features
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection
Power
Power source type	DC
DC output voltage	12
Certificates
Certification	RCM, BSMI, VCCI, NTRA, KC
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	120 mm
Depth	182 mm
Height	201 mm
Weight	690 g
Package width	163 mm
Package depth	213 mm
Package height	243 mm
Package weight	1.16 kg
Packaging data
Package width	163 mm
Package depth	213 mm
Package height	243 mm
Package weight	1.16 kg
Features
Basic event	Motion Detection, Camera Tampering Detection, Exception
Sustainability
Compliance certificates	CE, RoHS
Packaging content
Number of cameras	1
Mounting kit	Yes
Technical details
Compliance certificates	CE, RoHS
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
