TP-Link EAP211-BRIDGE KIT bridge/repeater Network bridge 867 Mbit/s White

3x Gigabit Ethernet Ports, 12V DC / 24V Passive PoE, IP65, 1000m, IEEE 802.11 a/b/g/n/ac, 5 GHz: Up to 867 Mbps

Key Features

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
• Ideal for long-range wireless transmission up to 1 km.*2
• Auto-pairing and agile LEDs for efficient deployment

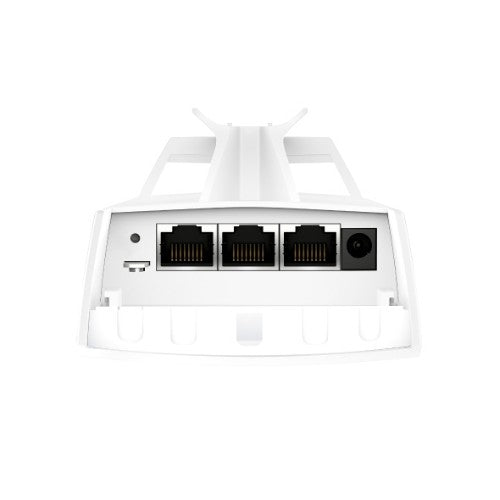

• 3× Gigabit Ethernet ports for more high-speed IP camera connections
• Supports Omada SDN for remote and centralized management
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
• Supports Passive PoE for flexible deployment (adapter included)

Description

TP-Link Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point (EAP211-Bridge KIT)
• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-range wireless transmission up to 5 km (EAP215-Bridge KIT) & up to 1 km (EAP211-Bridge KIT).
• Auto-pairing and agile LEDs for efficient deployment.
• 3× Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralized management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
• Supports Passive PoE for flexible deployment (adapter included).

Warranty Period: 3-Year

Specifications

Data transmission
Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	1000 m
Antenna
Antenna gain level (max)	7 dBi
Antenna design	Internal
Antenna type	2x2
Wireless LAN features
Frequency band	5 GHz
Antenna gain level (max)	7 dBi
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Antenna type	2x2
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN interface type	Gigabit Ethernet
Frequency band	5 GHz
Ports & interfaces
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
Cabling technology	10/100/1000Base-T(X)
Management features
Web-based management	Yes
LED indicators	Power
Features
Product type	Network bridge
Reset button	Yes
International Protection (IP) code	IP65
LED indicators	Power
Product colour	White
Mounting type	Pole
Power
Power source type	DC, PoE
DC input voltage	12 V
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	24 V
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, FCC, RoHS
Technical details
Product colour	White
Weight & dimensions
Width	224 mm
Depth	79 mm
Height	60 mm
