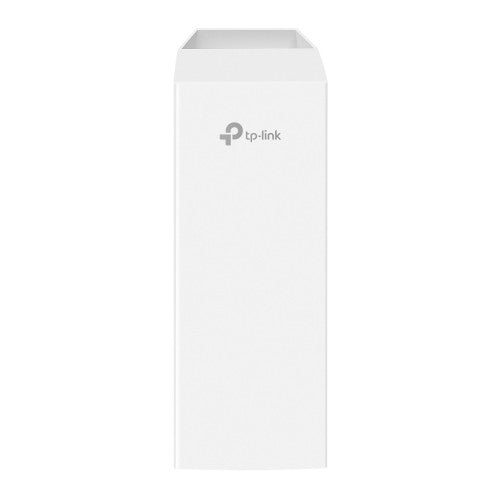

TP-Link Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point

5 GHz / 867 Mbps, 3x Gigabit LAN, 12V DC / 24V Passive PoE, 224 x 79 x 60 mm

Key Features

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
• Ideal for long-range wireless transmission up to 5 km
• Auto-pairing and agile LEDs for efficient deployment
• 3 × Gigabit Ethernet ports for more high-speed IP camera connections
• Supports Omada SDN for remote and centralized management
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
• Supports Passive PoE for flexible deployment (adapter included)

Description

Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point

- Long-Distance Transmission
- Auto-Pairing
- Agile LEDs for Easy Deployment
- 3× Fast Ethernet Ports
- 12V DC/Passive PoE
- IP65 Weatherproof & 6 KV Lightning Protection
- Omada Centralized Cloud Management
- Passive PoE Adapter Included

5-km Long-Distance Wi-Fi Transmission

Easy and Simple Deployment

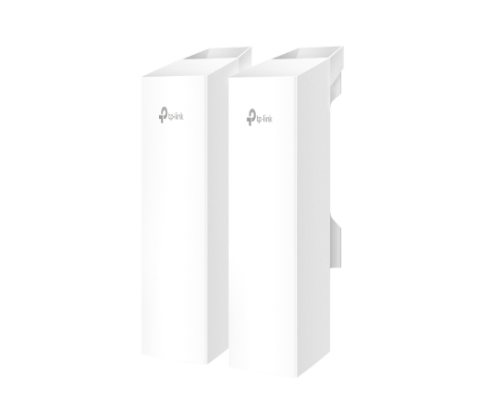

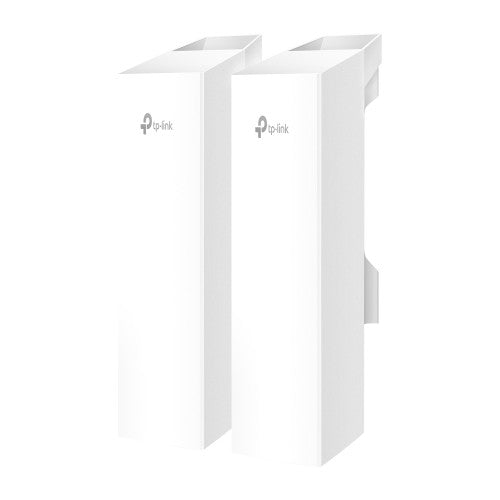

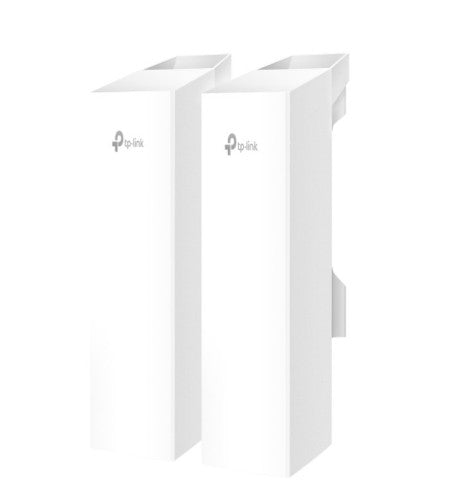

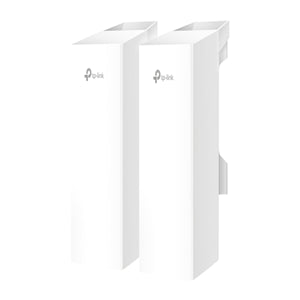

Point-to-Point Connection, Perfect for Surveillance

Seamless Integration into Omada SDN

Specifications

Performance
2.4 GHz	No
5 GHz	Yes
Syslog	Yes
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Certification	CE, FCC, RoHS
MIMO type	Multi User MIMO
MIMO	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
2.4 GHz	No
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Transmitting power (FCC)	<22dBm (5 GHz band1/4)
Transmitting power (CE)	<23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP)
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (5 GHz)	867 Mbit/s
BeamForming	Yes
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering	Yes
Access Control List (ACL)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Syslog	Yes
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0

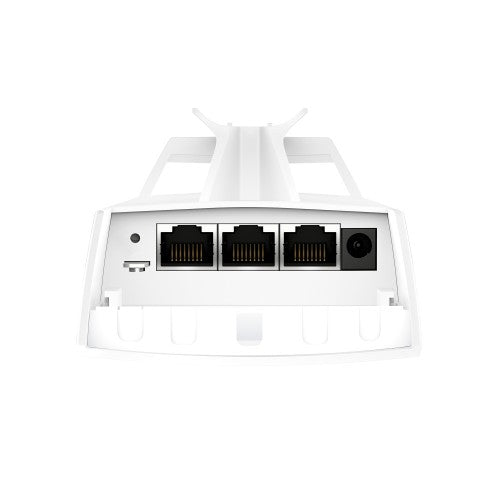

Ethernet LAN (RJ-45) ports	3
Cabling technology	10/100/1000Base-T(X)
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
DC voltage range	12 V
Design

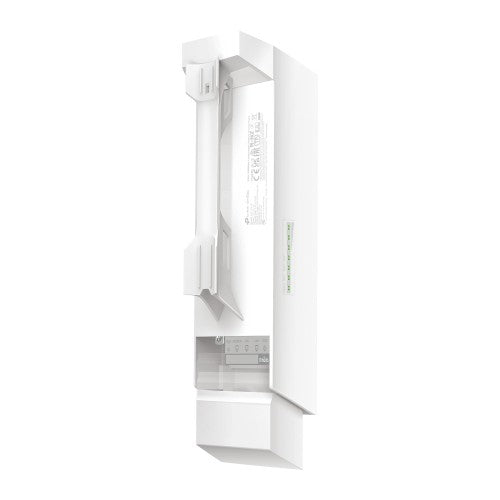

Placement	Pole
Reset button	Yes
LED indicators	Yes
Product colour	White
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Polarization	Dual polarization
Antenna gain level (max)	11 dBi
Antenna direction type	Directional
Antenna features	Integrated antenna
Certificates
Certification	CE, FCC, RoHS
Software
Access Control List (ACL)	Yes
Weight & dimensions
Width	224 mm
Depth	79 mm
Height	60 mm
Weight	330.9 g
Packaging data
Quick start guide	Yes
Packaging content
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Other features
Polarization	Dual polarization
