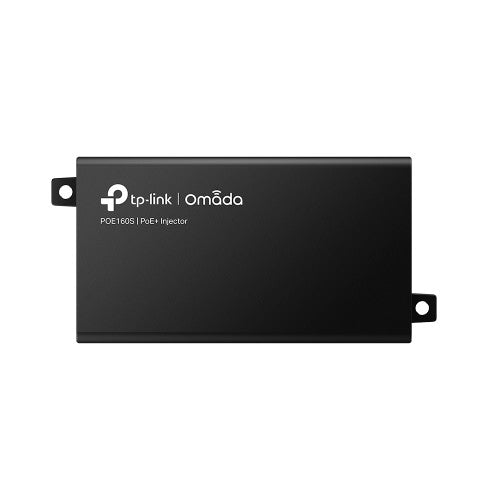

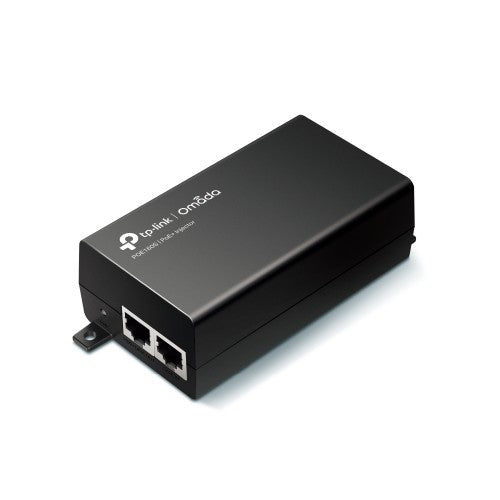

TP-Link Omada PoE+ Injector

PoE+, 10/100/1000Mbps RJ45 In, 10/100/1000Mbps RJ45 Out, 125×59.4×36.8 mm

Key Features

• 2 Gigabit ports ensure faster transmission
• Complies with IEEE802.3af/at standards, supplies up to 30 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

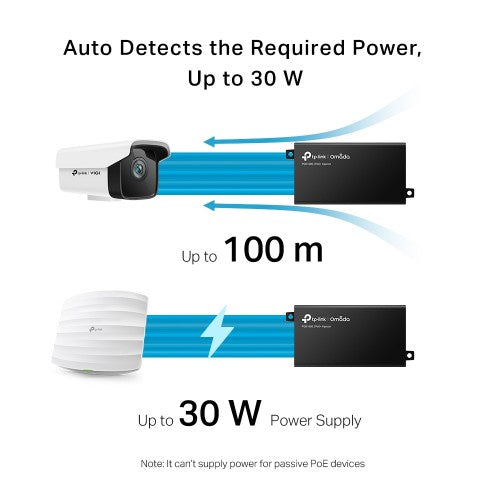

• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation, requires no configuration
• Integrated power supply

Description

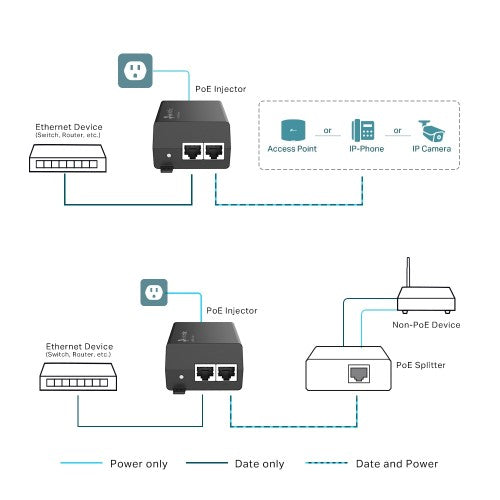

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specifications

Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Features
Wall mountable	Yes
Plug and Play	Yes
Maximum operating distance	100 m
Product colour	Black
LED indicators	Power
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Package type	Box

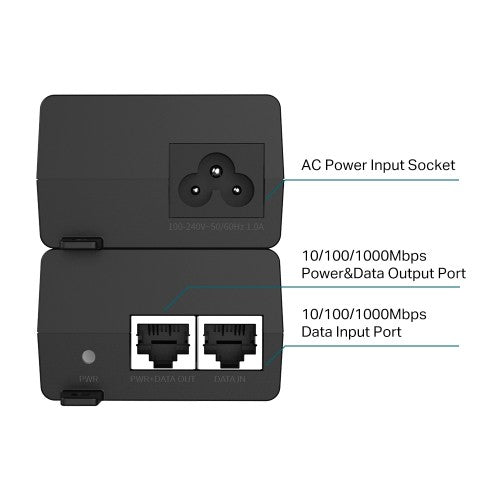

Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output power	30 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	125 mm
Depth	59.4 mm
Height	36.8 mm
Packaging content
Power cord included	Yes
Quick installation guide	Yes
Number of products included	1 pc(s)
Wall mounting kit	Yes
Package type	Box
Packaging data
Package type	Box
Technical details
Power over Ethernet (PoE)	Yes
Number of products included	1 pc(s)
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Indication
LED indicators	Power
