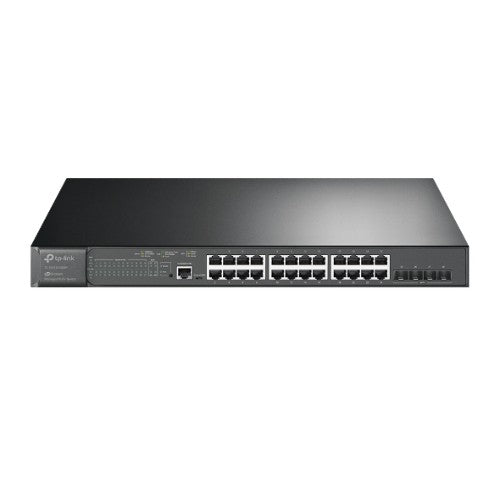

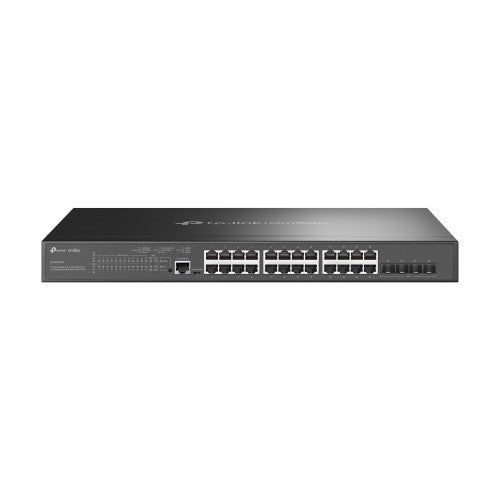

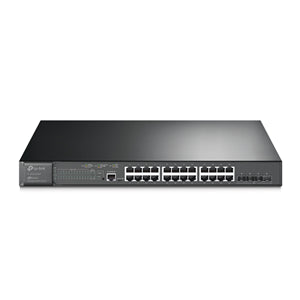

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

24× 10/100/1000 Mbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 128 Gbps, 16 K MAC, 9 KB Jumbo, 440×330×44 mm

Key Features

• 4× 10 Gbps SFP+ slots
• 24× Gigabit 802.3af/at PoE+ ports
• 384 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
Switch layer	L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB
Gigabit Ethernet (copper) ports quantity	24
Power connector	AC-in jack
Network
Active link detection	Yes
Networking standards	IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
Number of VLANs	4000
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
10G support	Yes
Policy-based routing	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Number of static routes	48
Jumbo frames support	Yes
Packet buffer memory	12 MB
Forwarding rate	95.23 Mpps
Number of VLANs	4000
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Number of fans	2 fan(s)
Power
Power consumption (max)	486.2 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	384 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1658.78 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Quick start guide	Yes
Cables included	LAN (RJ-45)
Performance
Packet buffer memory	12 MB
Packaging data
Quick start guide	Yes
Cables included	LAN (RJ-45)
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
