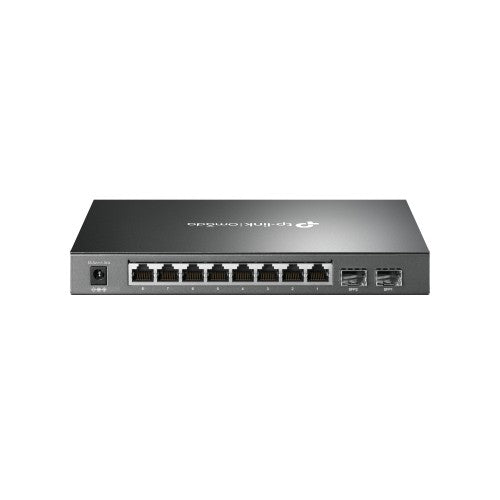

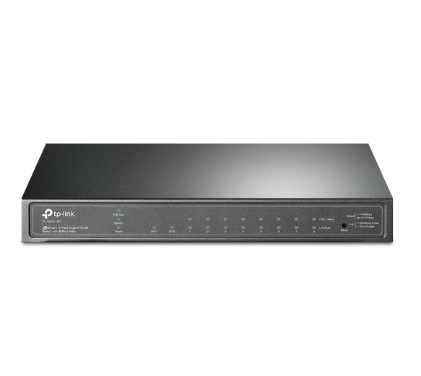

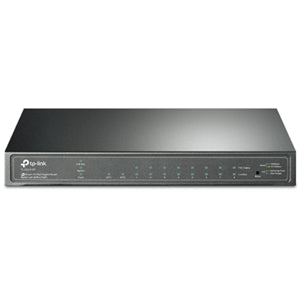

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

8× 10/100/1000Mbps PoE+ RJ45, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm

Key Features

• 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
• 61 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2/L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	14.88 Mpps
Multicast Listener Discovery (MLD) snooping	Yes
Security
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Static port security	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Design
Product colour	Black
LED indicators	Yes
Certification	CE, FCC, RoHS
Performance
Firmware upgradeable	Yes
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Power
Power consumption (max)	77.8 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	DC/PoE
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
Manual	Yes
Cables included	AC
IPv4 & IPv6 features
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Certificates
Certification	CE, FCC, RoHS
Packaging data
Manual	Yes
Cables included	AC
