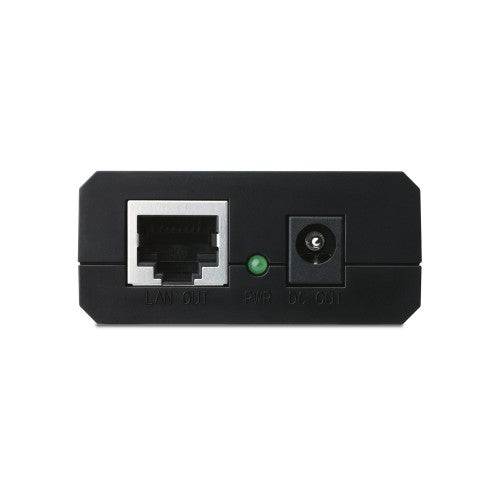

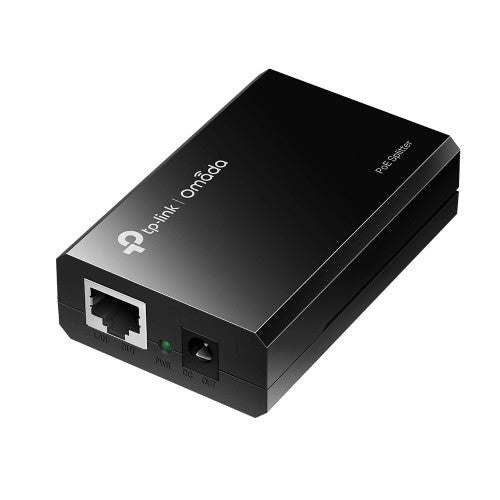

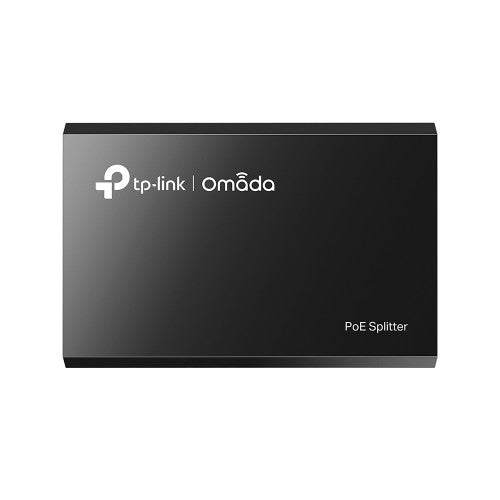

TP-Link Omada PoE Splitter

2× 10/100/1000Mbps RJ45, 100m max, 80.8x54x24 mm

Key Features

• IEEE 802.3af compliant

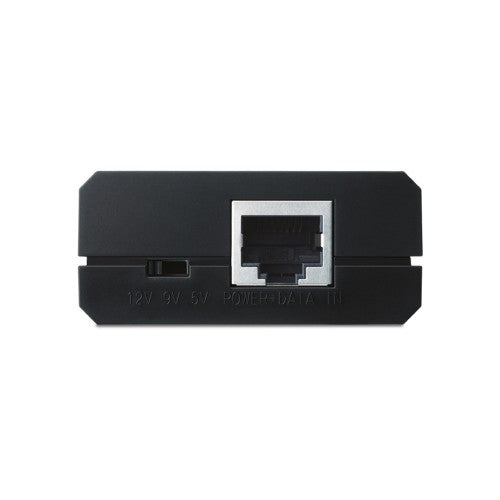

• Selectable power output
• Gigabit speed support
• Plug-and-Play, no configuration required

Description

The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specifications

Features
LED indicators	Power
Plug and Play	Yes
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Product colour	Black
Certification	FCC, CE
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
DC-out jack	Yes
Ethernet LAN (RJ-45) ports	2
Operational conditions
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	FCC, CE
Weight & dimensions
Width	80.8 mm
Height	24 mm
Depth	54 mm
Packaging content
Quick installation guide	Yes
Quantity per pack	1 pc(s)
Package type	Box
Packaging data
Package type	Box
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Power over Ethernet (PoE)	Yes
Performance
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Design
LED indicators	Power
Certification	FCC, CE
Plug and Play	Yes
Product colour	Black
Power
Power over Ethernet (PoE)	Yes
Input voltage	5, 9, 12 V
Technical details
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Colour
Product colour	Black
Logistics data
Quantity per pack	1 pc(s)
