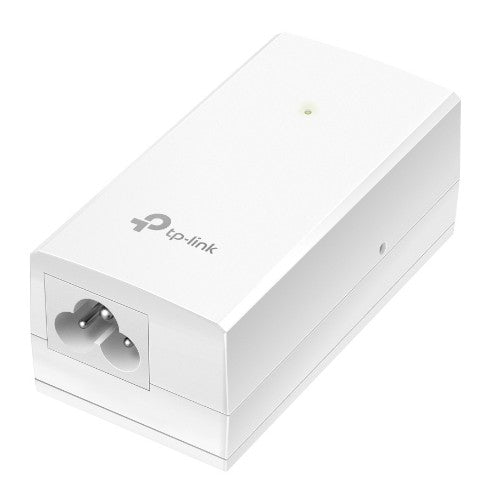

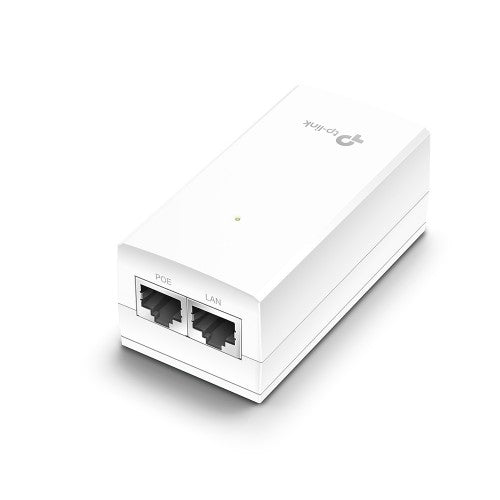

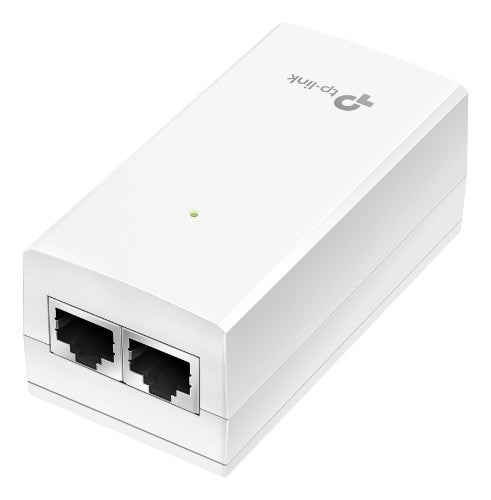

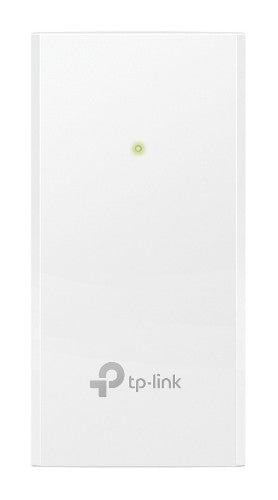

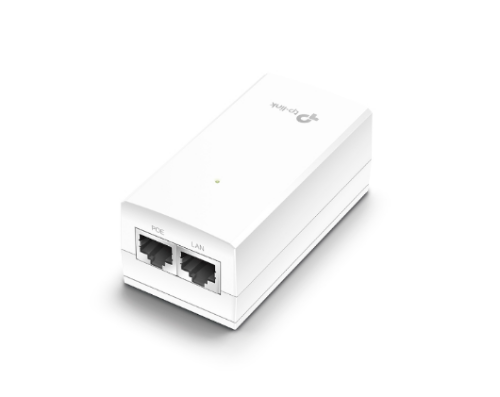

TP-Link Omada TL-POE4818G Gigabit Ethernet 48 V

48V 18W Passive PoE Adapter

Key Features

• 48V passive PoE supported
• Auto-determine the necessary power requirements
• Convenient wall-mounting design
• Gigabit speed support
• Plug-and-Play, requires no configuration

Description

Passive PoE Adapter
Powers TP-Link products that support 48V passive PoE

Power Your Devices
Use the passive PoE adapter POE4818G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
POE4818G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
POE4818G is recommended to offer power supply to TP-Link’s passive PoE products which as follows.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Power over Ethernet (PoE) type supported	Passive PoE
Power over Ethernet (PoE) voltage	48 V
Features
Wall mountable	Yes
Easy to install	Yes
Plug and Play	Yes
Maximum operating distance	100 m
Product colour	White
LED indicators	Power, Yes
Package type	Box
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output power	18 W
Total Power over Ethernet (PoE) budget	18 W
Power over Ethernet (PoE) voltage	48 V
AC adapter input voltage	100-240 V
AC adapter frequency	50-60 Hz
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	85.8 mm
Depth	43.9 mm
Height	35 mm
Packaging content
Power cord included	Yes
Number of products included	1 pc(s)
Package type	Box
Packaging data
Package type	Box
Technical details
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	32 - 104 °F
Number of products included	1 pc(s)
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators	Power, Yes
