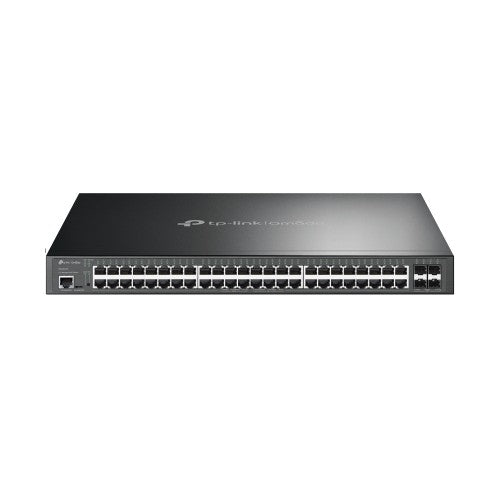

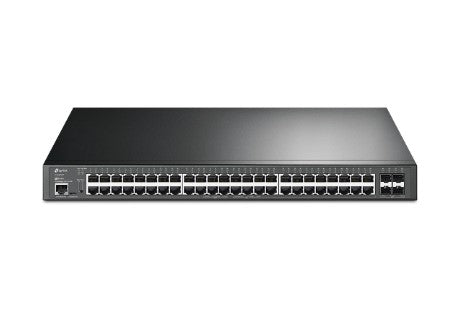

TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

48x 10/100/1000 Mbps RJ45 PoE+, 4x 10G SFP+ Slots, 1x RJ45, 1x Micro-USB, 176 Gbps, MAC 16 K, 440 × 330 × 44 mm

Key Features

• 4× 10 Gbps SFP+ slots
• 48× Gigabit 802.3af/at PoE+ ports
• 500 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
Reset button	Yes
ARP inspection	Yes
Switch layer	L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	12 MB
Forwarding rate	130.9 Mpps
Security
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	Auto VLAN, Guest VLAN
Static port security	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Number of fans	3 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	635.7 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	500 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	2169.2 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Quick start guide	Yes
Cables included	AC
Performance
Packet buffer memory	12 MB
Certificates
Certification	CE, FCC, RoHS
Packaging data
Quick start guide	Yes
Cables included	AC
