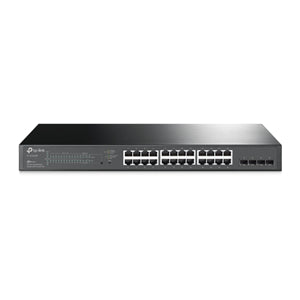

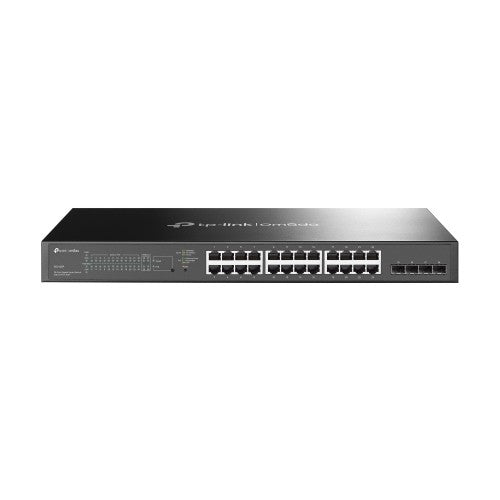

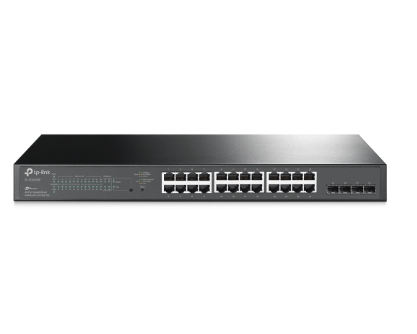

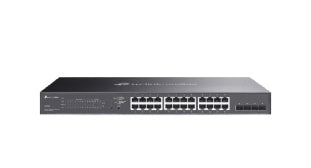

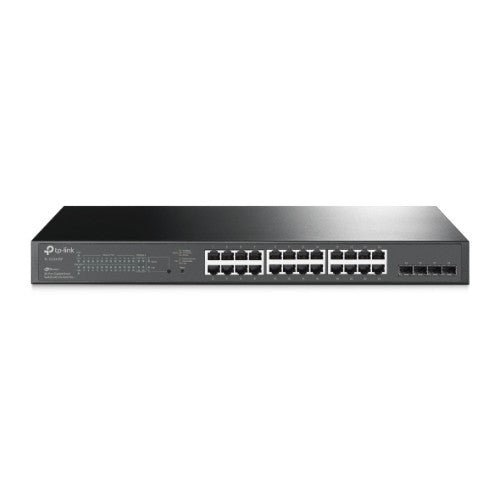

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

24× 10/100/1000 Mbps PoE+ RJ45, 4× Gigabit SFP Slots, 56 Gbps, 8K MAC, 9 KB Jumbo, 440×220×44 mm

Key Features

• 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
• 250 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and rackmountable design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2/L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4000
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping	Yes
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	41.66 Mpps
Number of VLANs	4000
Security
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Performance
Firmware upgradeable	Yes
Packet buffer memory	4.1 MB
Power
Power consumption (max)	301.1 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	250 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1052.94 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Certificates
Certification	CE, FCC, RoHS
Packaging data
Rack mount kit	Yes
User guide	Yes
Cables included	AC
