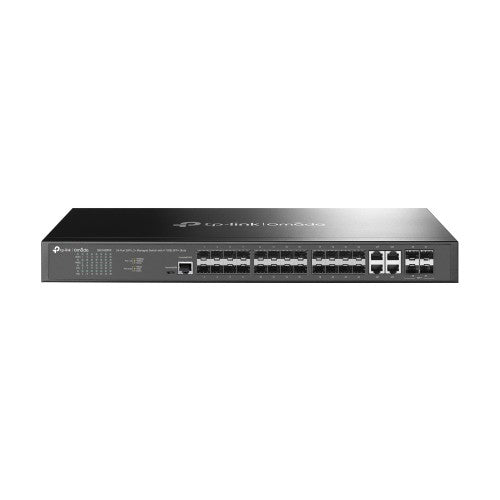

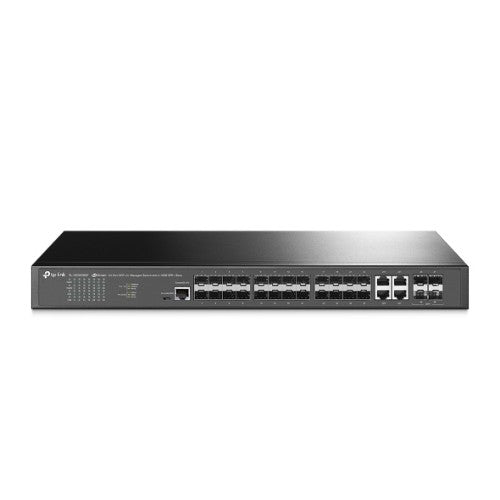

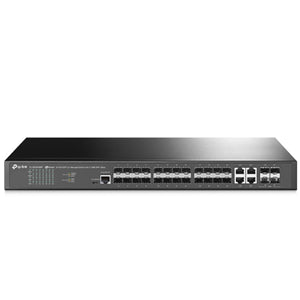

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

20x Gigabit SFP, 4x Gigabit SFP/RJ45 Combo, 4x 10G SFP+ Slots, 1x RJ45, 1x Micro-USB, 128 Gbps, 16 K MAC, 440 × 220 × 44 mm

Key Features

• 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
• 20× Gigabit SFP slots and 4× Gigabit Combo SFP/RJ45 ports
• 128 Gbps switching capacity
• Two power supplies backing each other up
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
ARP inspection	Yes
Switch layer	L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Combo SFP ports quantity	4
Console port	RJ-45/Micro-USB
Fiber ports quantity	20
Fiber optic connector	SFP, SFP+
Power connector	AC-in jack
Network
Active link detection	Yes
Networking standards	IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4000
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	512
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Broadcast storm control	Yes
10G support	Yes
Policy-based routing	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
IPv6 routes	48
IPv4 routes	48
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
IGMP proxy	Yes
Data transmission
Jumbo frames	9000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Store-and-forward	Yes
Number of static routes	48
Jumbo frames support	Yes
Packet buffer memory	12 MB
Static route	Yes
Forwarding rate	95.23 Mpps
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
Authentication type	AAA, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
IGMP proxy	Yes
DHCP features	DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Number of fans	1 fan(s)
Power
Power consumption (max)	35.7 W
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	121.81 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Manual	Yes
Cables included	AC
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Optical fiber
Fiber optic connector	SFP, SFP+
Performance
Packet buffer memory	12 MB
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Packaging data
Rack mount kit	Yes
Manual	Yes
Cables included	AC
Other features
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
