TP-LINK

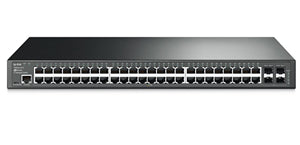

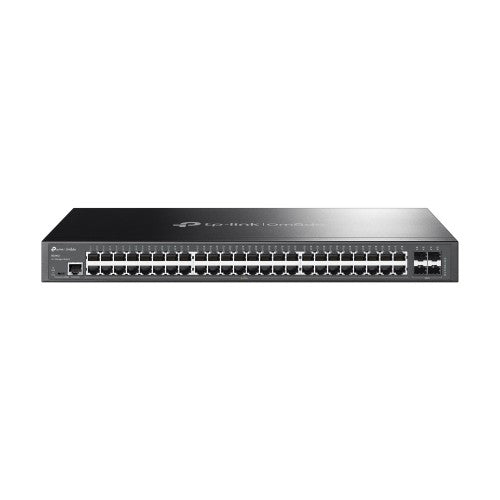

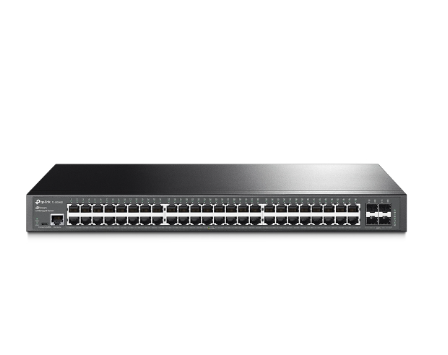

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Regular price
$709.69 AUD
Regular price
Sale price
$709.69 AUD
Unit price
per
Use the contact form below to check availability.
48× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, RJ45 / Micro-USB Console Ports, 104 Gbps, 77.38 Mpps, MAC 16K, 440×220×44 mm
Key Features
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/Micro-USB |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Number of VLANs | 4000 |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IPv6 routes | 48 |
| IPv4 routes | 48 |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 77.38 Mpps |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| Certification | CE, FCC, RoHS |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | Yes |
| Power | |
| Power consumption (max) | 34.86 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 118.94 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
