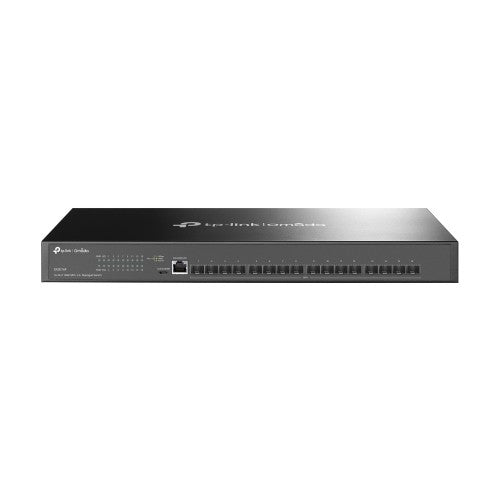

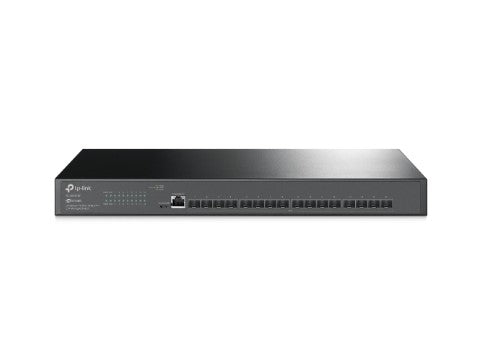

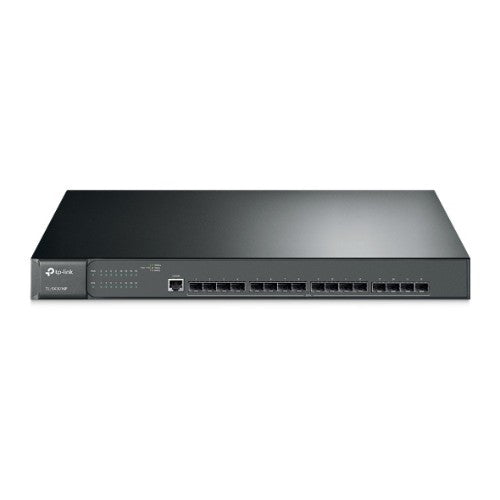

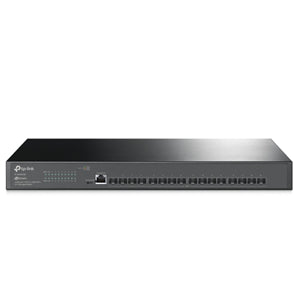

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch

16× 10G SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 320 Gbps, 32 K MAC, 9 KB Jumbo, 440×220×44 mm

Key Features

• 16× 10 Gbps SFP+ slots
• 320 Gbps switching capacity
• Two power supply modules back each other up
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
Traffic classification	Yes
ARP inspection	Yes
Switch layer	L2+/L3
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	16
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
Number of VLANs	4000
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	32000 entries
Switching capacity	320 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	24 MB
Static route	Yes
Forwarding rate	238.08 Mpps
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting	Yes
Product colour	Black
LED indicators	Yes
Certification	CE, FCC, RoHS
Power
Power consumption (max)	32.74 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.71 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Manual	Yes
Cables included	AC
Packaging data
Package type	Box
Rack mount kit	Yes
Quick start guide	Yes
Manual	Yes
Cables included	AC
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Performance
Packet buffer memory	24 MB
Certificates
Certification	CE, FCC, RoHS
